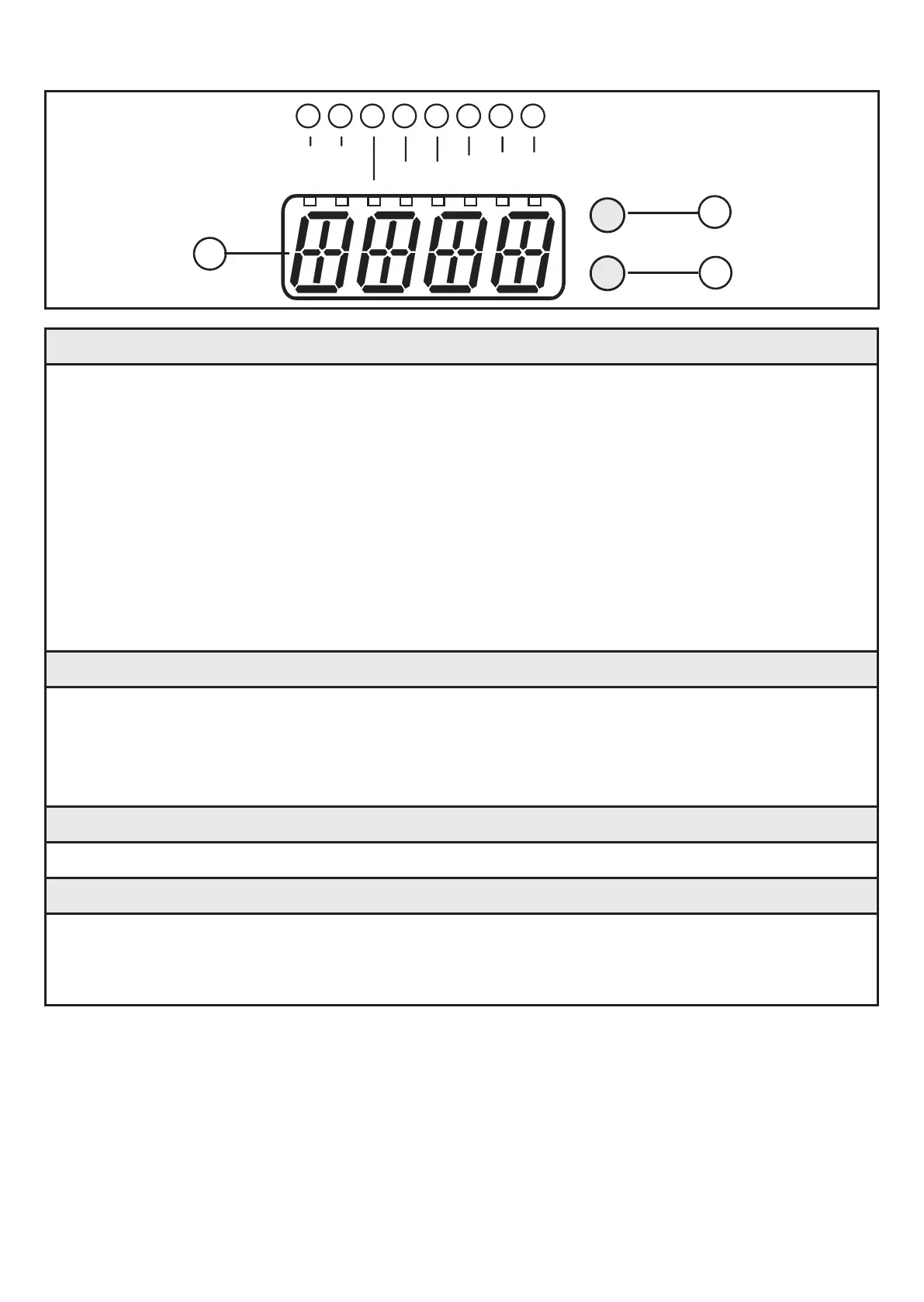

7 Operating and display elements










 






     


1 to 8: Indicator LEDs
- LED 1 = current volumetric flow in litres/minute�
- LED 2 = current volumetric flow in cubic metres/hour�
- LED 3 = current consumed quantity since the last reset in litres�
- LED 3 flashing = consumed quantity before the last reset in litres�
- LED 4 = current consumed quantity since the last reset in cubic metres�
- LED 4 flashing = consumed quantity before the last reset in cubic metres�
- LEDs 4 and 6 = current consumed quantity since the last reset in 10
3
cubic metres�
- LEDs 4 and 6 flashing = consumed quantity before the last reset in 10
3
cubic metres�
- LED 5 = current medium temperature in °C�
- LED 7, LED 8 = switching state of the corresponding output�
9: Alphanumeric display, 4 digits
- Indication of the current volumetric flow (if [SELd] = [FLOW] is set)�
- indication of the meter count (if [SELd] = [TOTL] is set)�
- indication of the current medium temperature (if [SELd] = [TEMP] is set)�
- indication of the parameters and parameter values�
10: Mode/Enter pushbutton
- Selection of the parameters and acknowledgement of the parameter values�
11: Set pushbutton
- Setting of the parameter values (scrolling by holding pressed, incremental by pressing
briefly)�
- Change of the display unit in the normal operating mode (Run mode)�
