1
7
6
3
3
4
5

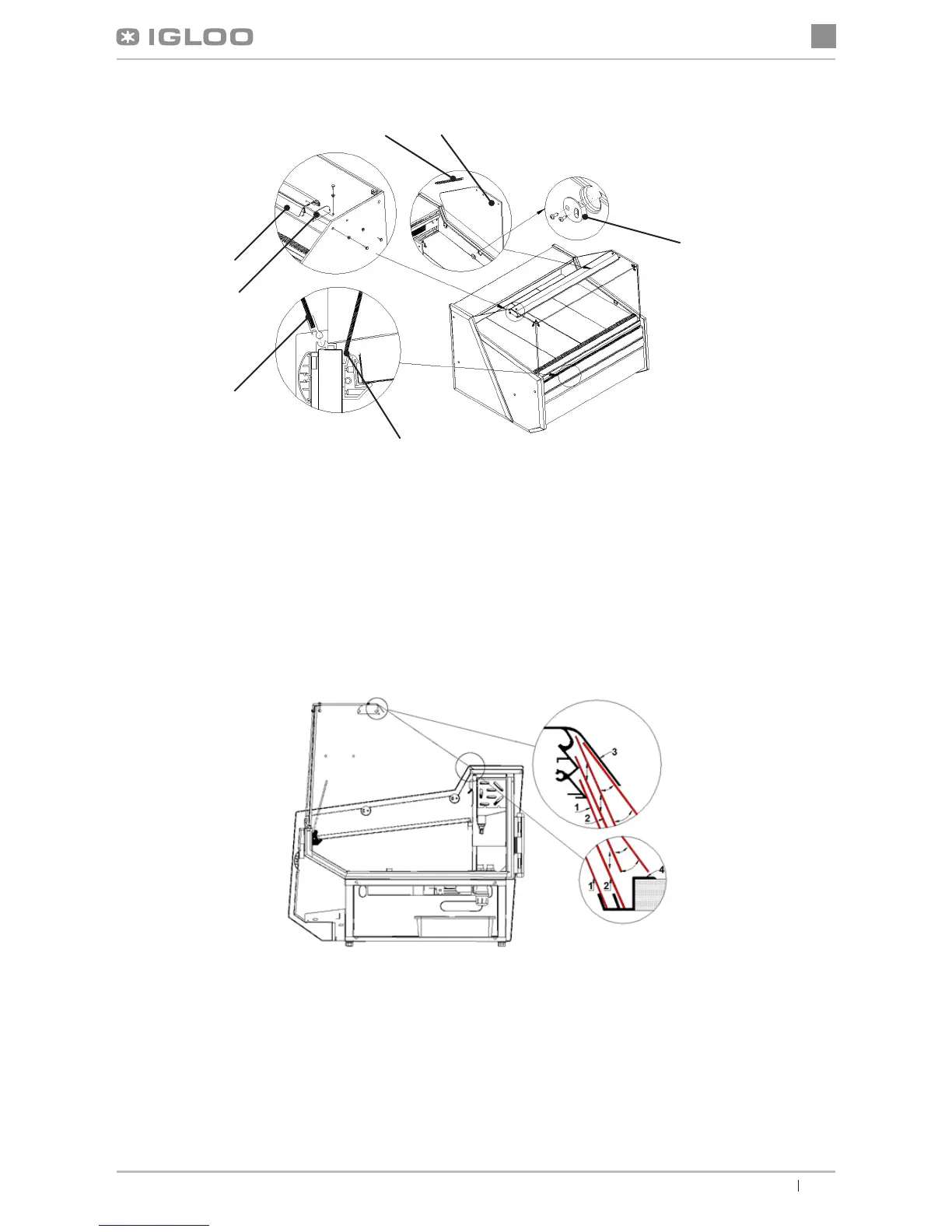

Fig. 4. Installation of glass components and aluminum lamp
1 – Glass clamp (glass side).
2 – Front screen, glass.
3 – Front glass.
4 – Aluminum lamp cap.
5 – Aluminum lamp.
6 – Lamp cable shield.
7 – Glass side.
Fig. 5. Assembly/disassembly of night shutters
1 – Bottom night shutter (short) – rst to be installed
2 – Top night shutter (long) – second to be installed
3 – „Blade” of the aluminum lamp (masks and protects the night shutters before falling out)
4 – Guide for night shutters (aluminum prole)
