User manual Luzon, Luzon Deep www.igloo.pl

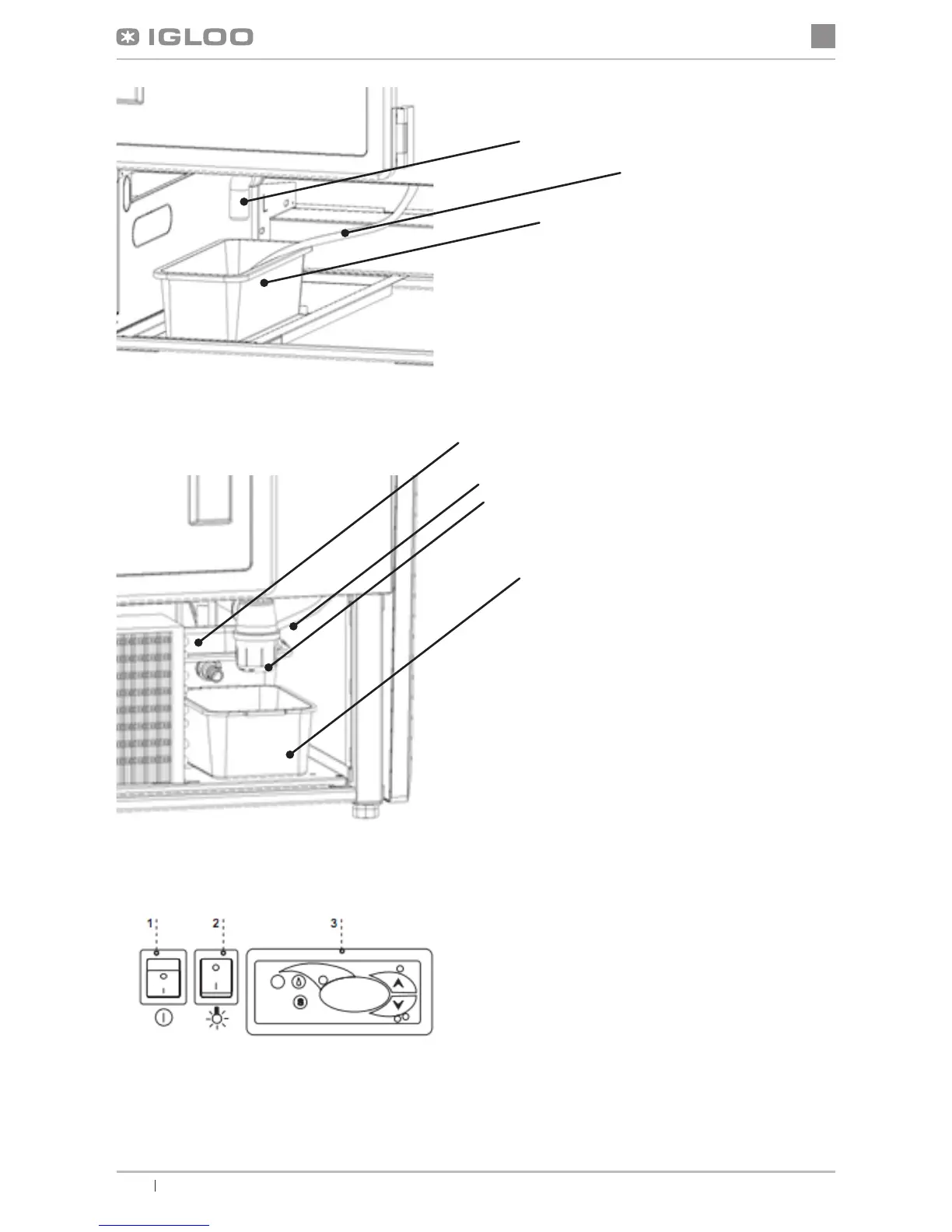

Fig.8 Control panel of the device
1 - Main switch (turns on/off the aggregate of the
device)
2 – Lighting switch
3 - Thermostat (temperature regulator) panel
(service details in Chapter No. 7 p. 26 or 27)
Fig.6 Condensate container (version without
evaporator)
1 – Water outlet from the body of the device (water-
-sealed)
2 – Rail water outlet hose
(condensate outow after defrosting the evapo-
rator)
3 - Condensate container (empty the condensate!!!)
Fig.7 Overow (version with evaporator)
1 – Water outlet from the body of the device (water-
-sealed)
2 – Rail water outlet hose (condensate outow after
defrosting the evaporator)
3 – Overow (it is necessary to empty the condensa-
te, when water overows the evaporator container!)
4 - Evaporator
2
1
3
4
1
2
4
