• Cooling coil:
When the set temperature close to the ambient temperature, the cooling coil should be used for counter-cooling due
to the self-heating�
Connect the water supply and return line hoses to the cooling coil connectors (see Fig. 2)�
For bath temperatures > 95 °C do not use the cooling coil with water�
For bath temperatures > 60 °C make sure that the flow rate through the cooling coil is high enough, to avoid exces-
sive calcification�
• Charging the Battery Pack RB 1 (rechargeable battery):
The battery pack of the WiCo can be charged by any of the following means:
- On the station
- Via a USB cable at the PC or station
- Via an OS 1.0 power supply unit.
1




Fig. 13

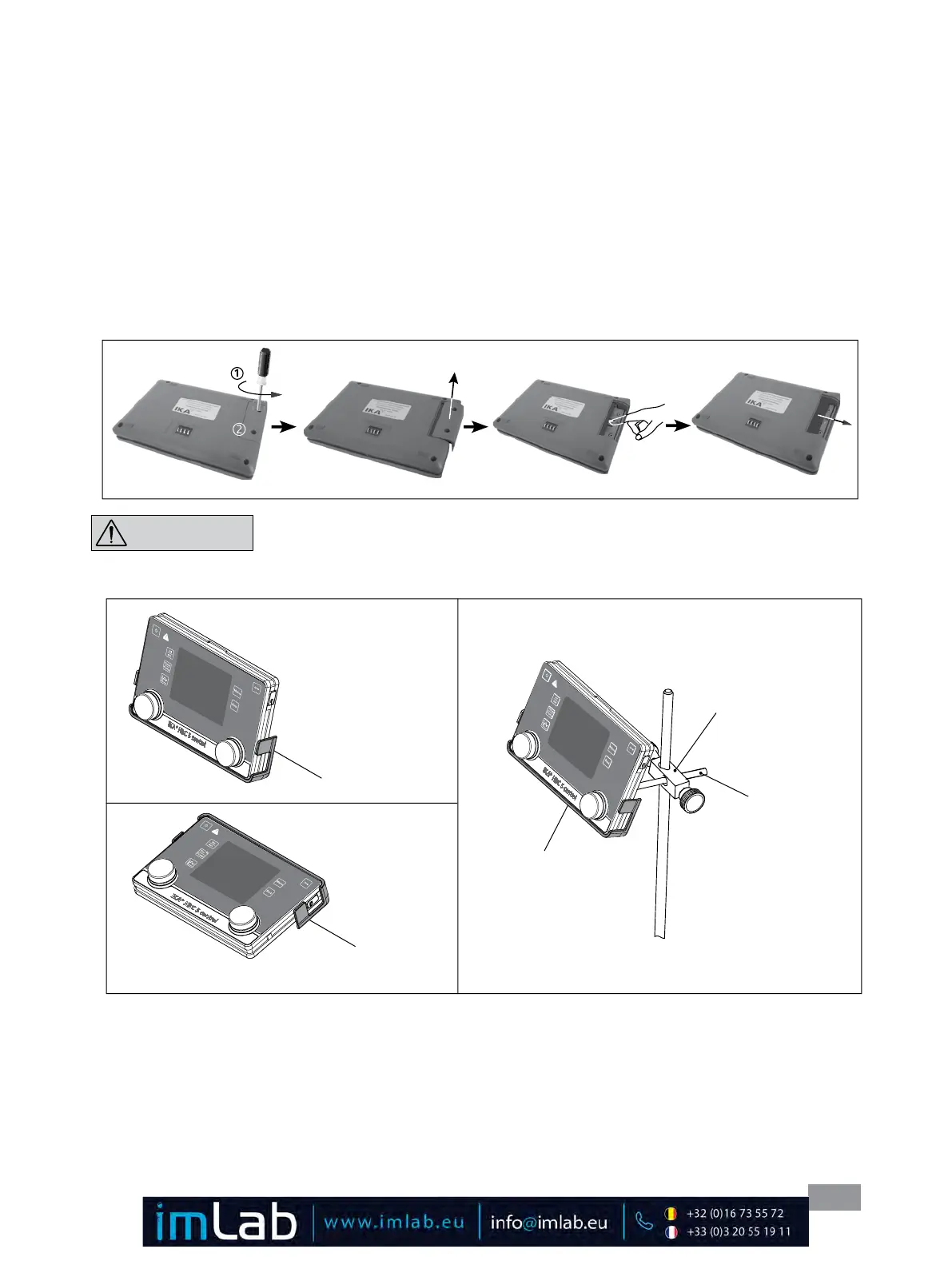

• WiCo – holder WH 10:
WiCo – holder WH 10
WiCo – holder WH 10
Fig. 14
WiCo – holder WH 10
H 44 Boss head clamp
H 38 Holding rod
NOTICE
• Changing battery to WiCo:
Please comply with the relevant safety instructions in the "Safety instructions" section for
the RB 1 battery pack!
IKA
®
HBC 5
control
IKA
®
HBC 5
control
IKA
®
HBC 5
control
