ILMOR MV8 570 - Boat;Engine Interface Wiring

INTRODUCING ILMOR’S HIGH-PERFORMANCE ENGINES
Ilmor High-Performance Marine, LLC
© 7/2013, Version 1.0
2-5

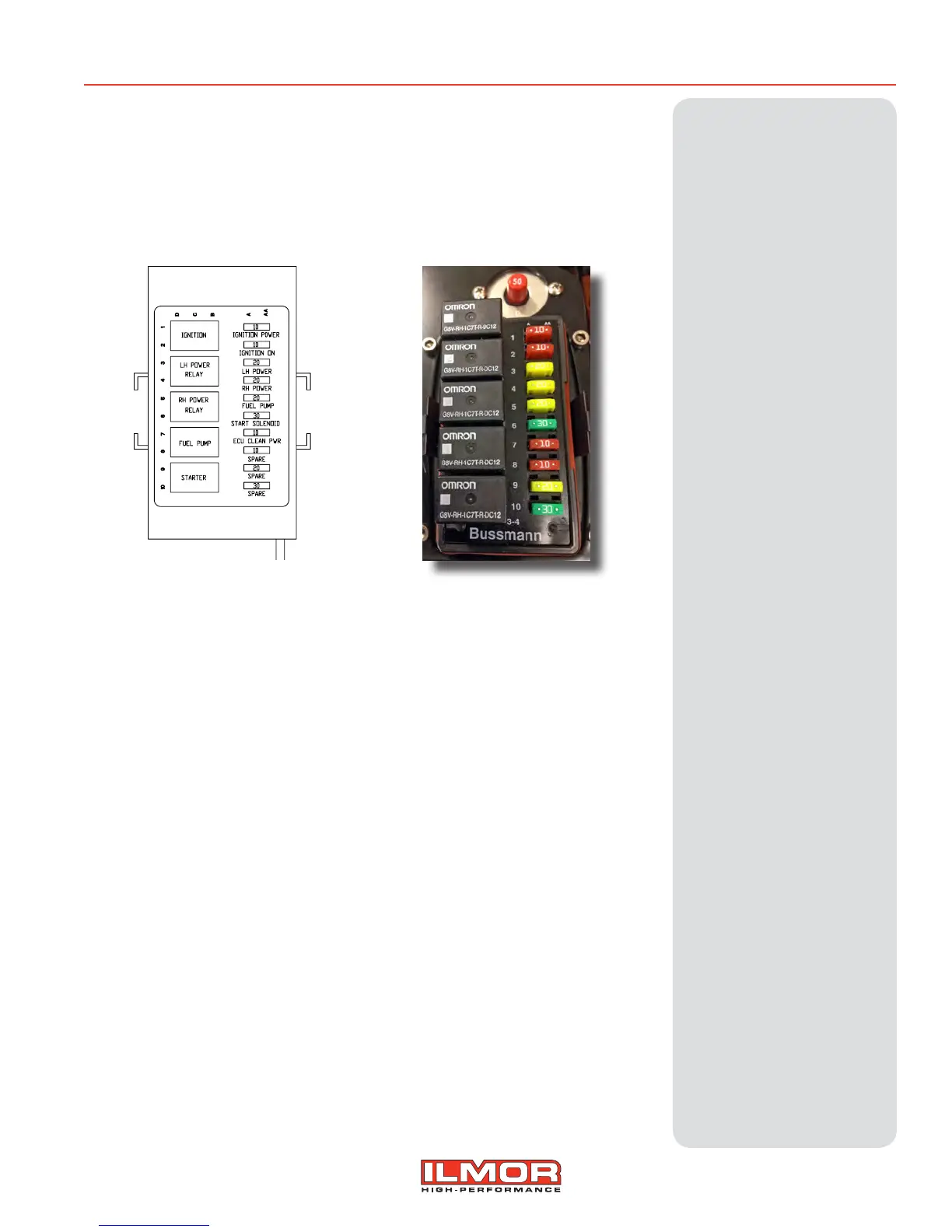

MV8-570 Fuse Box
In addition to circuit breakers in the boat that may impact the engine
functionality or ancillary equipment and electronics that borrow power
from the engine, the engine is also equipped with a fuse box that adds
control over various electronic func tions of the engine. e fuse box is
mounted on the rear of each MV8 engine.
Boat/Engine Interface Wiring
WARNING! Never realign the wiring or in any way alter the wiring
of the Ilmor High-Performance Marine engine. e electrical
system of the engine is primarily self-contained in a preassembled
unit. e interface with boat wiring follows established practices and
conforms to regulatory guidelines. Every reasonable eort has been
made to make the electrical connection simplied and straightforward.
Consumers are strongly encouraged to seek assistance from
authorized Ilmor High-Performance Marine service centers when dealing
with electrical issues.
