4. Check the wear on the inside grooves and replace as necessary.
5. To install a new belt or to reinstall the existing belt, wrap the belt
around the pulleys as shown, and use a 15 mm socket to rotate the
tensioner to its maximum travel. is should allow enough slack to
slide the belt over the smooth, water pump pulley.
6. Ease the tensioner back into place and ensure that the belt is properly
wrapped around all of the pulleys.
REPLACE THE ZINC ANODES (SALTWATER
APPLICATIONS)
1. Locate the zinc anodes.
2. Using an 11/16 in. socket wrench, remove the zinc anode from the
lower end of the heat exchanger.
3. Inspect the anode for wear. If the anode exhibits signs of excess wear or
has reduced to half of its original size, it will need to be replaced.

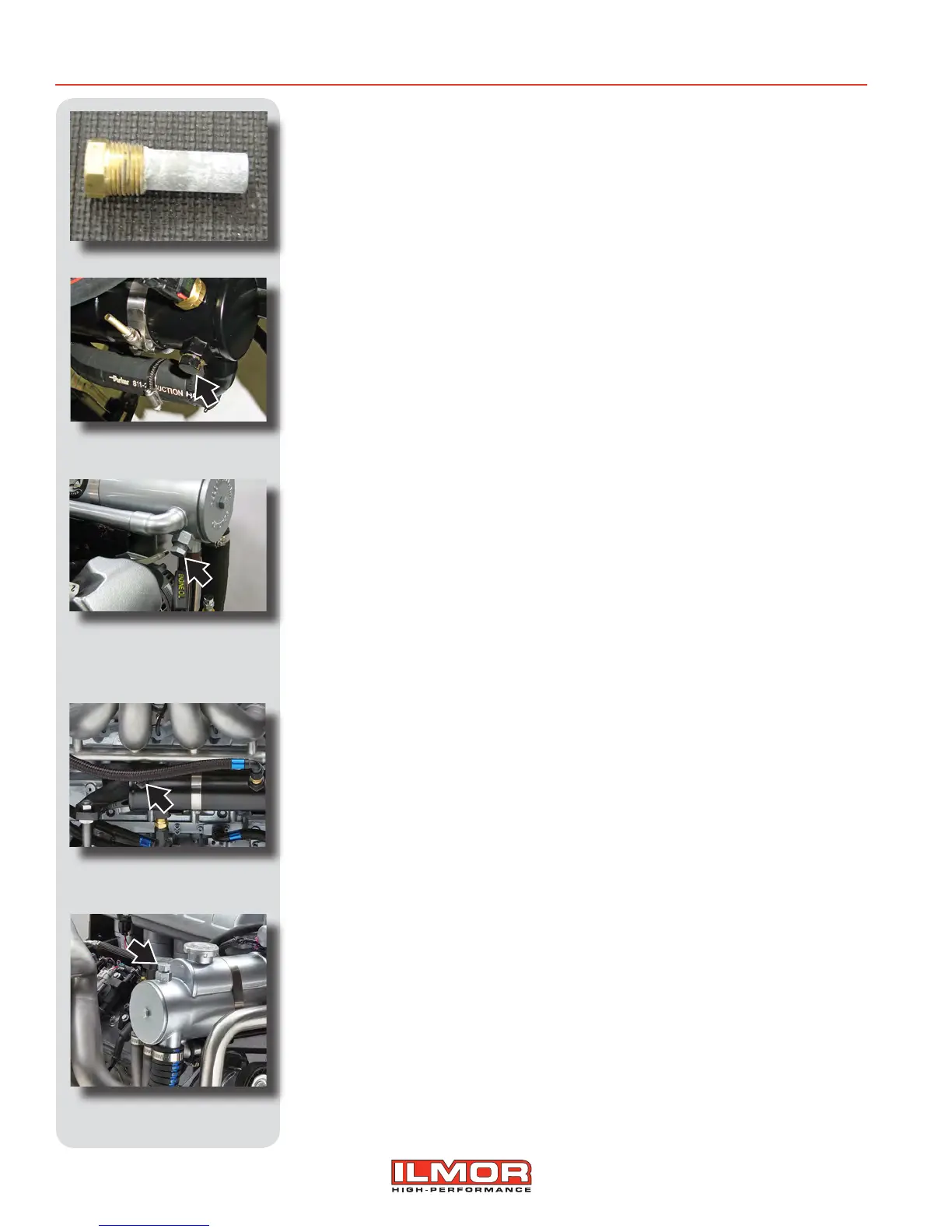

MV8-570
Oil Cooler Anode
MV8-570
Heat Exchanger Anode
MV10 Heat Exchanger
Anode (one each port
and starboard)
MV10 Oil Cooler Anode
To Next Page
