TRADUCTION OF THE ORIGINAL INSTRUCTIONS FOR USE
BS 400/60 AFI-Eing ED.2011 rev.00 24/60
In the meantime, try to find out the reason that caused the interruption and eliminate it.
15.8 - LOCKING / EMERGENCY LOCKING
It is possible to lock the cycle in any moment :
a - by the button STOP CYCLE-pos.21/dr.RI0055 the machine stops immediately , but there is also the possibility
to use the other controls, for instance to change the cycle type or the blade speed );
b - by the emergency button -pos.1/dr.RI0055. the cycle stops immediately and it is not possible to push other
controls before restoring it.
c - by the main switch -pos.13/dr.RI0464-.the energy of the machine is off.
d - by opening the cover blade, a safety stroke end stops the control circuit by causing the movements locking.
e - in case of electric energy interruption the sectionalising switch goes to 0 position and it is necessary to reset it
to start the machine again.

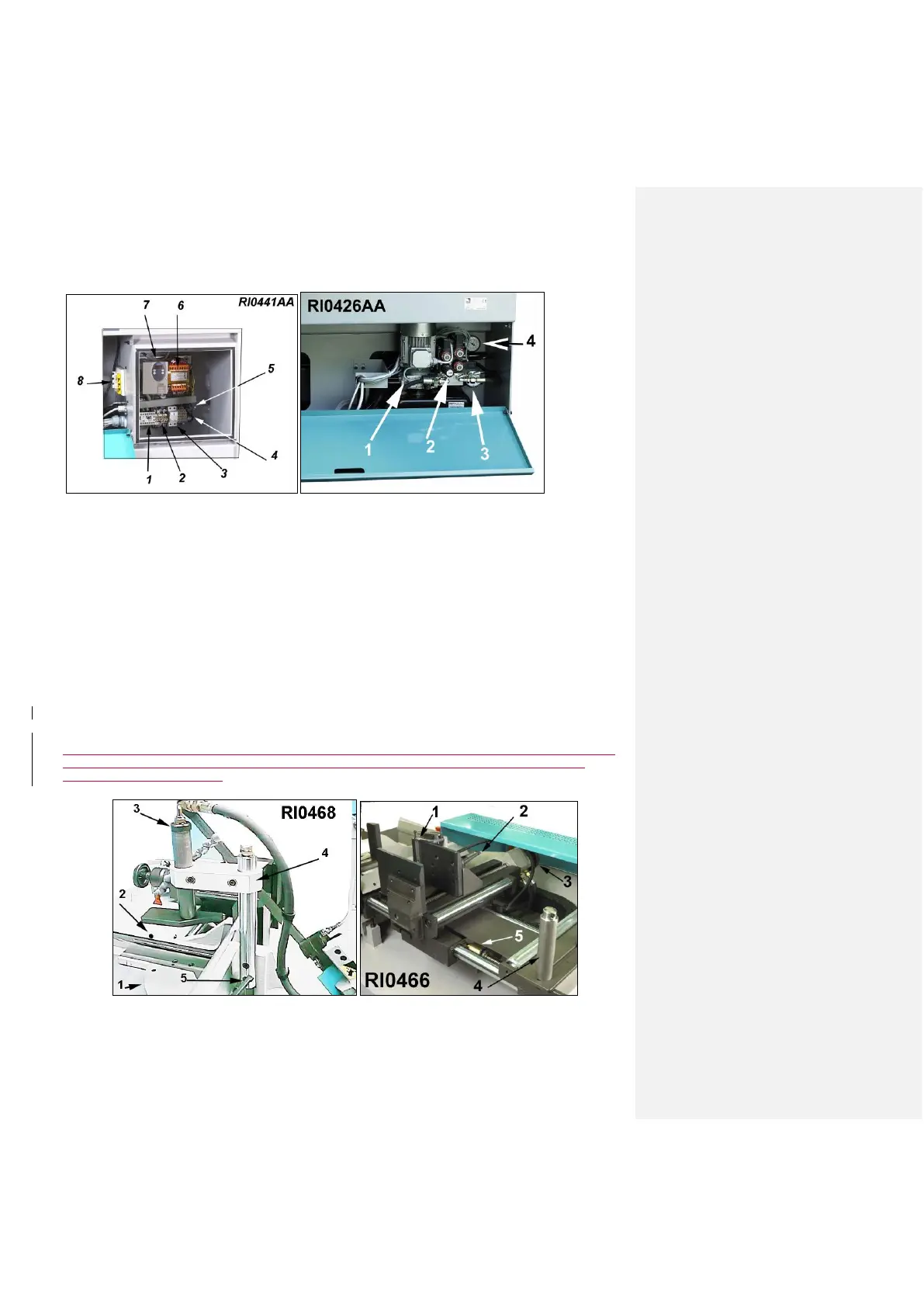

15.9 - HEAD ROTATION FOR OBLIQUE CUTTING
In semiautomatic cycle cutting to make cuts between 0° and 60° left it is necessary to unlock the lever-
pos.5./dr.RI0468- swivel the saw frame manually until reading on the scale-pos.1/dr.RI0468. the desired angle,
then lock again the lever.
f) Sbloccando la leva -pos.3/RI0137- sottostante l'avanzatore, interviene un finecorsa che arresta il ciclo di lavoro
automatico (in questo modo e' possibile correggere o cambiare la lunghezza di taglio gia' impostata, senza
interrompere il ciclo gia' avviato).
Predetermineted locks makes easier the search of the positions at 0 45 and 60° left. To go from an angle to another
it is better that there is no material on the work table or tightened into the vice.
15.10 - AUTOMATIC CUTTING SETTING
