TRADUCTION OF THE ORIGINAL INSTRUCTIONS FOR USE
BS 400/60 AFI-Eing ED.2011 rev.00 25/60
It is possible to carry out automatic cycles for cutting bars (by setting the number of pieces to cut and the repetition
of the feeder strokes) after having adjusted the positions of 'start' and 'end' of the controlled speed feed and after
having set the length of the feeder stroke. Operate as follows:
In order to carry out an automatic cutting cycle the feeder stroke has to be set. Proceed as follows:
Position the feeder jaw – pos. 1/RI0466 – about 2-3 mm far from the material, and make sure its cylinder is opened
by pushing simultaneously the buttons 4 and 18/RI0055. Lock with the upper handle – pos.2/RI0466.

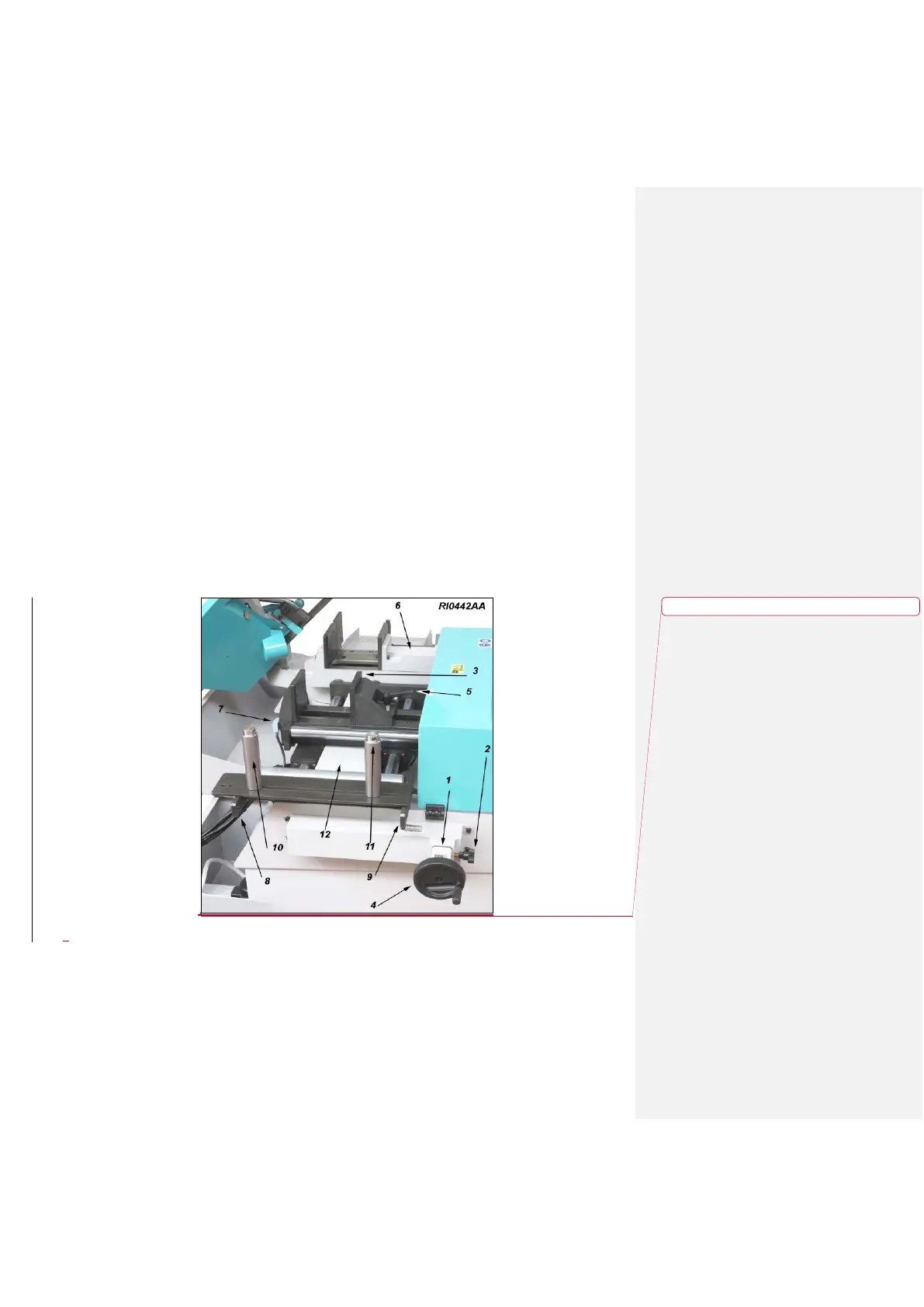

Setting up the feeder stroke: unlock the lateral wheel – 2/RI0442 – then rotate it – pos. 4/RI0442 – to set up the
correct cutting length, which can be any between 4 and 515 mm, with single stroke. Each complete turn of the
wheel corresponds to a 5-mm shift, making also very easy the adjustment of the decimal values. After reaching the
desired cutting length, lock the wheel – 2/RI0442. In order to compensate possible plays on the transmission, reach
the correct cutting length by rotating the wheel clock-wise.
Note: when setting up the correct feeder stroke, the breadth of the cut caused by the blade – about 1.5 mm
with the original blade – has to be taken into account and added to the cutting length. In case more than
one feeder strokes (selection by means of the keyboard) are required, you must divide it by the number of
strokes to get the correct length to set up.
Example: cutting length required = 1500 mm; Scrap = 1.5 mm; Feeder strokes = 3;
1500 + 1.5 = 1501.5; 1501.5 : 3 = 500.5 = Correct cutting length to set up
After making the first cut, you can check the actual length of the material cut and possibly make an
adjustment by means of the wheel.
It’s recommended to always verify the actual length of the first cuts carried out. When changing the blade,
make a few cuts in order to check the breadth of the cut.
.
*Select the feeder strokes: while pushing F1 (26/RI0055), push repeatedly the buttons 13,14/RI0055 to increase
or 11,15/RI0055 to reduce the number, which appears on the display – from 1 up to 29. When releasing F1, the
number is memorized.
*Reset the piece counter: while pushing F3 (25/RI0055), push the button 12/RI0055. When releasing it, the
piece counter is set to zero.
* Push the Start button I (20/RI0055): the feeder moves to the required position, both vices close, the led by the
button I (20/RI0055) flashes, signaling that the automatic cycle can begin (STAND-BY).
