pipe, except the elbow leaving the splitter is insulated to reduce
heat loss from the pipe, thus preventing the formation of ue
gas condensate.
When installing the insulated pipes, a section clamp
with pin must be installed every 2 metres.
1.15 FLUE EXHAUST TO FLUE/CHIMNEY.
Flue gas exhaust does not necessarily have to be connected to a
branched type traditional ue. e ue exhaust can be connected
to a special LAS type multiple ue. Multiple and combined ues
must be specially designed according to the calculation method
and requirements of the standards, by professionally qualied
technical sta. Chimney or ue sections for connection of the
exhaust pipe must comply with requisites of technical standards
in force.
1.16 DUCTING OF EXISTING FLUES.
With a specic “ducting system” it is possible to reuse existing
ues, chimneys and technical openings to discharge the boiler ue
gases. Ducting requires the use of ducts declared to be suitable for
the purpose by the manufacturer. Follow the installation and user
instructions provided by the manufacturer and the requirements
of standards.

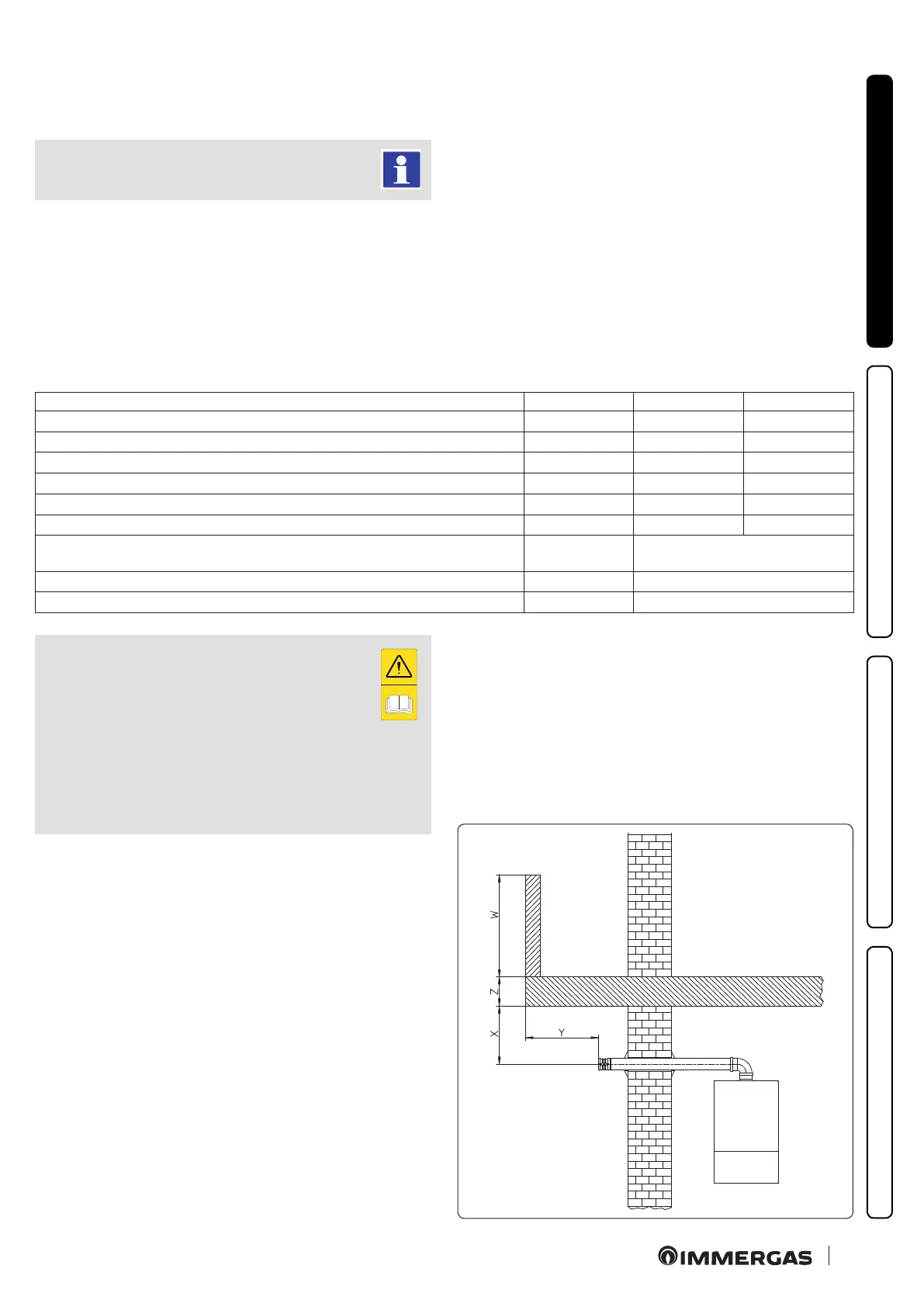

1.17 CONFIGURATION FOR C6 FLUE INSTALLATION.
Appliance designed to be connected to a commercial exhaust/
intake system.
Gas type G20 G31
Flue temperature at maximum output °C 128 128
Flue gas mass at maximum power kg/h 62 64
Flue temperature at minimum output °C 106 104
Flue gas mass at minimum power kg/h 66 64
CO
2
at Q. max.
% 6,9 7,6
CO
2
a Q. minimum % 2,6 3,1
Maximum head available at the ue at maximum power
(maximum resistance value of the commercial ue system)
Pa 117
Maximum head available at the ue at minimum power
Pa 117
Maximum temperature achievable in the exhaust ducts
°C 180
- Ducts must withstand condensation (only for con-
densing models);
- Air intake ducts must withstand working air tem-
peratures of up to 60°C;
- e maximum permissible percentage of ue gas
recirculation in windy conditions is 10%.
- Suction and exhaust pipes cannot be installed on opposing
walls;
- With ues in conguration C
6
discharge into pressurised
ues is not permitted.
