76
RO SKIE
1-7

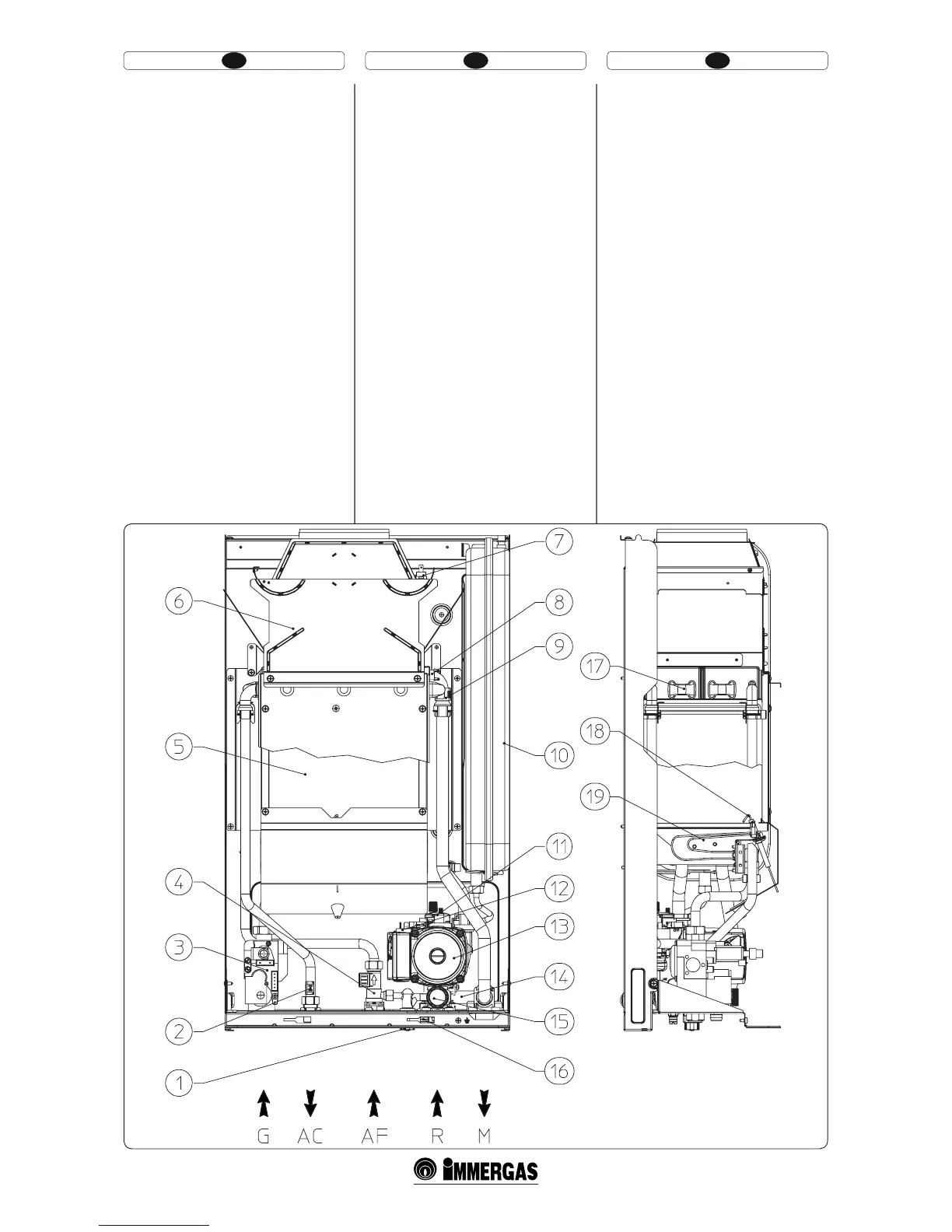

1.13 COMPONENTE CENTRALĂ . 1.13 BOILER COMPONENTS. 1.13 KOMPONENTY KOTLA.
Legendă (Fig. 1-7):
1 - Robinet umplere instalaţie
2 - Sondă menajer
3 - Supapă gaz
4 - Fluxostat menajer
5 - Cameră de combustie
6 - Hotă fumuri
7 - Termostat gaze arse
8 - Termostat siguranţă
9 - Sondă tur
10 - Vas expansiune instalaţie
11 - Supapă evacuare aer
12 - Presostat instalaţie
13 - Circulator centrală
14 - Colector
15 - Supapă de siguranţă 3 bari
16 - Robinet golire instalaţie
17 - Schimbător de tip rapid
18 - Bujii de pornire şi indicare
19 - Arzător
Key (Fig. 1-7):
1 - System lling valve
2 - Domestic hot water probe
3 - Gas valve
4 - Domestic hot water ow switch
5 - Combustion chamber
6 - Fumes hood
7 - Flue safety thermostat
8 - Safety thermostat
9 - Delivery probe
10 - System expansion vessel
11 - Vent valve
12 - System pressure switch
13 - Boiler pump
14 - Manifold
15 - 3 bar safety valve
16 - System draining valve
17 - Rapid heat exchanger
18 - Ignition and detection electrodes
19 - Burner
Legenda (Obr. 1-7):
1 - Plniaci kohút zariadenia
2 - Úžitková sonda
3 - Plynový ventil
4 - Prietokomer úžitkovej vody
5 - Spaľovacia komora
6 - Digestor
7 - Termostat spalín
8 - Bezpečnostný termostat
9 - Sonda výtlaku
10 - Expanzná nádoba zariadenia
11 - Odvzdušňovací ventil
12 - Presostat zariadenia
13 - Obehové čerpadlo kotla
14 - Kolektor
15 - Bezpečnostný ventil 3 bar
16 - Výpustný kohút zariadenia
17 - Výmenník rýchleho typu
18 - Zapaľovacie a detekčné sviečky
19 - Horák
