18
BOARD SETTING
BOARD SETTING
Not Used
Not Used
Earth
Neutral
Line
230Vac 50Hz
power supply
Earth
Neutral
Line
230Vac 50Hz power supply
In MASTER (OT-S1)
position only connect CARV2
IMG-BUS boiler
Boiler low voltage connection terminals
Key: CAR
V2
- Comando amico remoto remote control
V2
zone 1 ÷ 7
M10 - Zone 1 ÷ 7 circulator pump M32 - Zone 1 ÷ 7 zone valve S20 - Zone 2 ÷ 7 room thermostat SW1 - Board setting selector switch

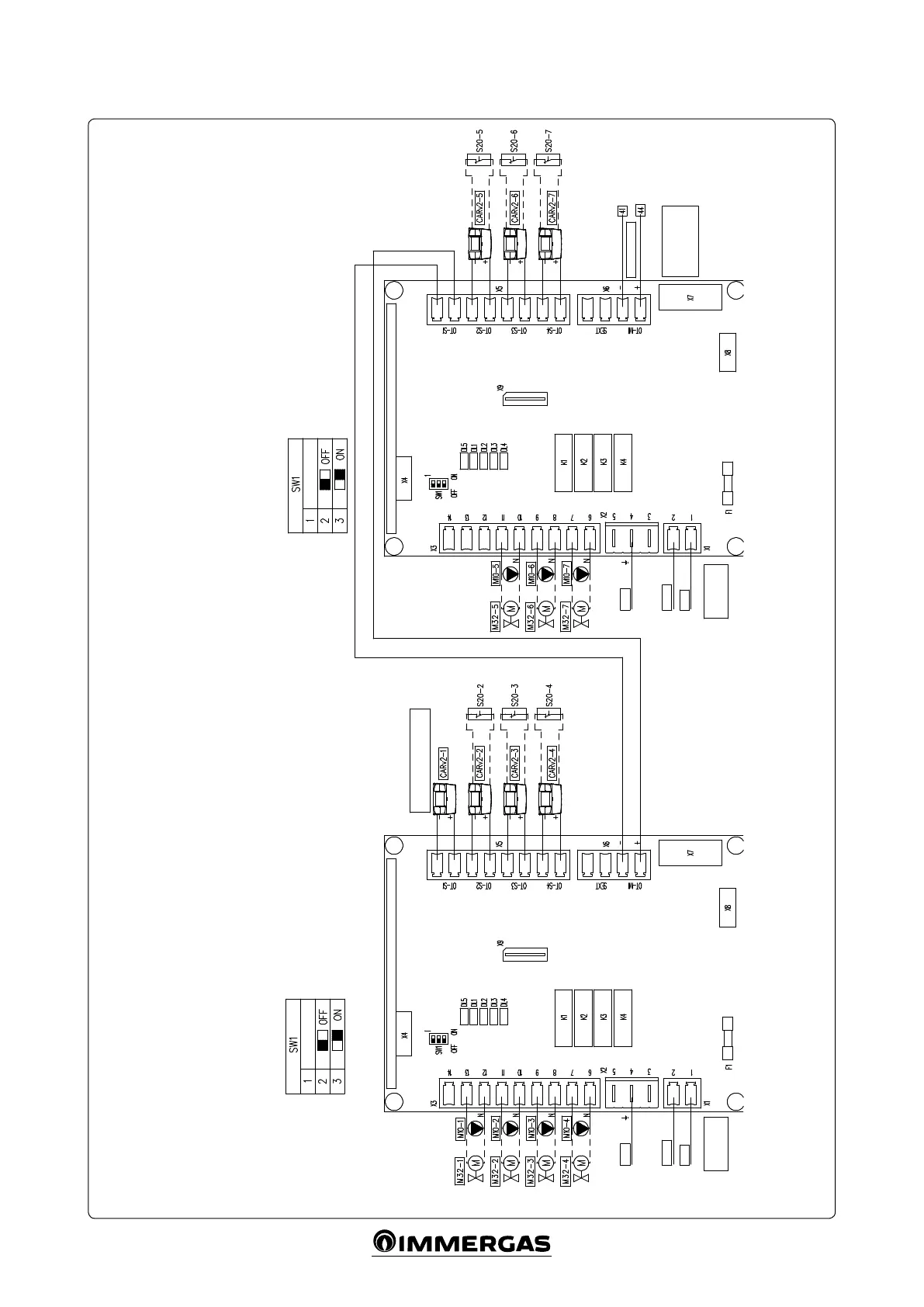

Wiring diagram of 2 multi-zone kits, congu-
ration of 7 high temperature zones.
19
