Immergas Victrix TT - Plumbing Diagrams

20
BOILER
EXTERNAL PROBE (OPTIONAL)
Key: CAR
V2
- Comando amico remoto remote control
V2
zone 1 ÷ 4
M10 - Zone 1 ÷ 4 circulator pump M32 - Zone 1 ÷ 4 zone valve M - System ow
R - System return

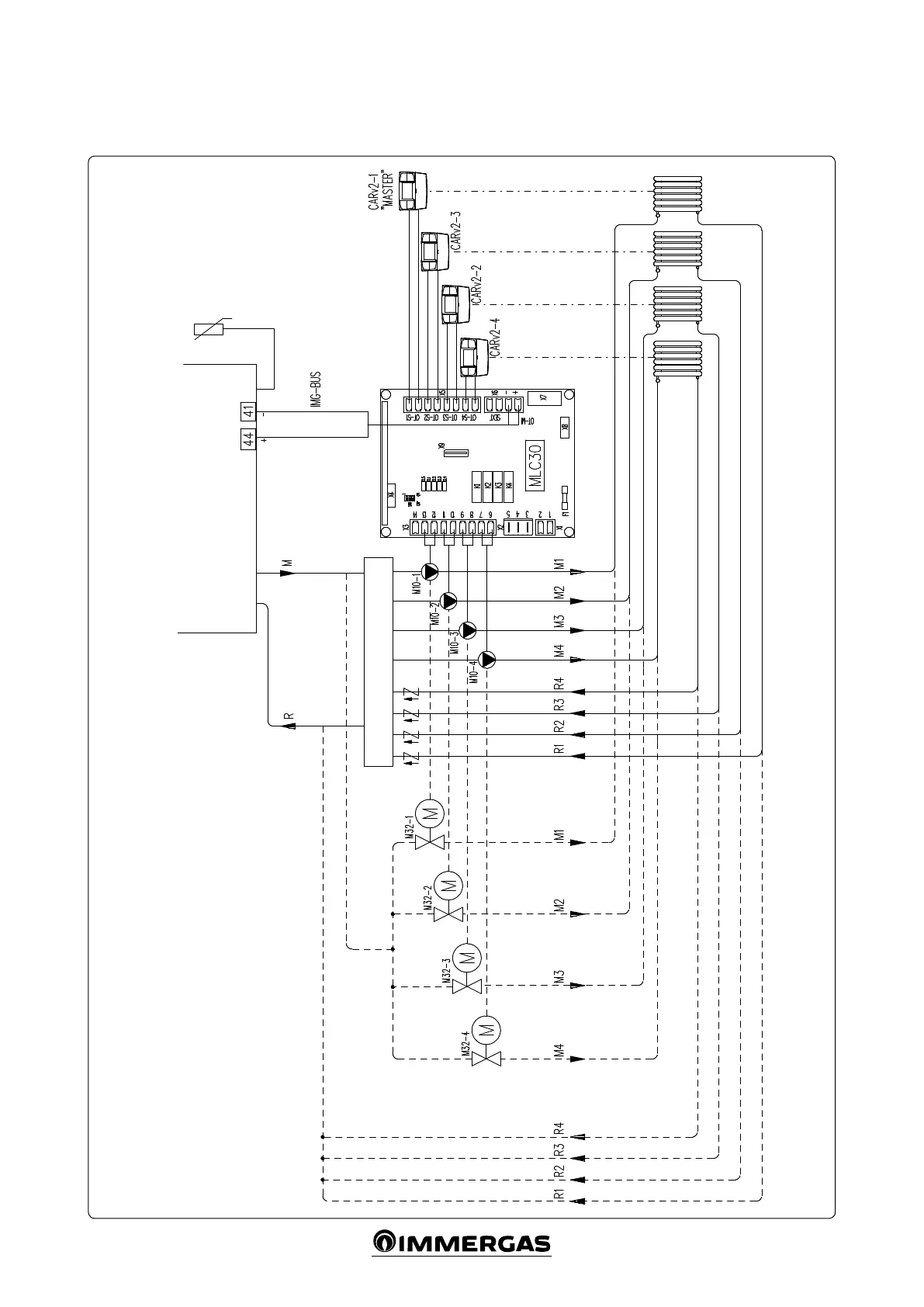

Multi-zone kit hydraulic diagram, congura-
tion of 4 high temperature zones.
PLUMBING DIAGRAMS.
21
