IMT 6025 - Geometric Configuration, 5525-6025-6625

10 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215

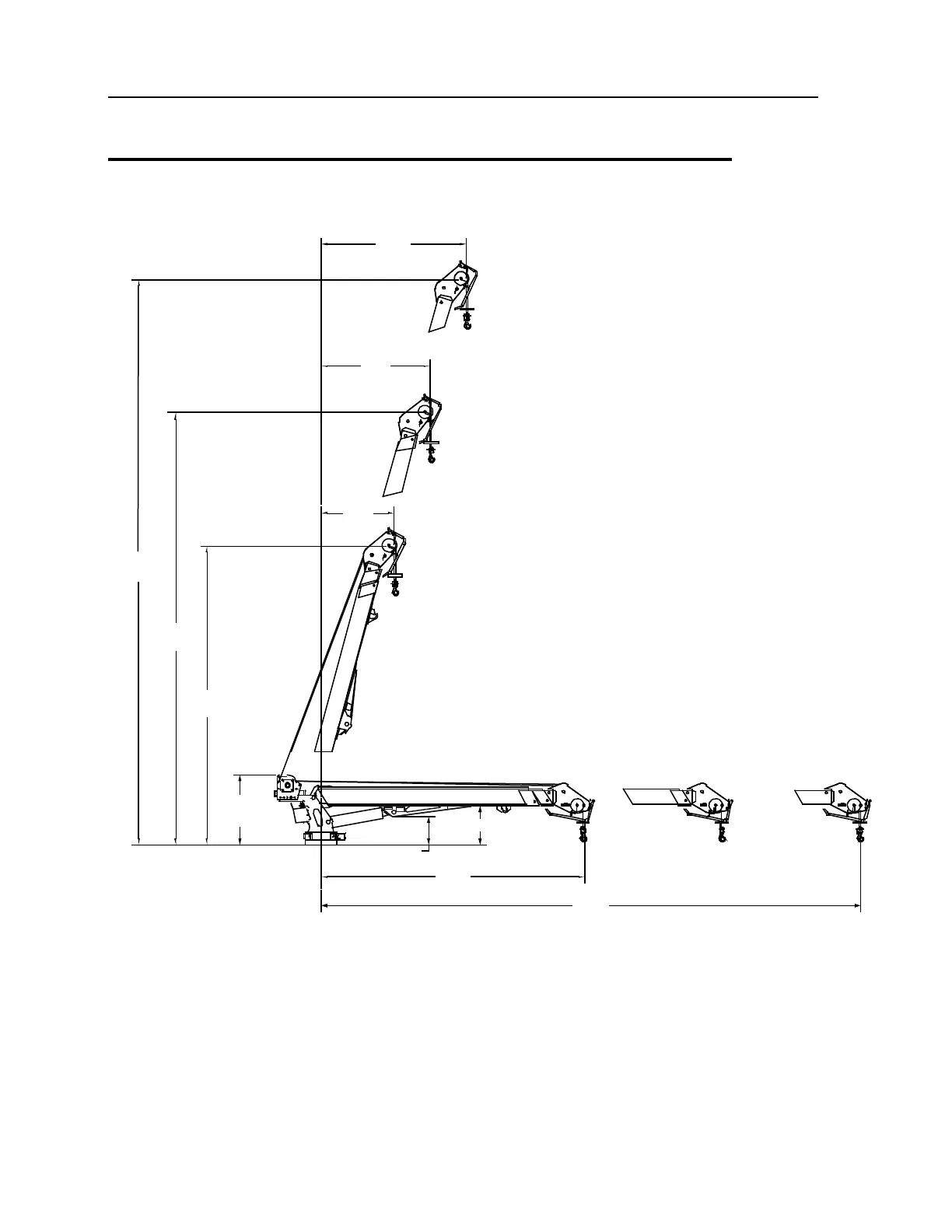

Geometric Configuration, 5525-6025-6625
6'-10"
(2.08 cm)
5'-2"
(1.58 m)
3'-6"
(1.07 m)
26'-1"
(
7.95 m)
20'-4"
(6.20 m)
14'
(4.27 m)
3'-4"
(1.02 m)
1'-10" (55.9 cm)
1'-4"
(40.6 cm)
12'-4"
(3.76 m)
24-10"
(7.57 m)
