52 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215

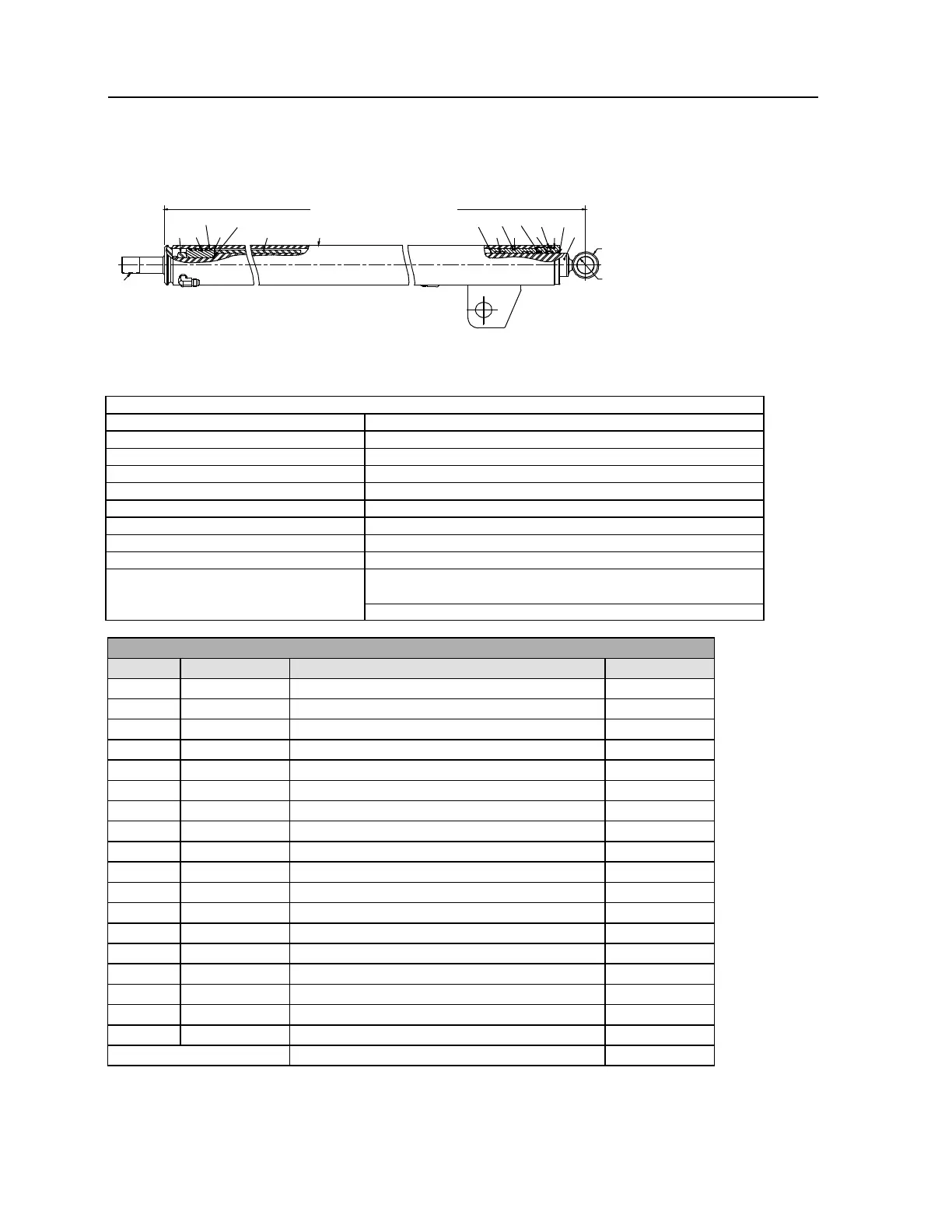

Cylinder (71410931)
121.5" ± 0.16 RETRACT - 193.5" EXTEND
72" ± 0.07 STROKE
3 9 12 17 13
14 10 16 8 5
ø1.27"
1.26"
ø2.0"
14
6
11
15
2
7
1.25-12
UNF 2A
NOTES:
1 TO REDUCE DOWNTIME, REPLACE ALL COMPONENTS OF THE SEAL KIT WHENEVER THE CYLINDER IS
DISASSEMBLED.
CYLINDER DATA
EXTENDED
4.90 IN², 1.65 GAL
RETRACTED
2.40 IN², 0.84 GAL
CASE
2.5" BORE X ø3.0"
ROD
ø 1.75" O.D.
DRY WEIGHT
177 LB
TEST PRESSURE
3500 PSI
OPERATING PRESSURE
3300 PSI
PORTS
SAE #6 O-RING BOSS (9/16-18 UNF-2B)
CYLINDER TUBE BURST PRESSURE
14,995 PSI
TORQUES
TORQUE ITEM #6, LOCKNUT, WITH LOCTITE GRADE 271
OR EQUIVALENT TO 330-380 FT-LB.
TORQUE ITEM #3, HEAD GLAND, TO 200 - 250 FT-LB.
71410931 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
71412026
TUBE WELDMENT - 2nd STAGE EXT 6025 SII
1
2.
050FE0015
PISTON - 6625 EXT CYL
1
3.
71412027
HEAD GLAND - 6625 EXT CYL
1
4.
065RY0005
ROD SPACER - 6625 EXT
1
5.
71411803
ROD WELDMENT-2nd STAGE EXT 6025 SII
1
6.
108BL0001
LOCK NUT-1.125-12 UNF
7.
120CZ0020
O-RING (PART OF 18)
1REF
8.
120FZ0006
O-RING (PART OF 18)
1REF
9.
120FZ0013
O-RING (PART OF 18)
1REF
10.
123FZ0003
BACKUP RING (PART OF 18)
1REF
11.
128FZ0003
DISO-PAC (PART OF 18)
1REF
12.
134EZ0009
DEEP Z-SEAL (PART OF 18)
1REF
13.
156DZ0001
HD ROD WIPER, SEALED OD (PART OF 18)
1REF
14.
166EZ0005
WEARBAND (PART OF 18)
2REF
15.
166FZ0002
WEARBAND (PART OF 18)
2REF
16.
167EZ0001
WEARBAND 15% PTFE IMPREG (PART OF 18)
1REF
17.
174CZ0002
LOCKING INSERT (PART OF 18)
2REF
18.
092FR0013
SEAL KIT - 6625 EXT CYL (INCLUDES 7-17)
1
REV. B 20070620
