62 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215

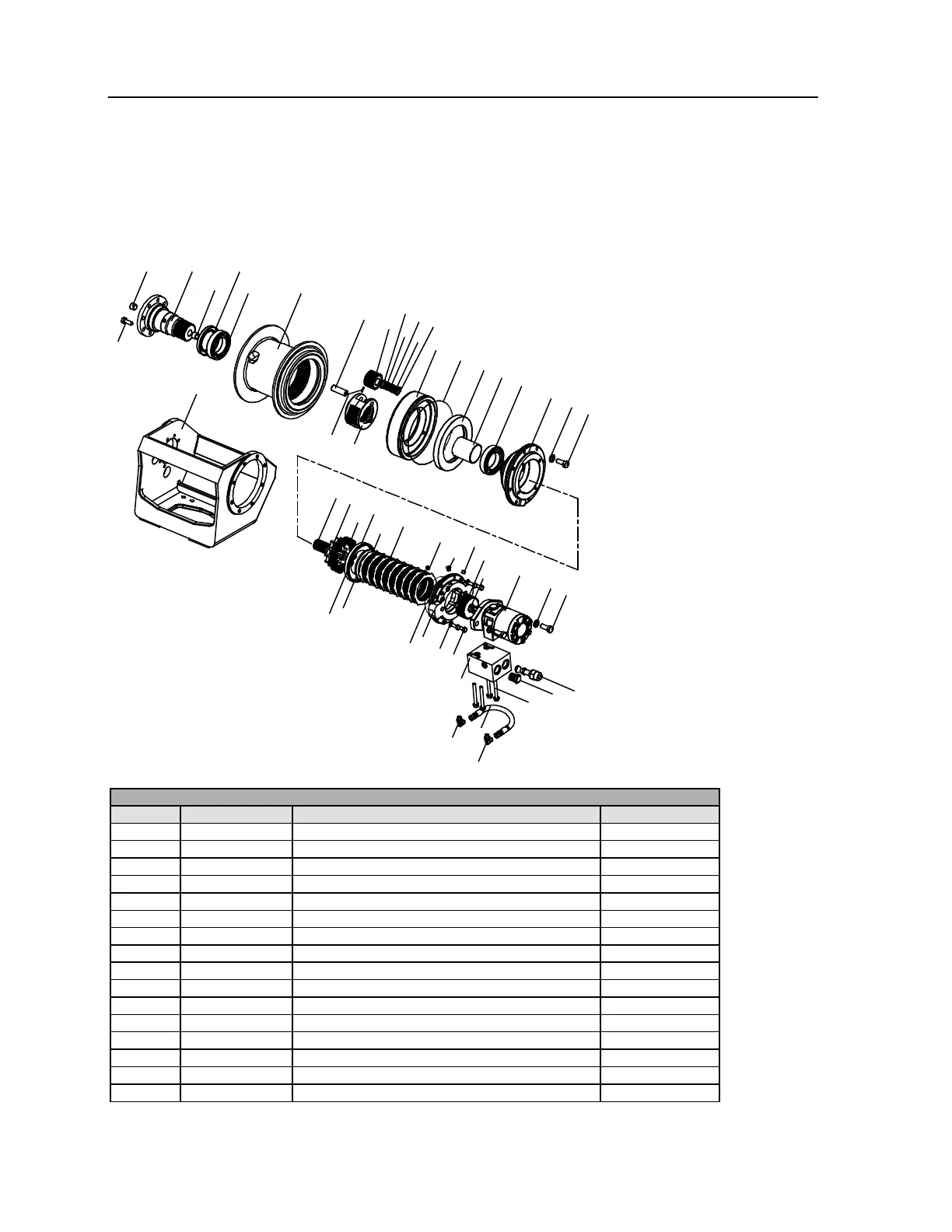

Winch Parts (70570771) (Reference Only)
NOTE: ALL 5525, 6025, AND 6625 MODEL CRANES USED 71570825 WINCHES EFFECTIVE
6-1-2007. THE PARTS FOR 70570771 ARE INCLUDED FOR REFERENCE ONLY.
34
33
22
28
20
32
31
7
11
9
10
9
11
3
6
12
8
2
1
21
70
27
28
53,54
49
4
29
47
35
45
44
71
37
71
43
14
48
25
26
36
38
46
23
33
34
40
72
73
57,
60
58
58
59
70570771 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
BASE
1
2.
CABLE DRUM
1
3.
CABLE DRUM CLOSURE
1
4.
SUN GEAR
1
6.
OUTPUT PLANET CARRIER
1
7.
OUTPUT PLANET GEAR
3
8.
OUTPUT PLANET GEAR SHAFT
3
9.
ROLLER BEARING
6
10.
BEARING SPACER
3
11.
THRUST WASHER
6
12.
ROLLPIN
3
14.
RETAINING RING
1
20.
SPACER, CARRIER
1
21.
BEARING SUPPORT
1
22.
BRAKE CYLINDER
1
23.
70571084
MOTOR ADAPTER
1
