IMT 6025 Parts & Specifications

Chapter 4 Parts 37

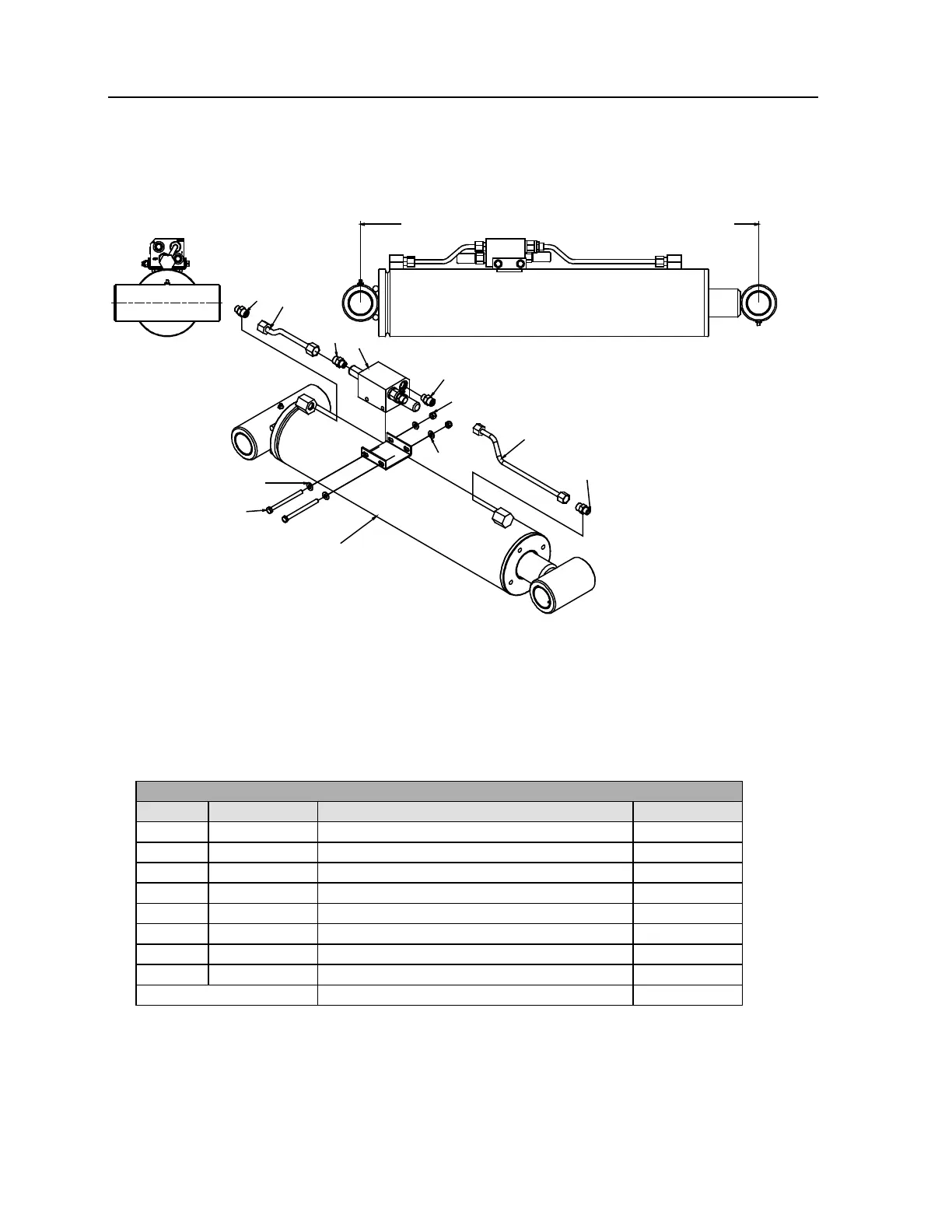

Cylinder, Lower, 6625 (51719074) (Eff. 4-07)
7
3
5
8
1
4
6
7
7
7
6
35.75" CLOSED-56.87" OPEN -21.12" STROKE
2
NOTES:
1 REPLACE ALL COMPONENTS OF THE SEAL KIT WHENEVER THE CYLINDER IS DISASSEMBLED. THIS
WILL REDUCE FUTURE DOWNTIME.
2 APPLY REGULAR GRADE ANTI-SEIZE AND LUBRICATING COMPOUND TO THREADS ON CYLINDER
HEAD ONLY. KEEP AWAY FROM ALL SEALS.
3 APPLY "LUBRIPLATE" NO. 630-2 MEDIUM HEAVY, MULTI-PURPOSE LUBRICANT, TO ALL PISTON, HEAD
GLAND, AND HOLDING VALVE SEALS, NYLON LOCK RING, CAST IRON PISTON RINGS, AND ROD
STINGER THREADS.
51719074 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
51719074A
CYLINDER- 5.25/2.50 21.12S 35.75CC C
1
2.
70145753
TUBE ASM
1
3.
70145927
TUBE ASM
1
4.
72060037
CAP SCR .31-18X 4.00 HH GR5 Z
2
5.
72062109
NUT .31-18 HEX NYLOCK
2
6.
72063002
WASHER .31 FLAT
4
7.
72533186
ADPTR-M FACE/M STR 6 6
4
8.
73540094
VALVE-DUAL CNTRL PRESS SWITCH
1
REV A 20080204
