IMT 6025 Parts & Specifications

46 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215

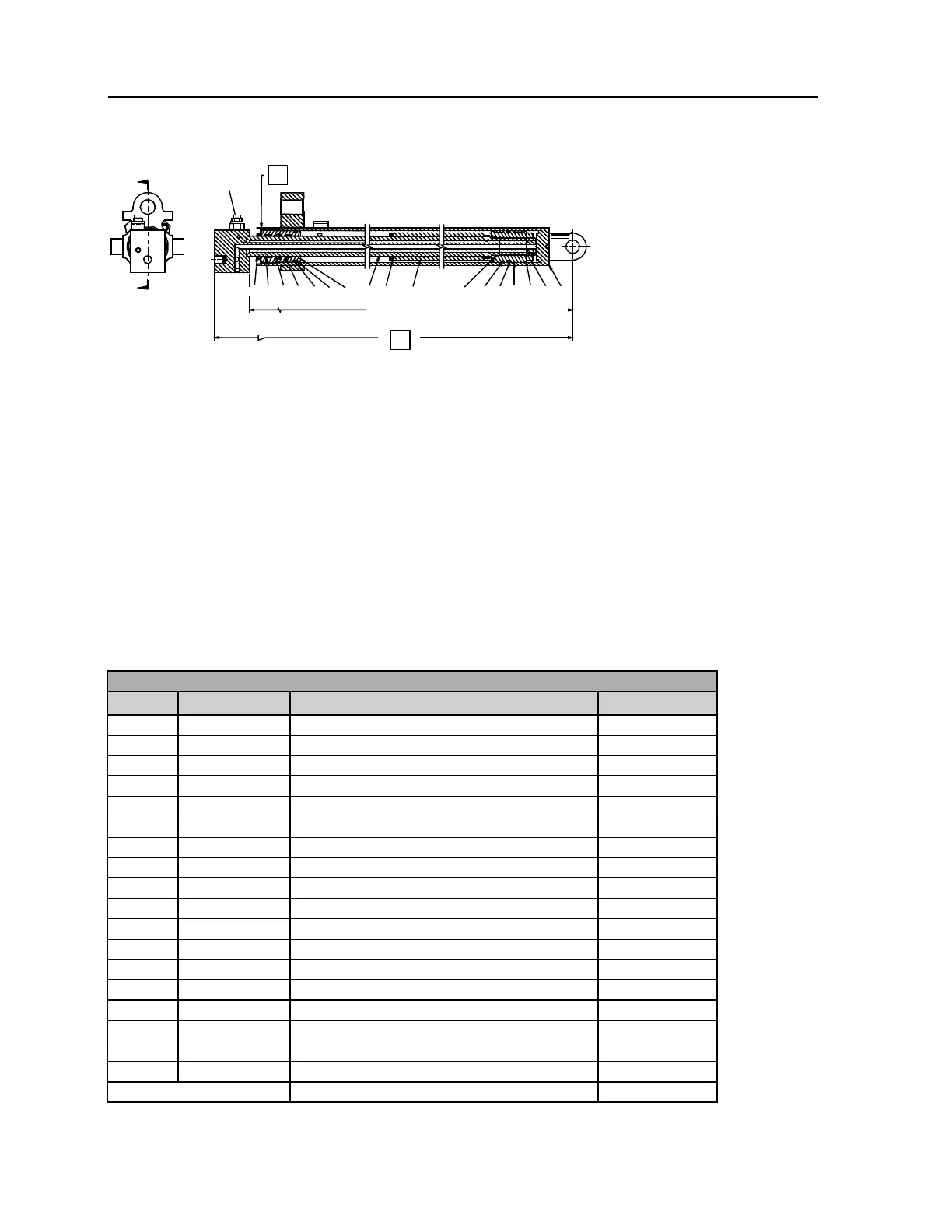

Cylinder (51718994)
A
A
12
10
8
16
6
11
15
7
10
5
14
2
13
9
3
17
17
118.38
SECTION A-A
SCALE 1 / 2
4
5
18
NOTES:
1 REPLACE ALL COMPONENTS OF THE SEAL KIT WHENEVER THE CYLINDER IS DISASSEMBLED. THIS
WILL REDUCE FUTURE DOWNTIME.
2 APPLY REGULAR GRADE ANTI-SEIZE AND LUBRICATING COMPOUND TO THREADS ON CYLINDER
HEAD ONLY. KEEP AWAY FROM ALL SEALS.
3 APPLY "LUBRIPLATE" NO. 630-2 MEDIUM HEAVY, MULTI-PURPOSE LUBRICANT, TO ALL PISTON, HEAD
GLAND, AND HOLDING VALVE SEALS, NYLON LOCK RING, CAST IRON PISTON RINGS, AND ROD
STINGER THREADS.
4 DRILL #15 HOLE 3/16" DEEP. PRESS IN PIN #60125699.
5 CYLINDER DIMENSIONS: 121.51" CLOSED; 199.38" OPEN; 78" STROKE.
6 ITEM #8, STOP TUBE, REPLACES 6A025017 WAFER LOCK. USE STOP TUBE INSTEAD OF WAFER LOCK
WHEN RESEALING CYLINDER.
7 TORQUE ITEM #18 TO 30-35 FT. LBS.
51718994 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
51744137
SEAL KIT (INCL:4, 8, 10-17)
1
2.
52718996
CASE ASM
1
3.
52718998
ROD ASM
1
4.
60125699
PIN
1
5.
60127432
PISTON
1
6.
60127434
HEAD
1
7.
60127436
STOP TUBE
1
8.
60138273
STOP TUBE (WAS 6A025017)
1
9.
72062305
COLLAR-LOCK
1
10.
76396596
WEAR RING-PISTON
2
11.
76396597
SEAL- ROD
1
12.
76396598
PISTON SEAL-DYNAMIC
1
13.
7Q072222
O RING 1.50X 1.75X .12 70
1
14.
7Q072332
O RING 2.38X 2.75X .19 70
1
15.
7Q10P332
BACKUP RING-2.38 ID X 2.75 OD
1
16.
7R14P017
ROD WIPER - TYPE D 1.75 ROD
1
17.
7T2NX420
WEAR RING-ROD 1.75 ID X 0.50 W
2
18.
73540154
VALVE, C BAL
1 REF (NOTE 7)
REV C 20120420
