IMT 6025 Parts & Specifications

Chapter 4 Parts 67

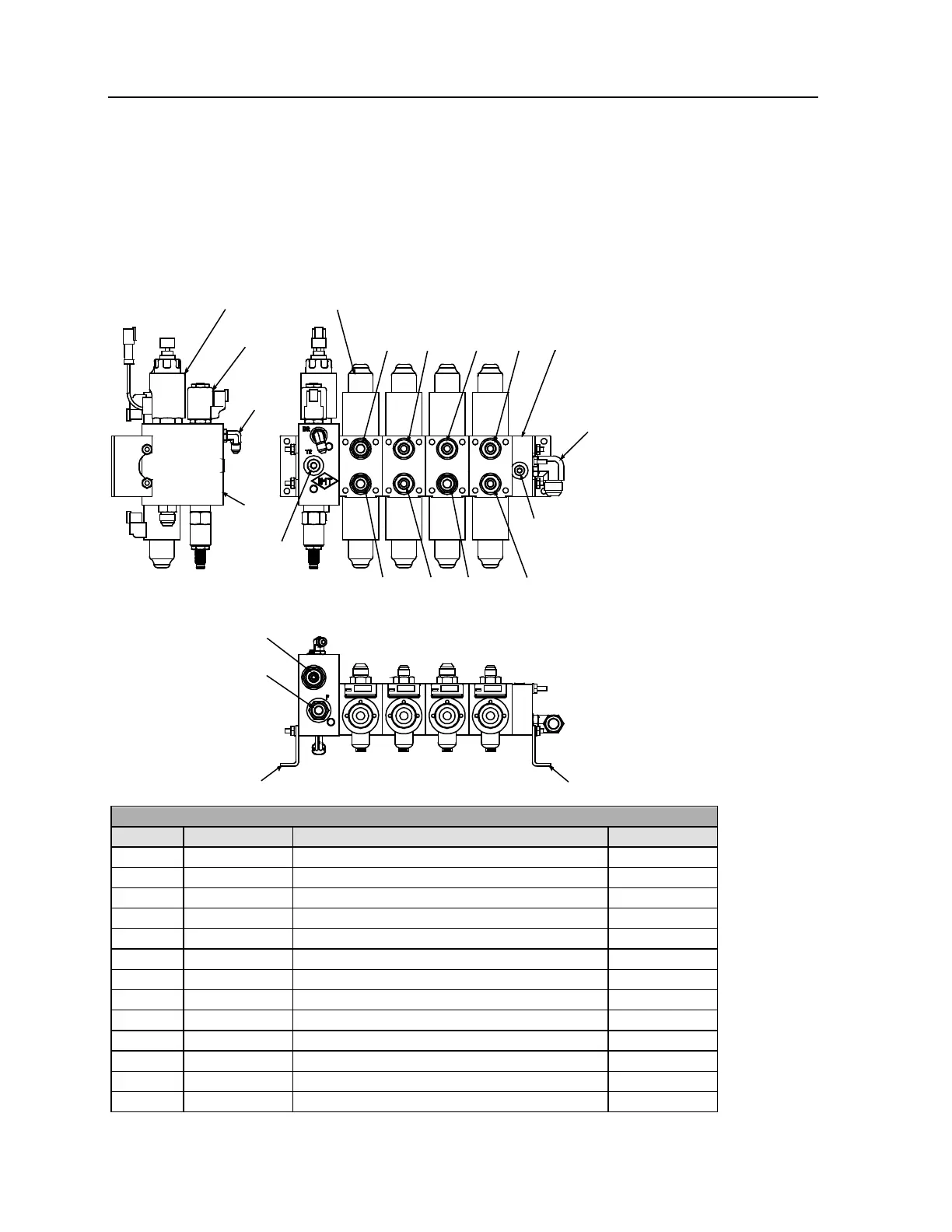

Valve Bank, Plan. Winch (73734472) (Eff. 1-10)
NOTE: 73734472 replaced 73734193 effective 1-2010. 73734472 used on cranes starting with
these serial numbers: 3820S2091216, 5020S2091012, 5525S2101004, 6025S2091070,
6625S2091002, 7025S2101001.
5
11
9
14
11 10 11 10
15
1
12
6,7
3,4
2
11 10 10 10 8
13
9
73734472 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
73540394
VALVE BODY
1
2.
73540375
VALVE SECTION
4
90744198
REPLACEMENT COIL KIT FOR 73540375
REF
3.
73540252
FLOW CONTROL VALVE
1
4.
73540253
COIL FOR 73540252
1
5.
73540396
RELIEF VALVE
1
6.
73540397
VALVE-SPOOL
1
7.
73540398
COIL-S SERIES 12VDC DEUTSCH
1
8.
73540027
END PLATE
1
9.
70145830
MOUNTING FOOT
2
10.
72532356
ADAPTER-M STR/M JIC 8 6
5
11.
72532358
ADAPTER-M STR/M JIC 8 8
4
12.
72053758
ELBOW-M STR/90/M JIC 4 4
1
