IMT 6025 Parts & Specifications

34 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215

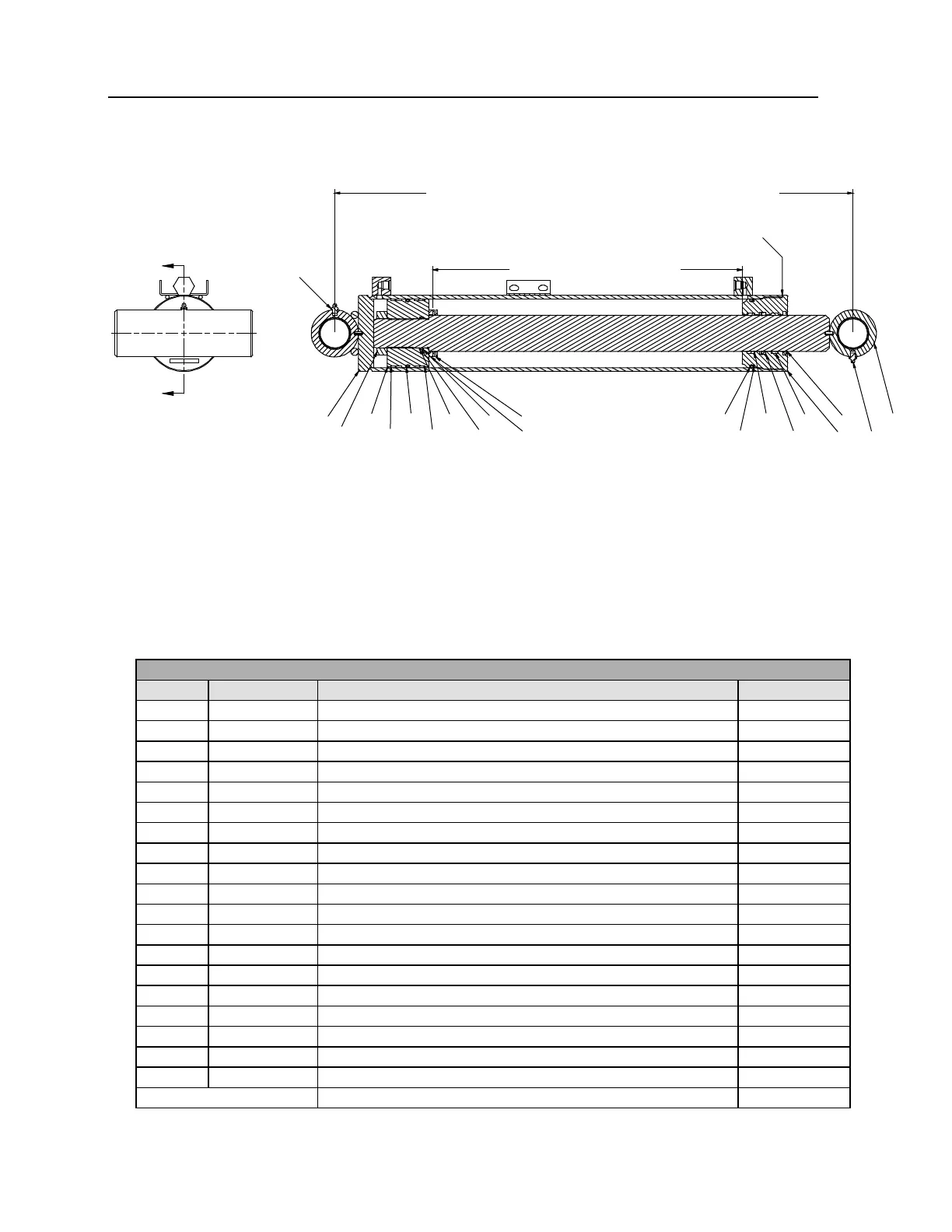

Cylinder Components (51719075A)
B
B
6
17
2
18
11
19
14
16
9
12
10
3 7
13
15
5
8
13
19
9
12
SECTION B-B
35.75" CLOSED - 56.87" OPEN - 21.12" STROKE
21.38" TO STOP TUBE
DRILL #15 HOLE 3/16" DEEP.
PRESS IN PIN # 60125699.
NOTES:
1 REPLACE ALL COMPONENTS OF THE SEAL KIT WHENEVER THE CYLINDER IS DISASSEMBLED. THIS
WILL REDUCE FUTURE DOWNTIME.
2 APPLY REGULAR GRADE ANTI-SEIZE AND LUBRICATING COMPOUND TO THREADS ON CYLINDER
HEAD ONLY. KEEP AWAY FROM ALL SEALS.
3 APPLY "LUBRIPLATE" NO. 630-2 MEDIUM HEAVY, MULTI-PURPOSE LUBRICANT, TO ALL PISTON, HEAD
GLAND, AND HOLDING VALVE SEALS, NYLON LOCK RING, CAST IRON PISTON RINGS, AND ROD
STINGER THREADS.
4 PISTON TORQUE - 400-500 FT-LB; HEAD GLAND TORQUE 300-400 FT-LB.
51719075A PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
51744142
SEAL KIT-IMT 4.75/2.50 2.00 STGR (INCL. 4,8,11-19)
1
2.
52719017
ROD ASM-2.50 OD X 33.06LG 2.00 STGR
1
3.
52719077
CASE ASM- 4.75 BORE X 30.87 LG
1
4.
60125699
PIN - LOCK TUBE 0.19 OD X 0.065 WALL
1
5.
60127501
STOP TUBE- 3.25OD X2.56ID X 0.25 LG
1
6.
60127607
HEAD- 4.75 BORE X 2.50 ROD
1
7.
60127608
PISTON- 4.75 BORE X 2.00 STGR
1
8.
6A025025
WAFER LOCK-IMT 2.50
1
9.
72053508
ZERK-NPT .12
2
10.
72062304
COLLAR-LOCK 2-12 X 3 X .688
1
11.
76396605
SEAL- ROD 2.50 ROD DZ
1
12.
76396608
BACKUP RING- 2.02 ID X 2.26 OD
2
13.
76396610
WEAR RING- PISTON 4.75 OD X .75W
2
14.
76396611
BACKUP RING- 4.38 ID X 4.75 OD
1
15.
76396612
PISTON SEAL-DYNAMIC 4.75 OD CP
1
16.
7Q072226
O RING 2.00X 2.25X .12 70
1
17.
7Q072348
O RING 4.38X 4.75X .19 70
1
18.
7R14P025
ROD WIPER-TYPE D 2.25 ROD
1
19.
7T2NX427
WEAR RING-ROD 2.50 ID X 0.50W HAL
2
REV. A 20090407
