IMT 6025 Parts & Specifications

120 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215

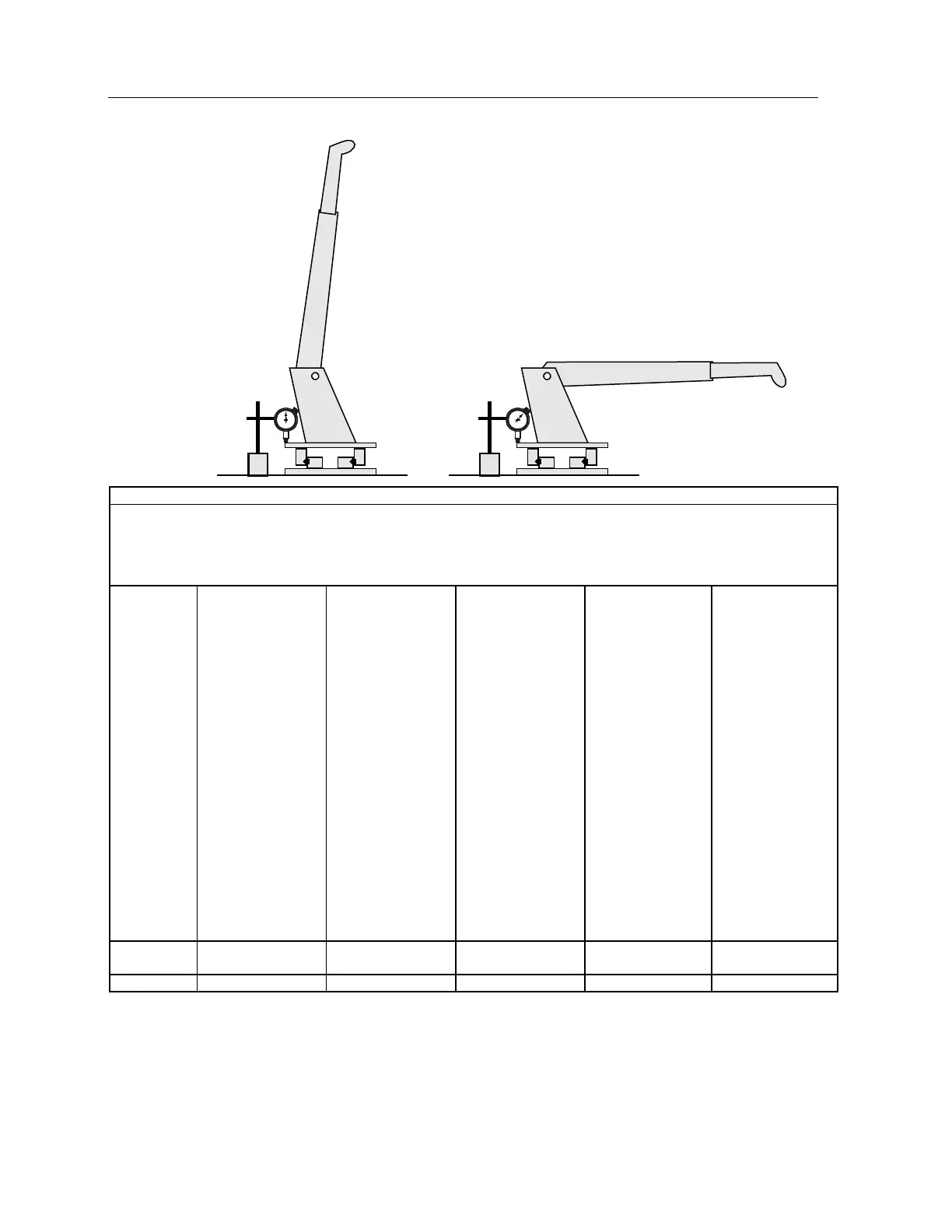

Set up dial indicator
to 0" on pinion cover
at back side of mast.
Lower crane to
horizontal position.
Read dial indicator.
COMPARISON CHART - MEASURED TILT DIMENSION PER CRANE MODEL
NOTE: The tilt dimensions listed in this chart are service guidelines and do not, in themselves, require that the
bearing be inspected.
If there is reason to suspect an excess of bearing wear AND
the measured tilt dimension exceeds the dimension
listed, remove the bearing for inspection.
IMT Crane,
Loader or
Tirehand
Model
1007
1014/1014A
1015
2015/2020
2109
2820
3000
3016/3020
3203i
3816/3820
4004i
421/425
4300
5005i
5016/5020
6006i
6016/6020
6022
5525 / 6025 / 6625
EZ Hauler I, II
EZ Hauler 3000 /
5500
5200
5200R
5217
5800
7020
7025
7200
7415
8025
9000
16000-I, II, III
32018
32027
32030
T30
T40
23516
14K160TH
COMMANDER IV
1221R
1225R
8000L
9800
12916
13031
13034
14000
15000
18000
20017
8000L
H1200
H1200RR
T50
Ball Dia.
(Ref)
.875" (22 mm)
1.00" (25 mm)
1.18 - 1.25" (30-32
mm)
1.5” (38 mm)
1.75" (44 mm)
Tilt Dim.
.060" (1.524 mm)
.070" (1.778 mm)
.075" (1.905 mm)
.085” (2.159 mm)
.090" (2.286 mm)
Rev 20100331

IMT 6025 Specifications

General

Brand	IMT
Model	6025
Category	Construction Equipment
Language	English
