IMT 6025 Parts & Specifications

Chapter 4 Parts 65

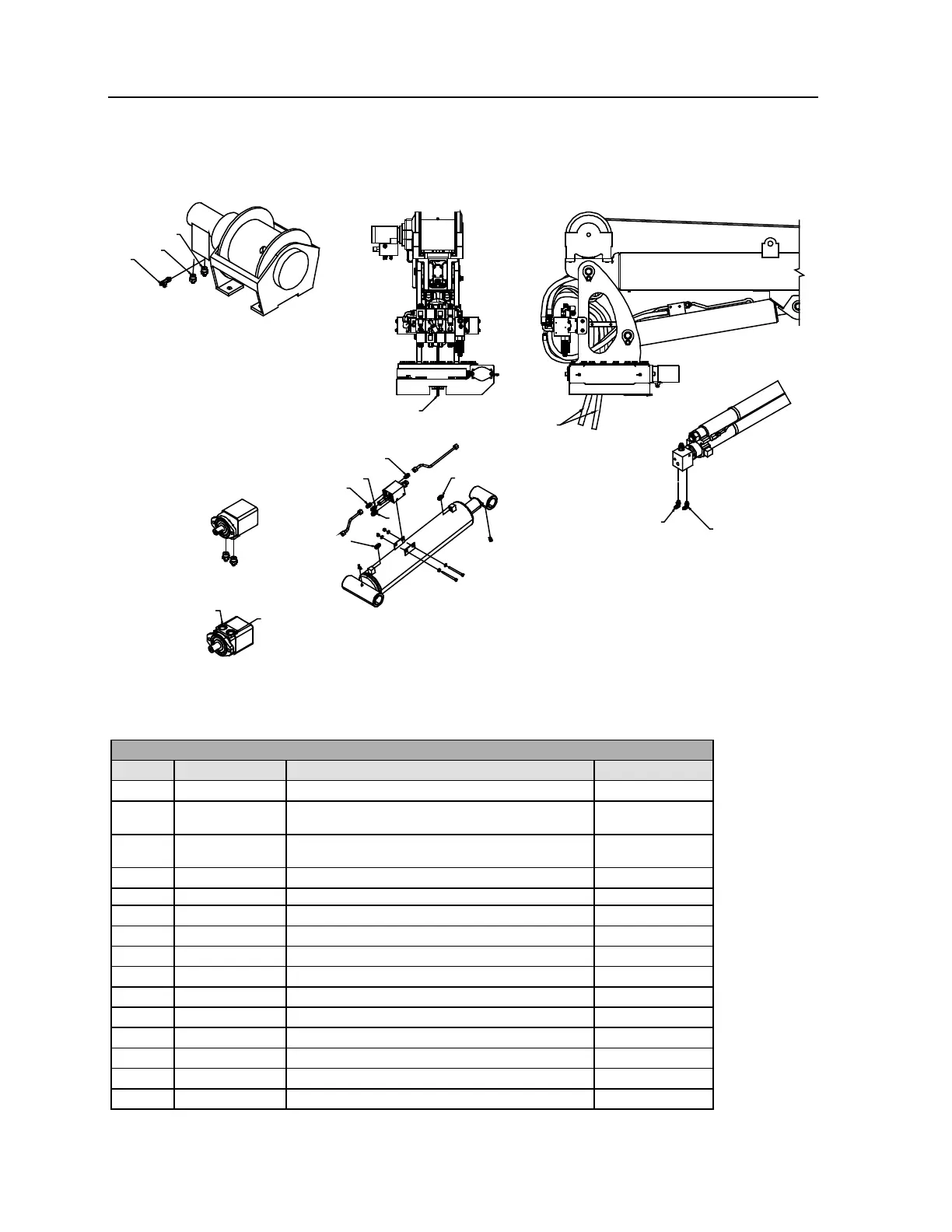

99904036 HYDRAULIC PORT IDENTIFICATION
29
30
30
34
34
7
34
6
34
10
10
32
(USED WITH 71056577
GEAR ROTATOR)
PRESSURE
& RETURN
LINES
EXTENSION
CYLINDER
PORT ID
LOWER
CYLINDER
PORT ID
HYDRAULIC
MOTOR
PORT ID
(ROT & WINCH)
VALVEBANK
PORT ID
HYD MOTOR
(ROTATION)
PORT B
PORT A
PLANETARY WINCH
PORT ID
99904036 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
73734472
VALVE BANK (EFF. 1-10)
1
1.
73734193
VALVE BANK (EFF. 5-07 TO 12-09) (INCL. #2-
4, 25)
1
1.
51720111
VALVE BANK ASM W/BRAKE (INCL. #2-4, 25)
(THRU 4-07)
1
2.
72532356
ADAPTER #8MSTR #6MJIC
5
3.
72532358
ADAPTER MSTR #8 MJIC #8
4
4.
72533507
ELBOW #8MSTR #10MJIC 90°
1
5.
91720393
HOSE KIT (INCL. 6-23,26-38)
1
6.
72532355
ADAPTER #6MSTR #6MJIC
1
7.
72532357
ADAPTER #6MSTR #8MJIC
1
8.
72533613
ADAPTER #10MSTR #6MJIC
2
9.
72534474
ELBOW #4MBSPP #4MJIC 90°
1
10.
72532359
ADAPTER #10MSTR #8MJIC (WAS 72534415)
2
11.
72533648
SWIVEL #8MJIC #8MJIC 90°
3
12.
72534412
SWIVEL #10MJIC #10MJIC 90°
1
13.
51397080
HOSE FJ 5/8X30 OAL (10-10) (WAS 51396806)
1
