7-8
SECTION SEVEN
INDM-0019a
1
2

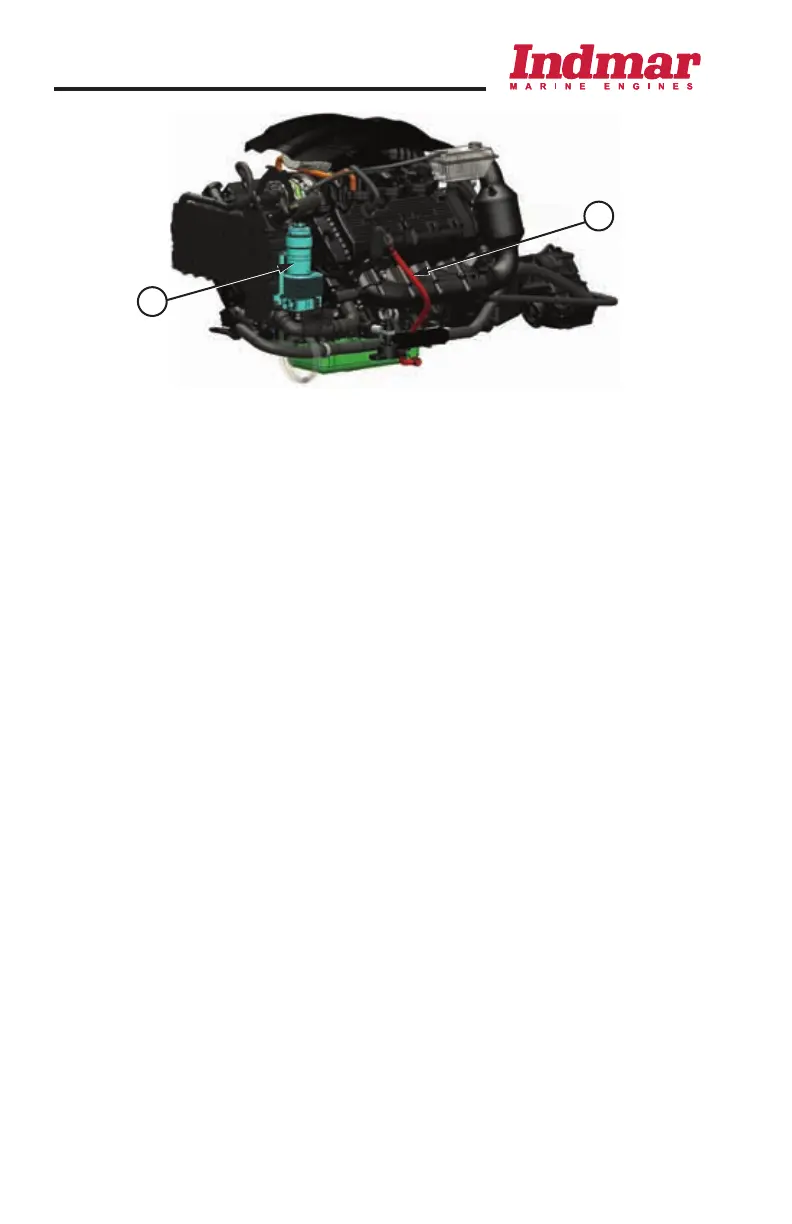

1 - Oil Filter 2 - Quick Drain
Figure 7.4 – Oil Filter and Drain
Indmar recommends all engine maintenance procedures be
performed by your dealer, including oil changes. If you must
perform the oil change yourself, operate the engine to full
operating temperature.
1. With the boat level on trailer, remove the hull or garboard drain
plug and insert QuickDrain through the hull opening (outside of
hull).
2. Remove QuickDrain hose cap and let oil flow into used oil
container. When all oil has drained, replace cap and return
QuickDrain to storage position.
3. Replace the hull or garboard drain plug.
4. For Engines with Cartridg
e Style Filter: Remove the oil
filter cap from the canister assembly and wipe clean. Carefully
remove and discard the O-ring from the cap and the oil filter
cartridge.
5. For Engines with Cartridge Style Filter: Insert a new 501022S
oil filter cartridge into the canister assembly. Install and lubricate
the new filter cap O-ring, replace the oil filter cap on the canister
and hand-tighten.
6. Add the new oil through the cap located on the engine valve
cov
er. Fill only to the FULL mark of dipstick.
7. After initial start up, always carefully inspect oil drain plug and
oil filter gasket area for leaks.
8. Stop the engine and re-check oil level. Add if necessary.
