4.3 Connections on the backside

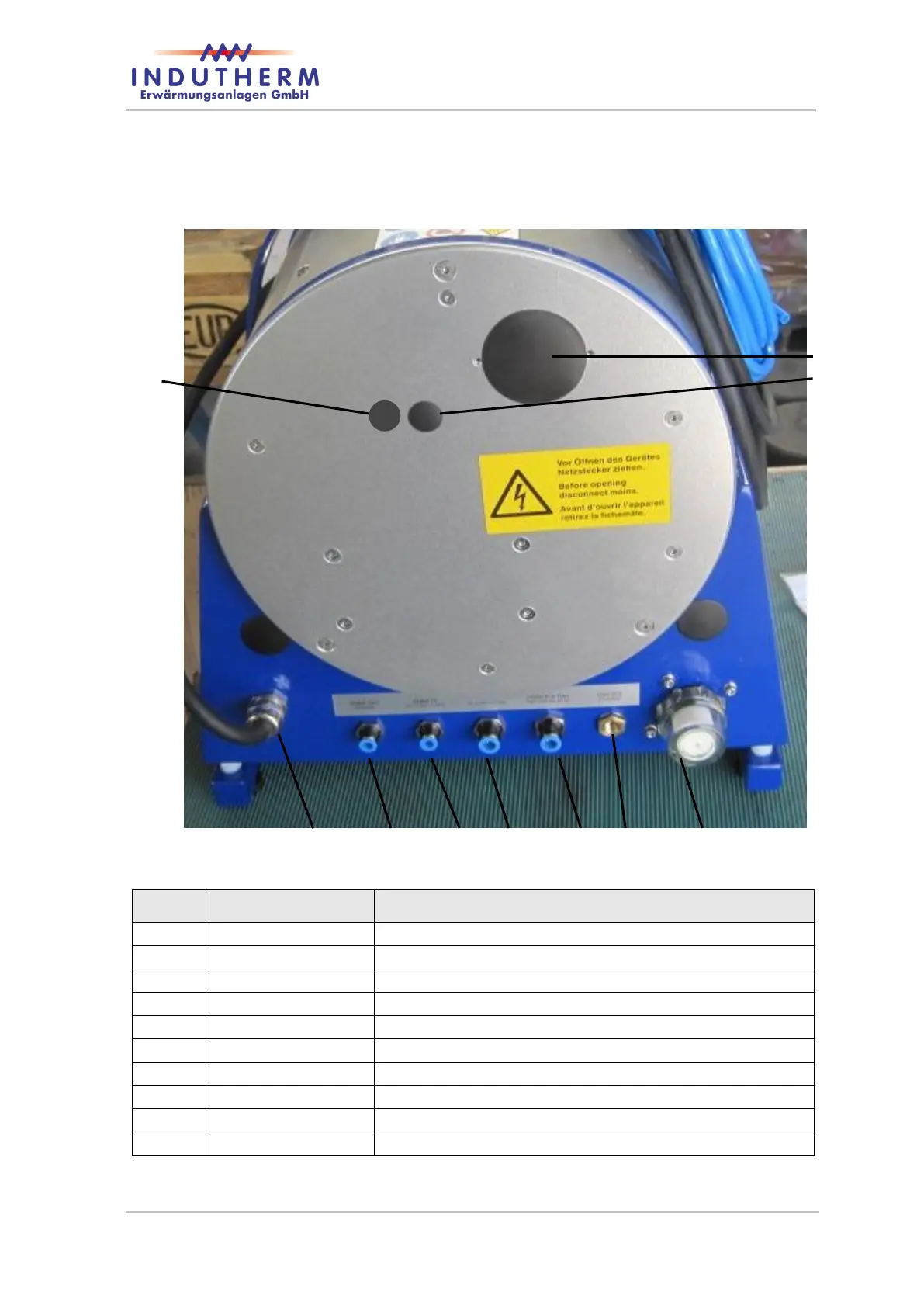

Figure 2: backside of the mini-casting machine
8
10
9
7
6
5
4
3
2
1
Position
Description
Function of the connection
1
vacuum filter
filters the vacuum
2
Gas out
gas outlet
3
Protective gas
input for protective gas
4
Vacuum
connection for external vacuum pump
5
Water In
input for cooling water
6
Water Out
output for cooling water
7
mains cable
electrical connection for machine
8
RS232 connection
connection for PC or modem for service issues
9
Ethernet
connection for Ethernet-cable (RJ45) for service
10
USB-B-socket
connection of USB cable for service issues
