6.4 Replacing the Sensor
In case of severe contamination or a malfunction, the sensor can
be replaced.
Precondition
Gauge deinstalled (→  55).

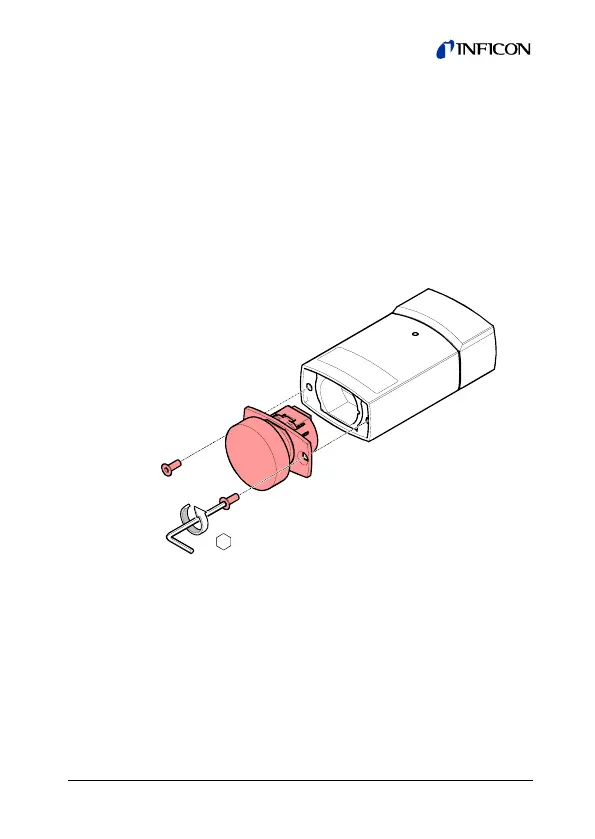

 Unscrew the hexagon socket screws and remove the
sensor without twisting it.
2 mm
 Place the new sensor without twisting it and lock it with the
screws.
