User Manual 7-12 V2.1
TriBoard TC3X7 TH V2.0(1) and TriBoard TC3X7 V2.0 2018-10
TriBoard Manual TC3X7
Hardware: TriBoard TC3X7 TH V2.0(1) and TriBoard TC3X7 V2.0
Schematic and Layout

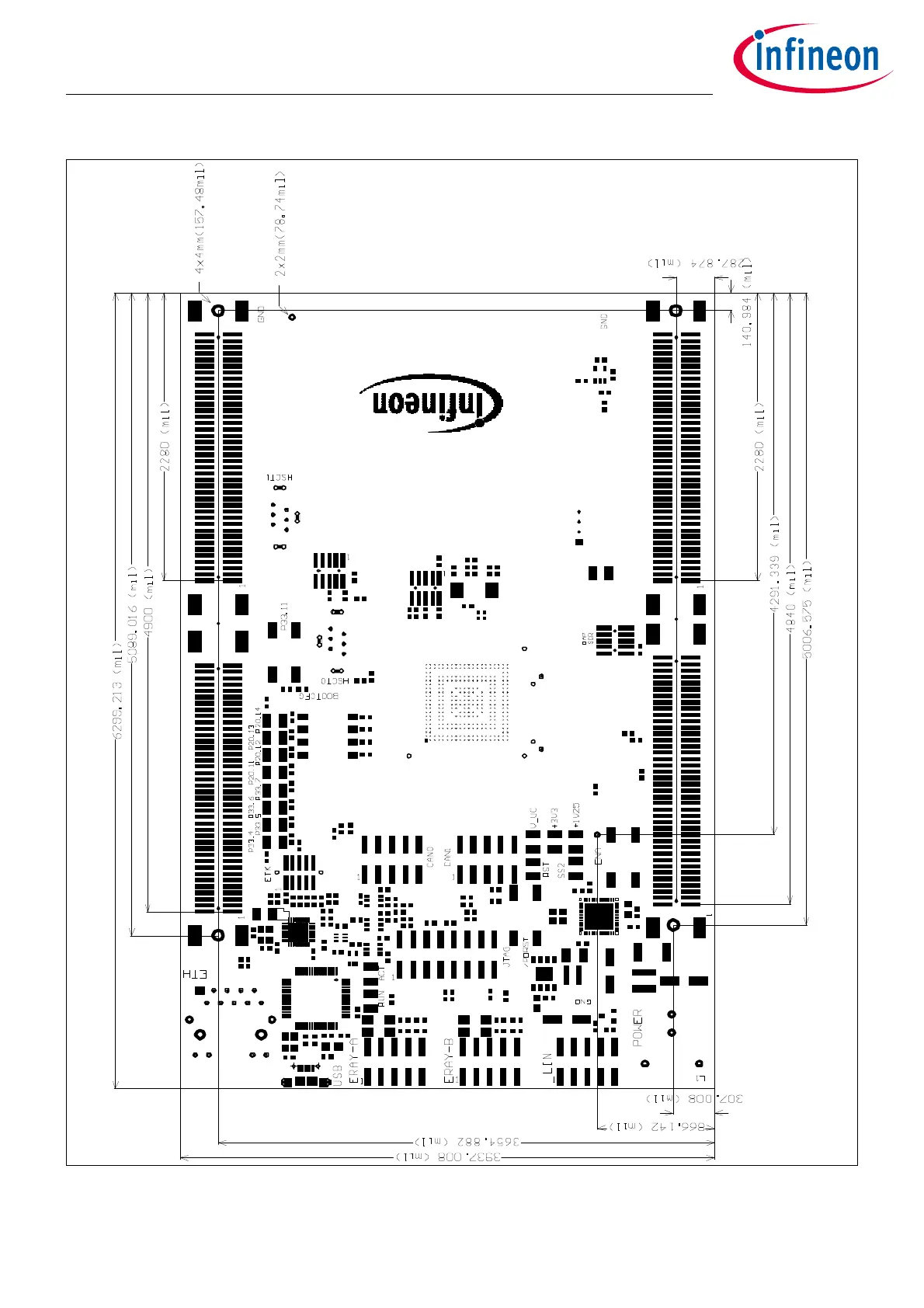

Figure 7-11 Dimensioning (mil)
The dimensioning is valid for all TriBoards.
TriBoard-TC3X7 (TH) V2.0(1)
INFINEON TECHNOLOGIES AG
