User Manual 2-3 V2.1
TriBoard TC3X7 TH V2.0(1) and TriBoard TC3X7 V2.0 2018-10
TriBoard Manual TC3X7
Hardware: TriBoard TC3X7 TH V2.0(1) and TriBoard TC3X7 V2.0
Features
2.3 Placement

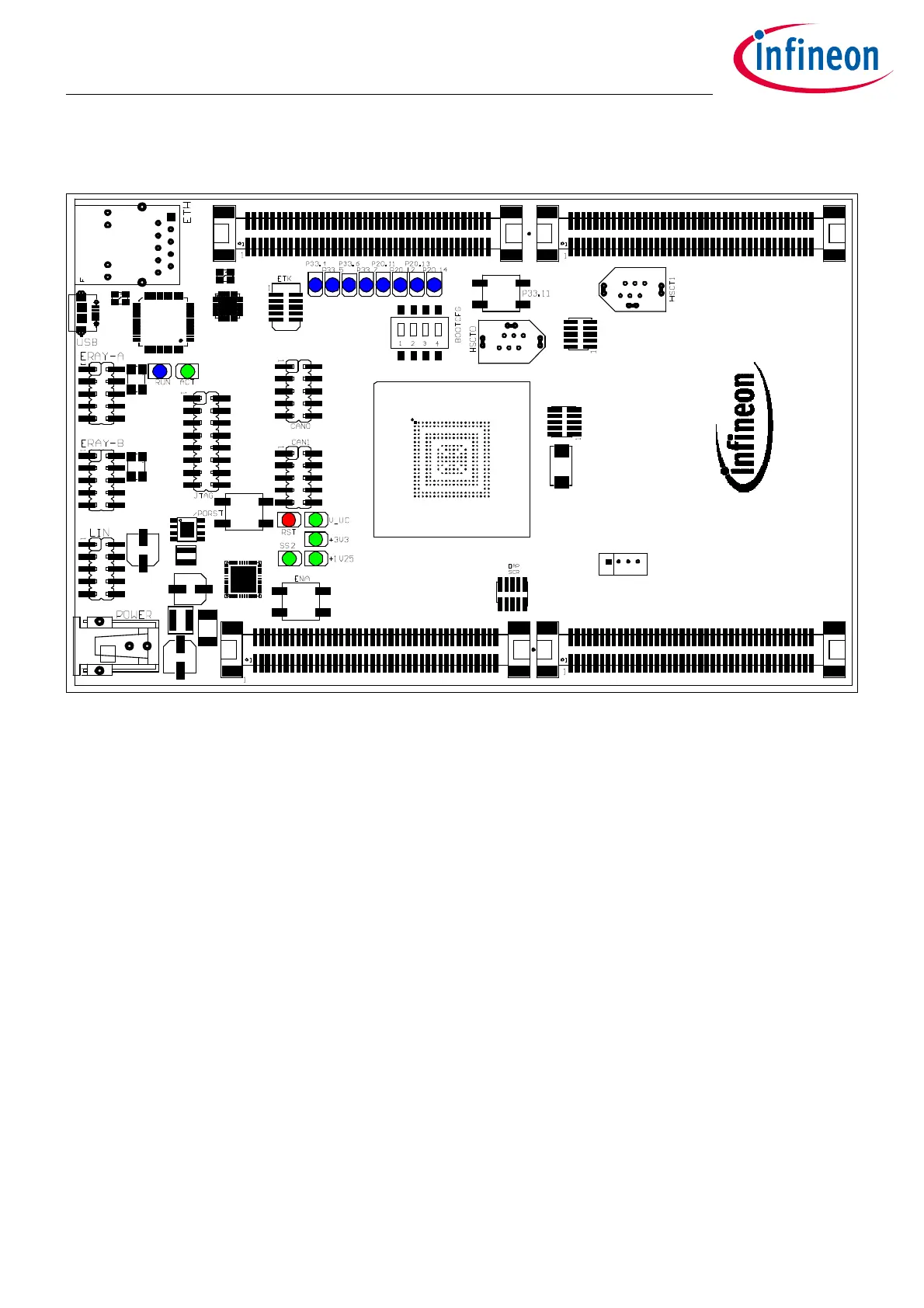

Figure 2-2
TriBoard TC3X7 (TH) V2.0(1) Placement
U201
X406
X 202
X 502
X403
S202
R5 01
C501
C502
L501
L502
U501
D508
U502
S 502
X404
S5 0 1
X501
X4 01
D504 D507
D506
D505
D309D308D3 0 7D306D305D304D303D3 0 2
X601
X 603 X602
X30 2 X30 1
T 302
T301
Y 201
Y 401
U401
D402
BU4 0 1
D401
C303
X30 3X304X3 05
X201
S 201
X402
X604
Y 301
U3 0 7
X306
TriBoa rd -TC3 X7 (T H) V 2.0( 1)
INFINEON TECHNOLOGIES AG
