6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
After the FTP cable has been laid, use distribution box to switch from FTP cable to UTP
cable with RJ-45 connectors. Service cable connecting IDU and ODU should be FTP
Cat5e cable with the outside diameter value not more than 7mm
Install ODU on the mounting bracket according to the direction required for the link. Do
not tight it too hard unless the antenna alignment is not complete. Install ODU connectors
down
Connect the ODU-IDU cable to the ODU
Isolate the ODU connector joint place
Once the ODU and antenna pole are installed they must be grounded via lightning
protection grounding contour. ODU position must be lower than the highest antenna pole
point at least by 2 ODU heights

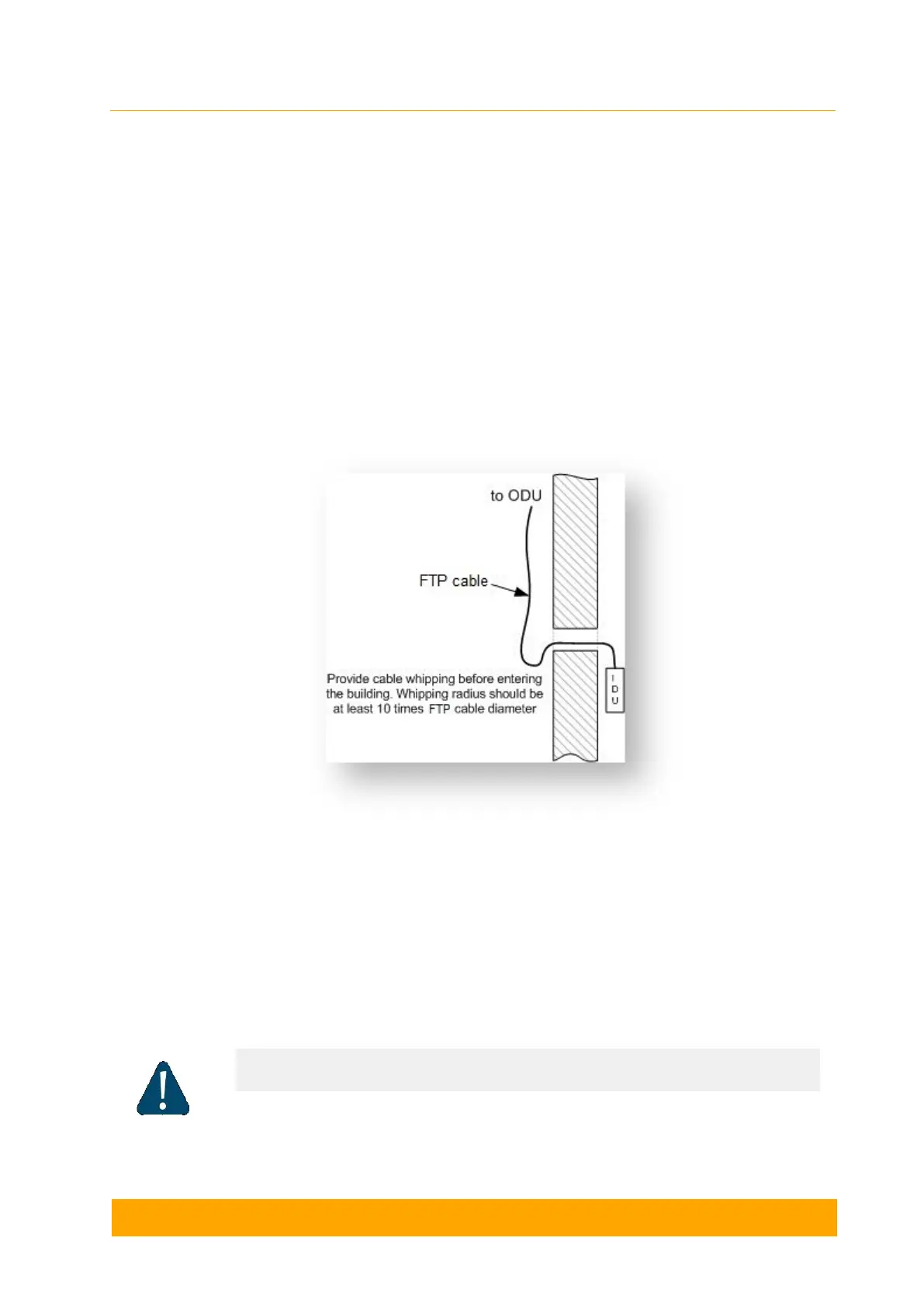

Figure - Installation scheme
Connect the UTP cable to IDU
Provide grounding for IDU
Connect Ethernet cable to IDU
Provide power supply for IDU
Connect to the device using Telnet protocol
CAUTION
It is extremely important to install ODU connectors down!
