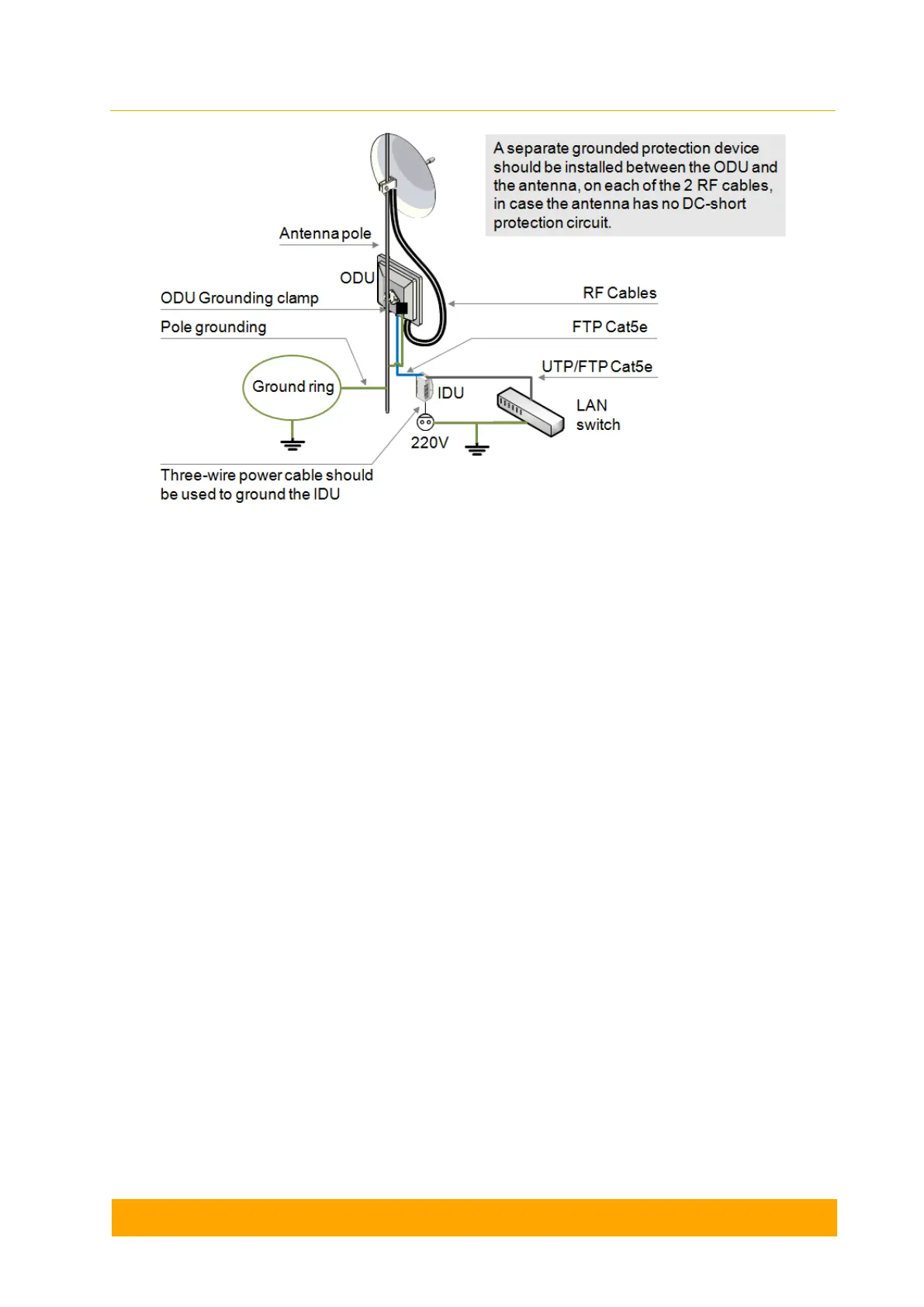

Figure - Grounding Connections Schematics when Using IDU-BS-G/IDU-BS-G(60W)
3.5.1 Grounding when using AUX-ODU-INJ-G
AUX-ODU-INJ-G is an optional accessory, which may be used to connect third-party DC power
sources to the ODU (for example, to power the unit from solar power or wind power sources).
AUX-ODU-INJ-G should be properly assembled, mounted and grounded.
