3.8.2 Installation with MONT-KIT-85c
Use the kit for a secure and reliable installation to a pipe/wall/pole. This kit MONT-KIT-85c
allows 2-axis precise alignment under any mounting conditions.

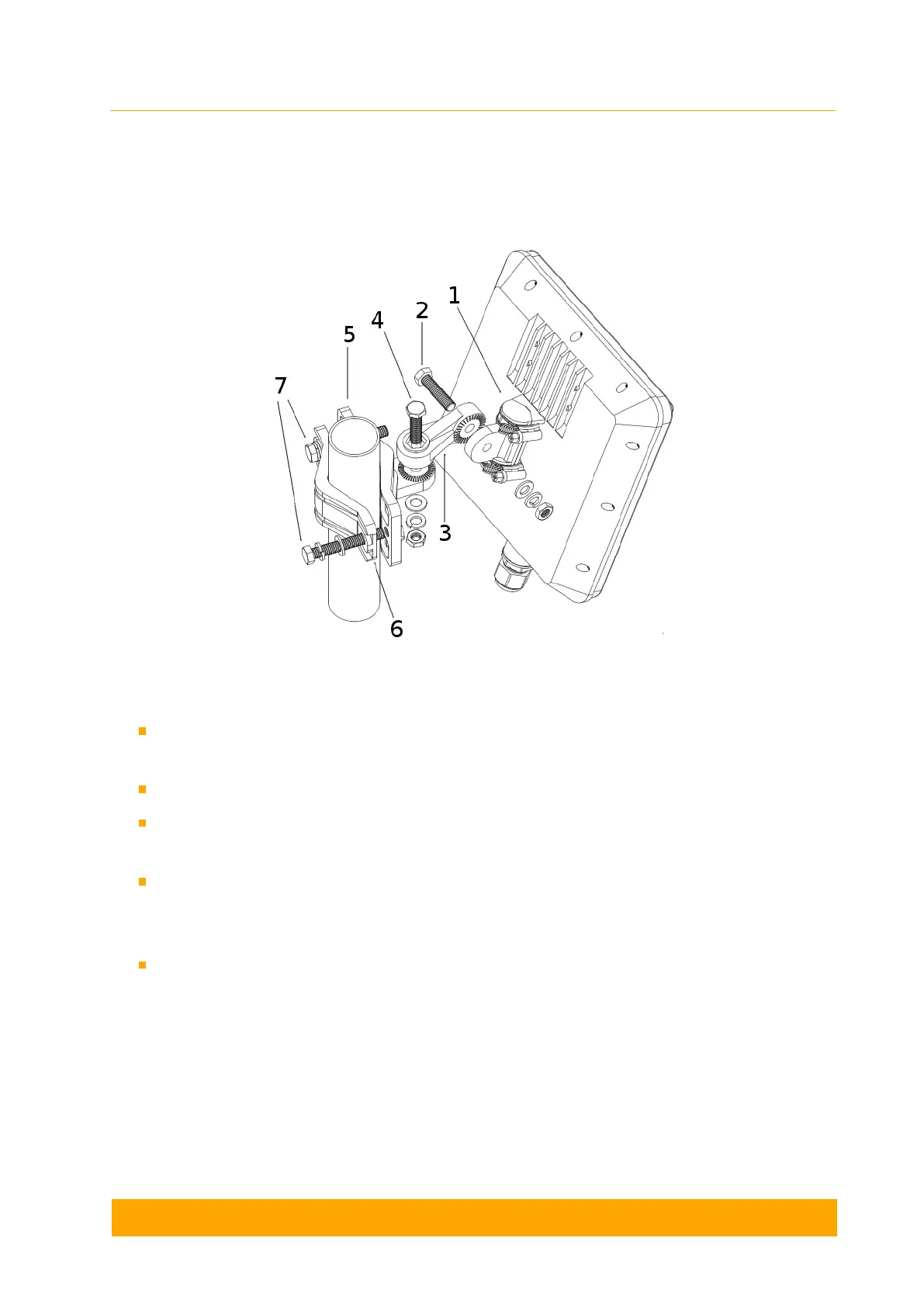

Figure - Mounting with MONT-KIT-85c scheme
In order to mount using follow the procedure below:MONT-KIT-85c
Attach the small mounting bracket (1) to the device using the supplied clamps. Ensure
that the bracket fits correctly
Attach the mount arm (3) to the bracket and tighten the bolt (2)
If mounting to a wall or other flat surface, attach the metal plate (5) to the surface,
assemble the binding and tighten bolts (2) and (4) until the unit is fixed in position
If mounting to a pole (30 to 85 mm diameter), assemble the pole mounting bracket (5, 6)
on the designated position. Using the 13mm wrench tighten the bolts (7) until the bracket
is fixed in position, attach the unit with the mounting assembly and tighten the bolt (4)
If there is a need for further alignment adjustments loosen the bolts (2) and (4), adjust
the unit's position and tighten the bolts again.
