InfiNet Wireless Quick Start Guide
Copyright © 2004-2009 by InfiNet Wireless Limited.

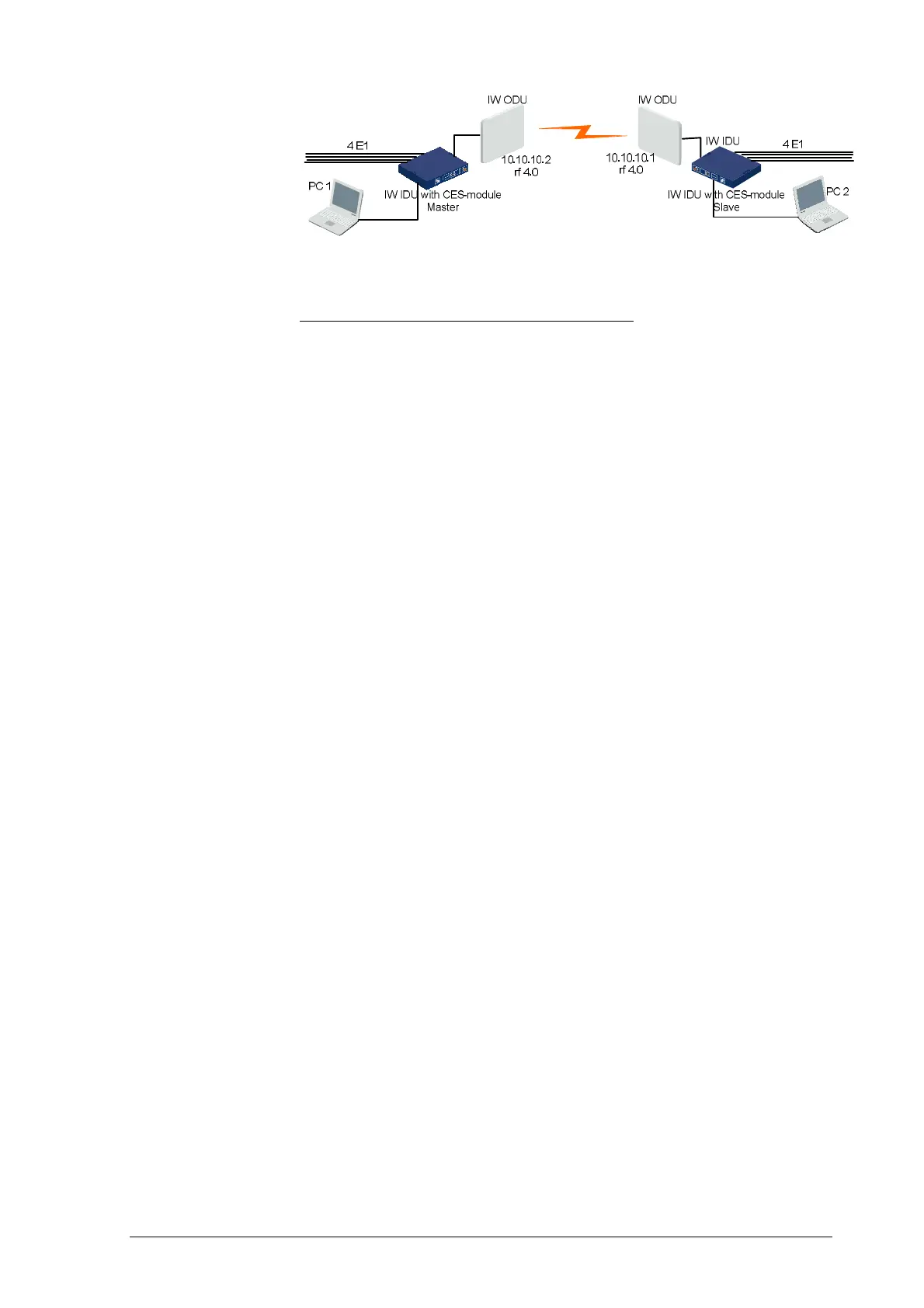

Figure 19b. E1 radio link
Follow the steps below to establish E1 radio link:
1. Provide initial Units’ configuration and start MINT following the
procedure described in “Units’ configuration” part of chapter III.
2. Choose one of the units to be Master and the other one to be Slave.
3. On Master device configure list of E1 ports to transmit data and start
CES-over-WLAN mode. Example:
ces ports 0 2
ces start
4. On slave device set mode and synchronization. In this example we will
set e1 mode with recovery synchronization mode (frequency is
restored from CES-over-WLAN packet flow). Other settings (except ces
adjust) will be received from Master device. Start CES-over-WLAN
mode. Example:
ces mode e1 recovery
ces start
5. Now E1 radio link is established.
6. To view it’s status and statistics you can use the following command:
ces stat
