InfiNet Wireless Quick Start Guide
Copyright © 2004-2009 by InfiNet Wireless Limited.
II.Getting access to the unit
1. PC/Laptop/LAN connection
Cabling (lab)
The sequence of actions to be performed in order to connect the unit to the
PC/Laptop is the following:
1. Unpack the equipment
2. If you do not have a service cable soldered, please do it using special
connectors included into the package according to the soldering scheme
located in the “Supplementary information” section. STP cable cat 5 or cat 5E
should be used.
3. Locate IDU (blue case) and ODU (white case). Using STP Service cable
connect ODU and IDU. Service cable sockets are marked on the diagrams
below
IDU-5000-SCR
IDU-5000-CPE

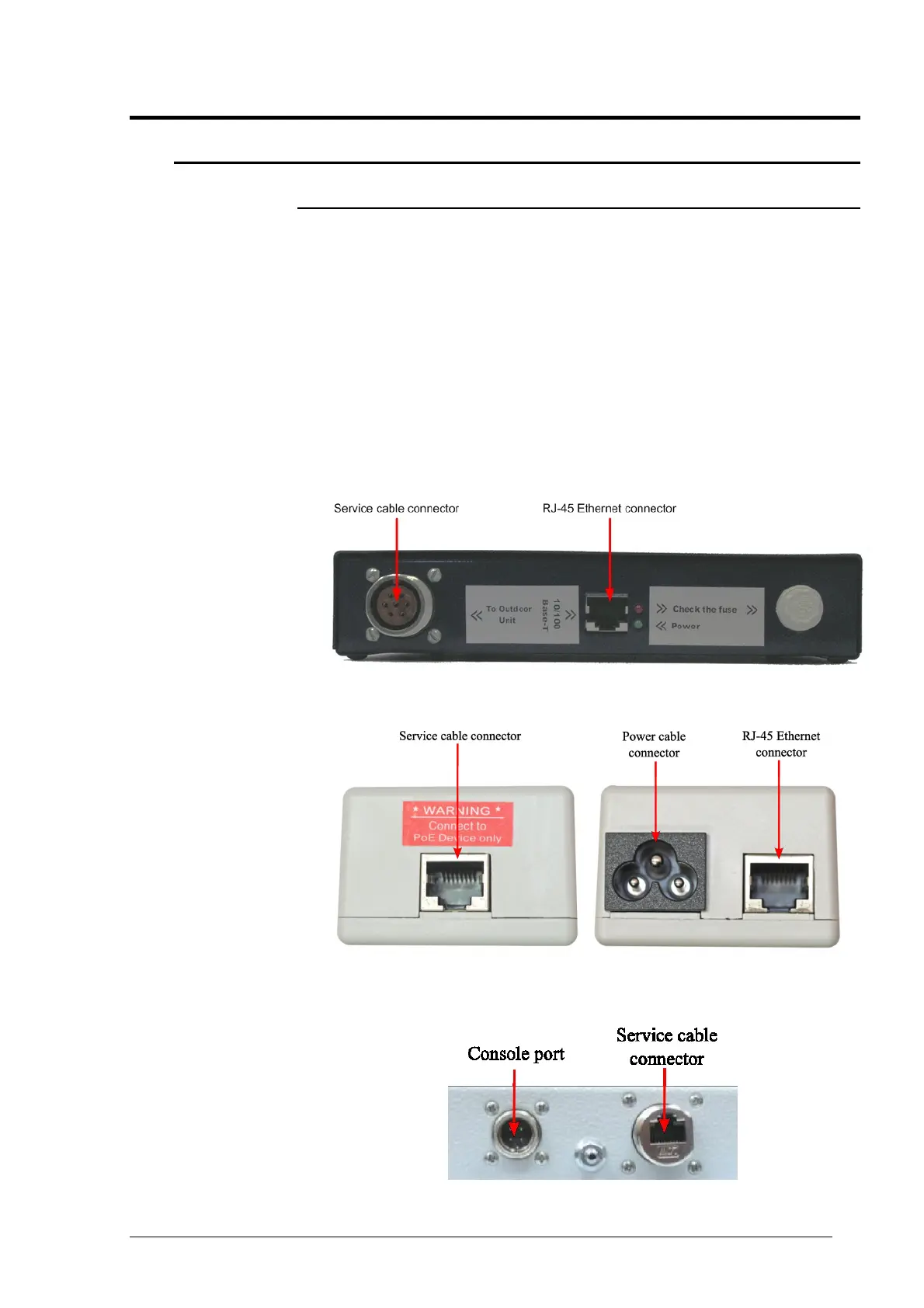

Figure 1. IDUs Fronts
Figure 2. RJ-45 ODU Front (fragment)
