Infoblox 2200 Series Rack Mounting Procedures
For the Infoblox 2200 Series Platforms 21

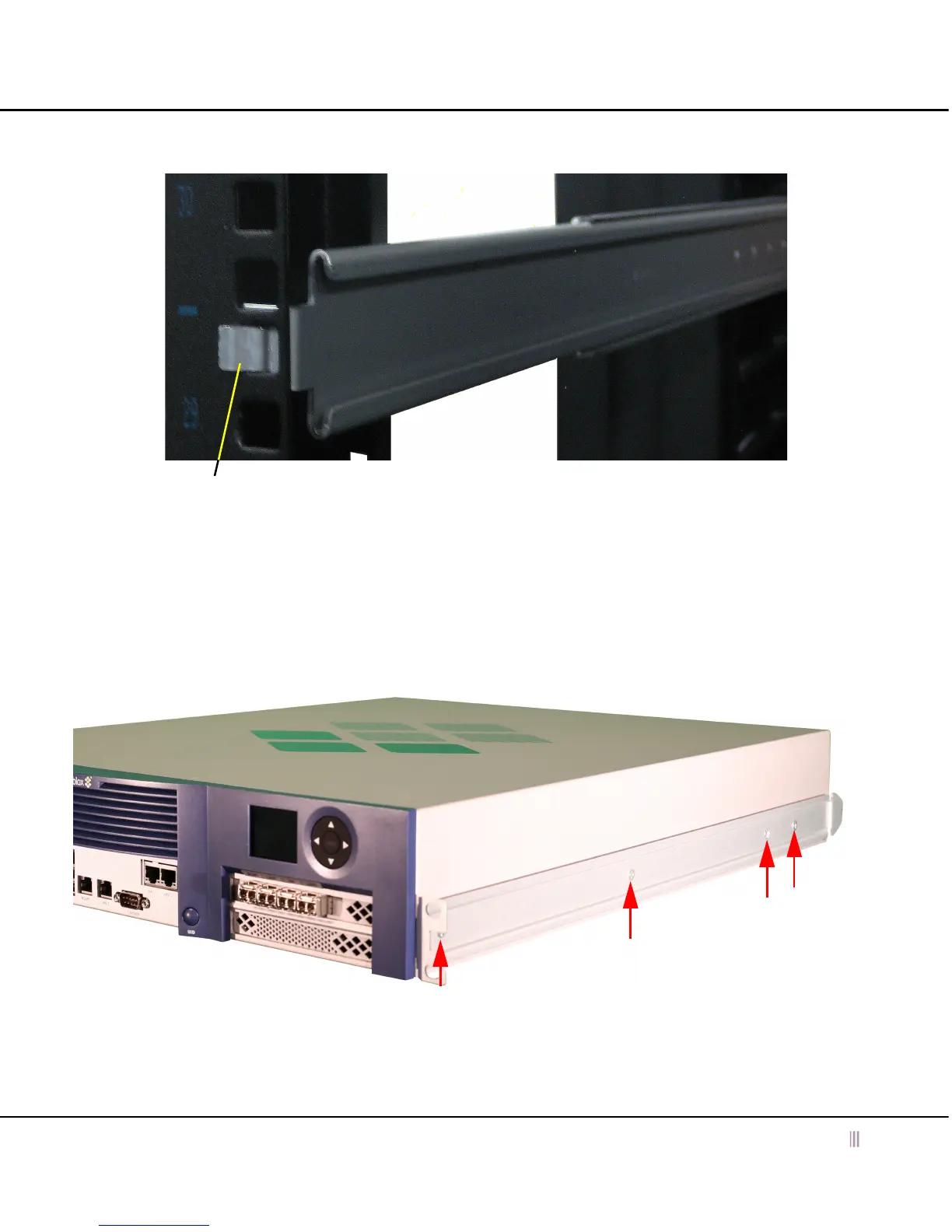

Figure 12 Catch tab fastens on front posts of designated space
3. Extend the rack rail assembly backwards, align the mounting holes on the chassis slide rails with the required
cage nuts, and fasten the back end of the rack rail to the two cage nuts on the rear post of the designated space.
As noted, the rack rail assembly has an extension range from the minimum of 600mm to a maximum of 900mm.
4. Perform Steps 2 and 3 for the second rack rail assembly.
5. Attach the chassis slide rails to each side of the chassis with four (4) flathead 8-32 screws, in the orientation
shown in Figure 13.
Figure 13 Chassis slide rails Installation
6. Lift the appliance and position it in front of the equipment rack.
7. Align the chassis slide rails on the appliance with the rack rail assemblies on the posts of the equipment rack.
8. Slide the appliance into the rack rail assembly.
9. Secure the rack ears to the rack with two (2) 10-32 screws on each side of the rack.
