InFocus IN2102 User Manual

24

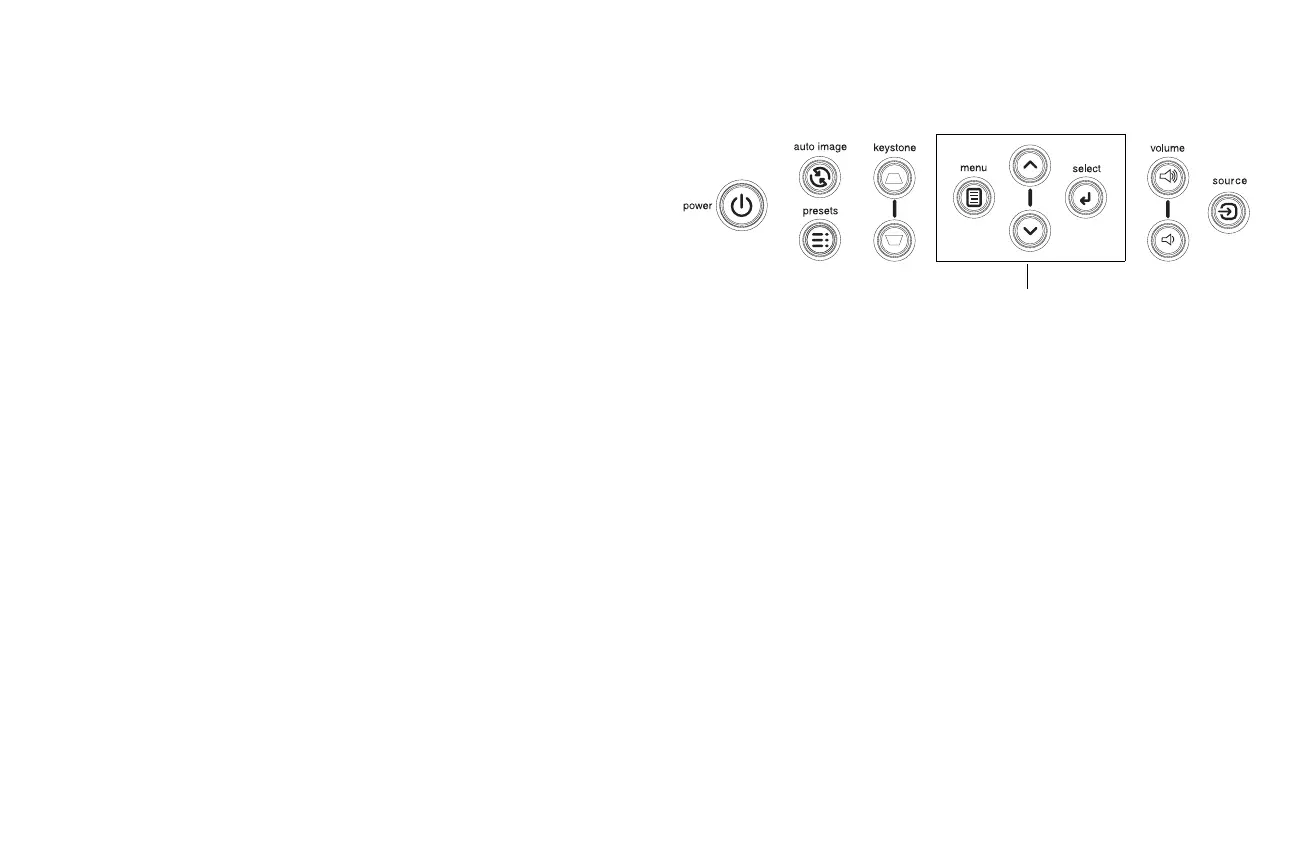

Using the keypad buttons
Most buttons are described in detail in other sections, but here is an over-
view of their functions:
Power–turns the projector on and off (page 10).
Auto Image–resets the projector to the source.
Presets–cycles through the available preset settings (page 28).
Keystone–adjusts squareness of the image (page 11).
Menu–opens the on-screen menus (page 27).
Select–confirms choices made in the menus (page 27).
Up/Down arrows–navigates to and adjusts settings in the menus (page 27).
Vol u me –adjusts sound (page 23).
Source–changes the active source.
menu navigation
buttons

InFocus IN2102 Specifications

General

Matrix size	0.55 \
Projection distance	10 m
Vertical scan range	50 - 85 Hz
Horizontal scan range	31 - 79 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-20 - 20 °
Aspect ratio	4:3, 5:4, 16:9
RS-232 ports	1
Dimensions (WxDxH)	297.2 x 228.6 x 99.1 mm
Power requirements	100 - 240, 50 - 60 Hz
Connectivity technology	Wired
Lamp power	200 W
Light source type	Lamp
Service life of light source	2500 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	2 W
Microphone in	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	2
Noise level	35 dB
Certification	UL, c-UL, FCC-A, CE, GOST, TUV GS, CCC, IRAM, NOM, C-Tick, MIC, eK, PSB
Power consumption (typical)	250 W
Operating temperature (T-T)	5 - 31.11 °C

Weight and Dimensions

Weight	3130 g
Package weight	5260 g
