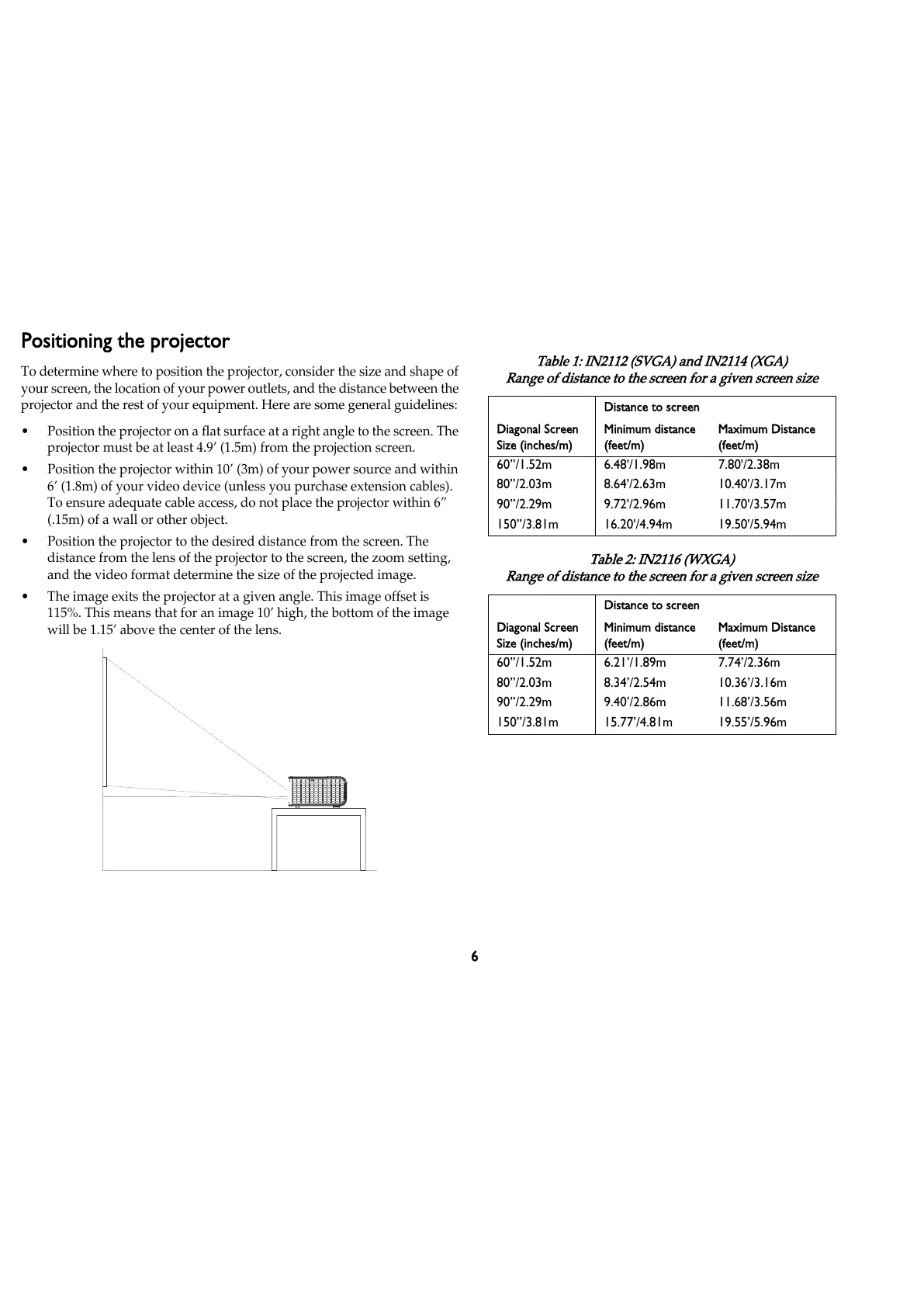

Positioning the projector
To determine where to position the projector, consider the size and shape of
your screen, the location of your power outlets, and the distance between the
projector and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen. The
projector must be at least 4.9’ (1.5m) from the projection screen.
• Position the projector within 10’ (3m) of your power source and within
6’ (1.8m) of your video device (unless you purchase extension cables).
To ensure adequate cable access, do not place the projector within 6”
(.15m) of a wall or other object.
• Position the projector to the desired distance from the screen. The
distance from the lens of the projector to the screen, the zoom setting,
and the video format determine the size of the projected image.
• The image exits the projector at a given angle. This image offset is
115%. This means that for an image 10’ high, the bottom of the image
will be 1.15’ above the center of the lens.
Table 1: IN2112 (SVGA) and IN2114 (XGA)
Range of distance to the screen for a given screen size
Diagonal Screen
Size (inches/m)
Distance to screen
Minimum distance
(feet/m)
Maximum Distance
(feet/m)
60”/1.52m 6.48'/1.98m 7.80'/2.38m
80”/2.03m 8.64'/2.63m 10.40'/3.17m
90”/2.29m 9.72'/2.96m 11.70'/3.57m
150”/3.81m 16.20'/4.94m 19.50'/5.94m
Table 2: IN2116 (WXGA)
Range of distance to the screen for a given screen size
Diagonal Screen
Size (inches/m)
Distance to screen
Minimum distance
(feet/m)
Maximum Distance
(feet/m)
60”/1.52m 6.21’/1.89m 7.74’/2.36m
80”/2.03m 8.34’/2.54m 10.36’/3.16m
90”/2.29m 9.40’/2.86m 11.68’/3.56m
150”/3.81m 15.77’/4.81m 19.55’/5.96m
