Max. 27.5"(69.8cm) 75.7"(192.3cm) 126.2"(320.5cm) 176.7"(448.7cm) 227.1"(576.9cm) 302.8"(769.2cm)
Min. 30.3"(76.9cm) 68.7"(174.4cm) 114.4"(290.7cm) 160.2"(407.0cm) 206.0"(523.3cm) 274.7"(697.7cm)
Max.(WxH)
24.2" x 18.2"
(61.5 x 46.2cm)
60.8" x 45.4"
(154.4 x 115.3cm)
101.0" x 75.7"
(256.5 x 192.3cm)
141.3" x 106.0"
(358.9 x 269.2cm)
181.7" x 136.3"
(461.5 x 346.2cm)
242.3" x 181.7"
(615.4 x 461.5cm)
Min.(WxH)
22.0" x 16.5"
(55.9 x 41.9cm)
54.9" x 41.2"
(139.4 x 104.6cm)
91.6" x 68.7"
(232.7 x 174.5cm)
128.2" x 96.1"
(325.6 x 244.1cm)
164.8" x 123.6"
(418.6 x 313.9cm)
219.7" x 164.8"
(558.0 x 418.6cm)
3.9'(1.2m) 9.8'(3.0m) 16.4'(5.0m) 23.0'(7.0m) 29.5'(9.0m) 39.4'(12.0m)
68.7"
(174.4cm)
114.4"
(290.7cm)
160.2"
(407.0cm)
206.0"
(523.3cm)
274.7"
(697.7cm)
30.3"
(76.9cm)
75.7"
(192.3cm)
126.2"
(320.5cm)
176.7"
(448.7cm)
227.1"
(576.9cm)
302.8"
(769.2cm)
3.9'
39.4'
29.5'
23.0'
16.4'
9.8'
(1.2m)
(12.0m)
(9.0m)
(7.0m)
(5.0m)
(3.0m)
27.5"
(69.8cm)
Screen
(Diagonal)
Screen Size
Distance
Diagonal
Focus Ring
Zoom Lever

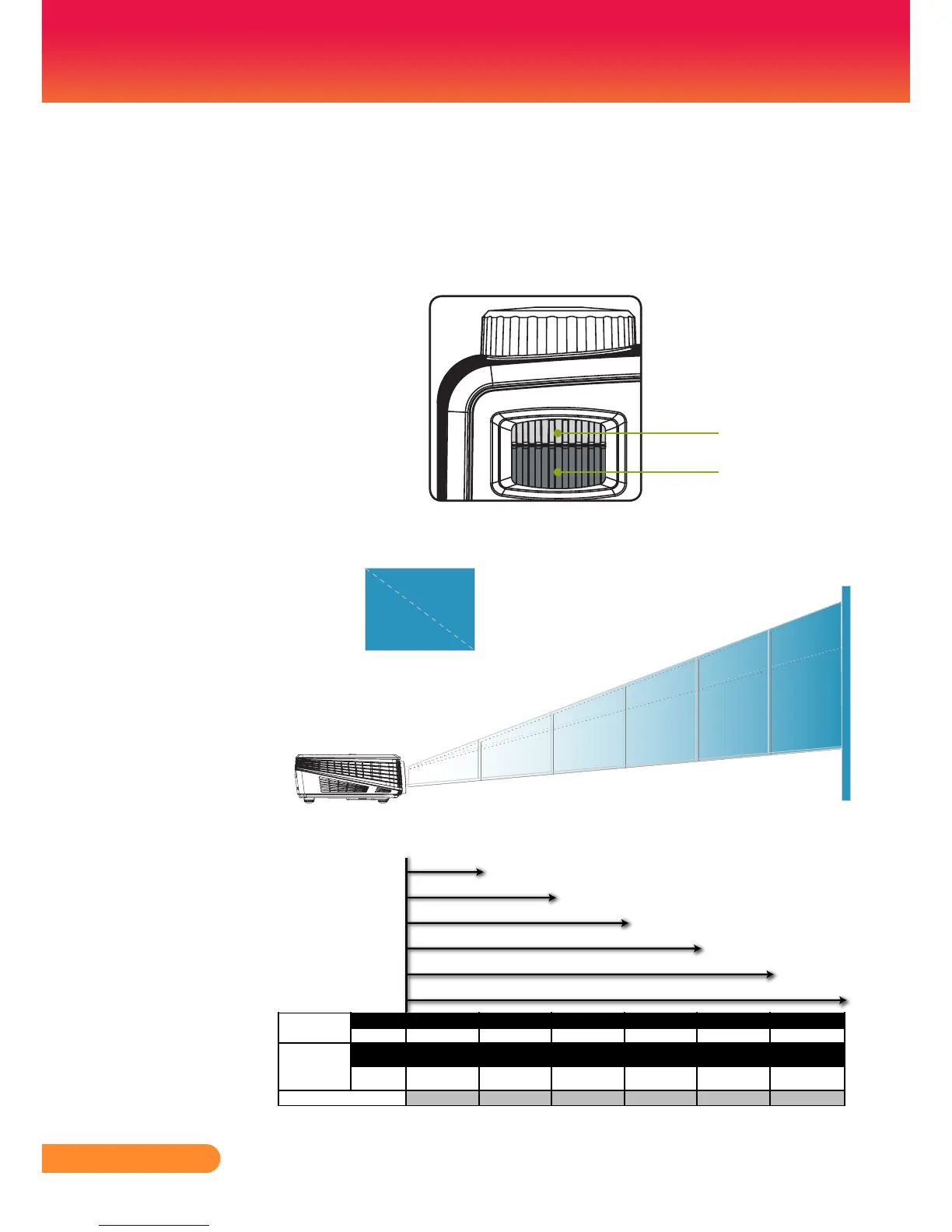

Adjusting the Projector Zoom / Focus
You may turn the zoom lever to zoom in or out. To focus the
image,rotatethefocusringuntiltheimageisclear.Thepro-
jectorwillfocusatdistancesfrom3.9to39.4feet(1.2to12.0
meters) with mechanical travel.
Adjusting Projection Image Size
This graph is for user’s reference only.
