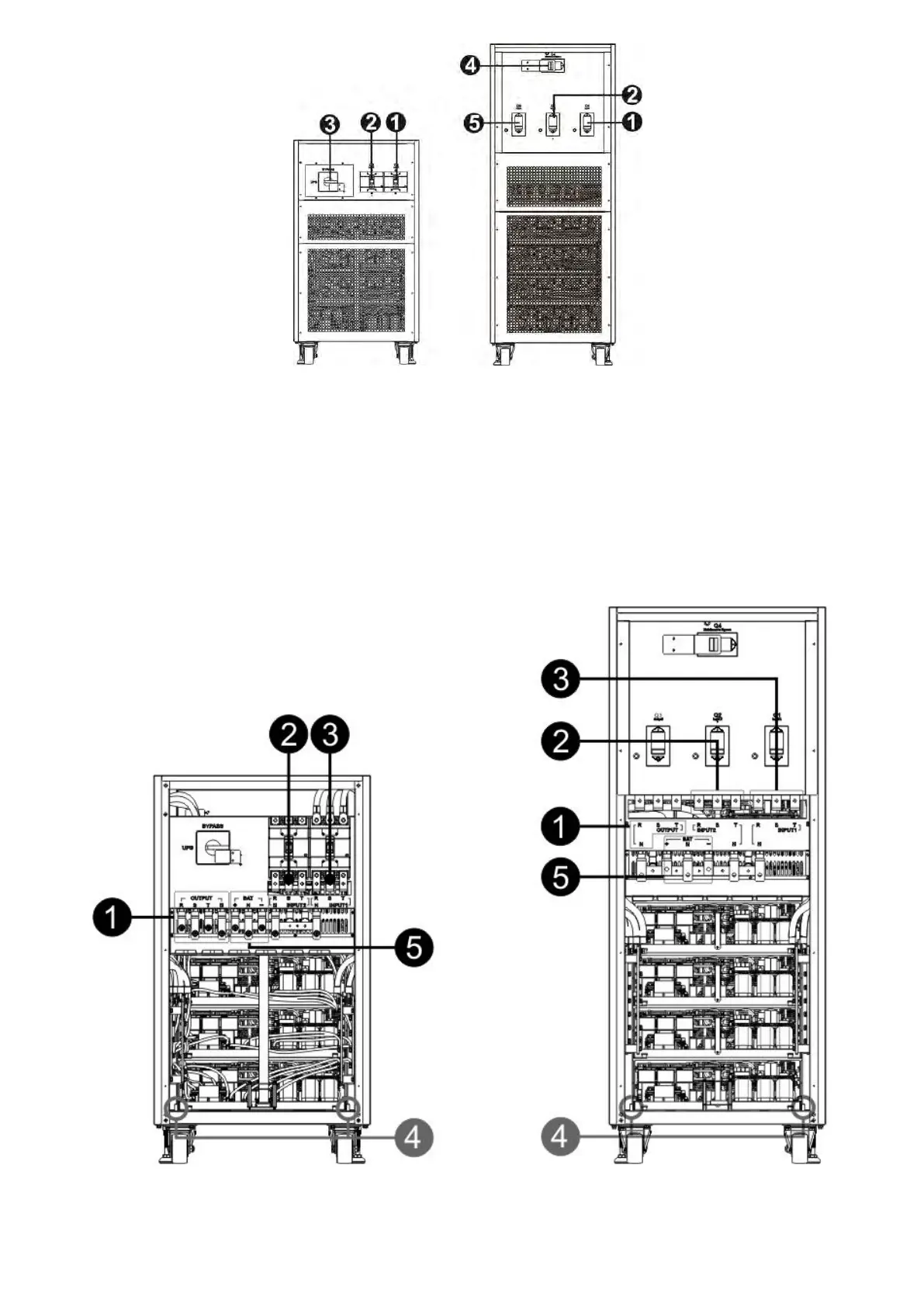

E4 Evolution II
100K/120K TT
E4 Evolution II
160K/200K TT
6. Input breaker Q1
7. Input breaker Q2
8. Output and maintenance bypass switch
9. Maintenance bypass breaker (Q4)
10. Output breaker Q3
2-4. Wiring Terminal View
E4 Evolution II 100K/120K TT S
E4 Evolution II 160K/200K TT S
