©2008 Ingersoll Rand Company Page 31
Up/Down Key – Used to changing set point
values and navigate the display.
Clear Key – Used to clear trip and warning
conditions and back out of menus.
Setup/Menu Pass Code Key – Used to enter the
code number for menu selection.
Power On LED – When compressor is running
with no fault conditions detected this LED is on.
If the LED is on solid, the unit is running loaded.
If it is flashing, the unit is running unloaded. Off
the unit is in a shutdown – fault condition.
Alarm Indicator – Flashing Red indicates a
warning condition. On solid indicates a
shutdown alarm condition

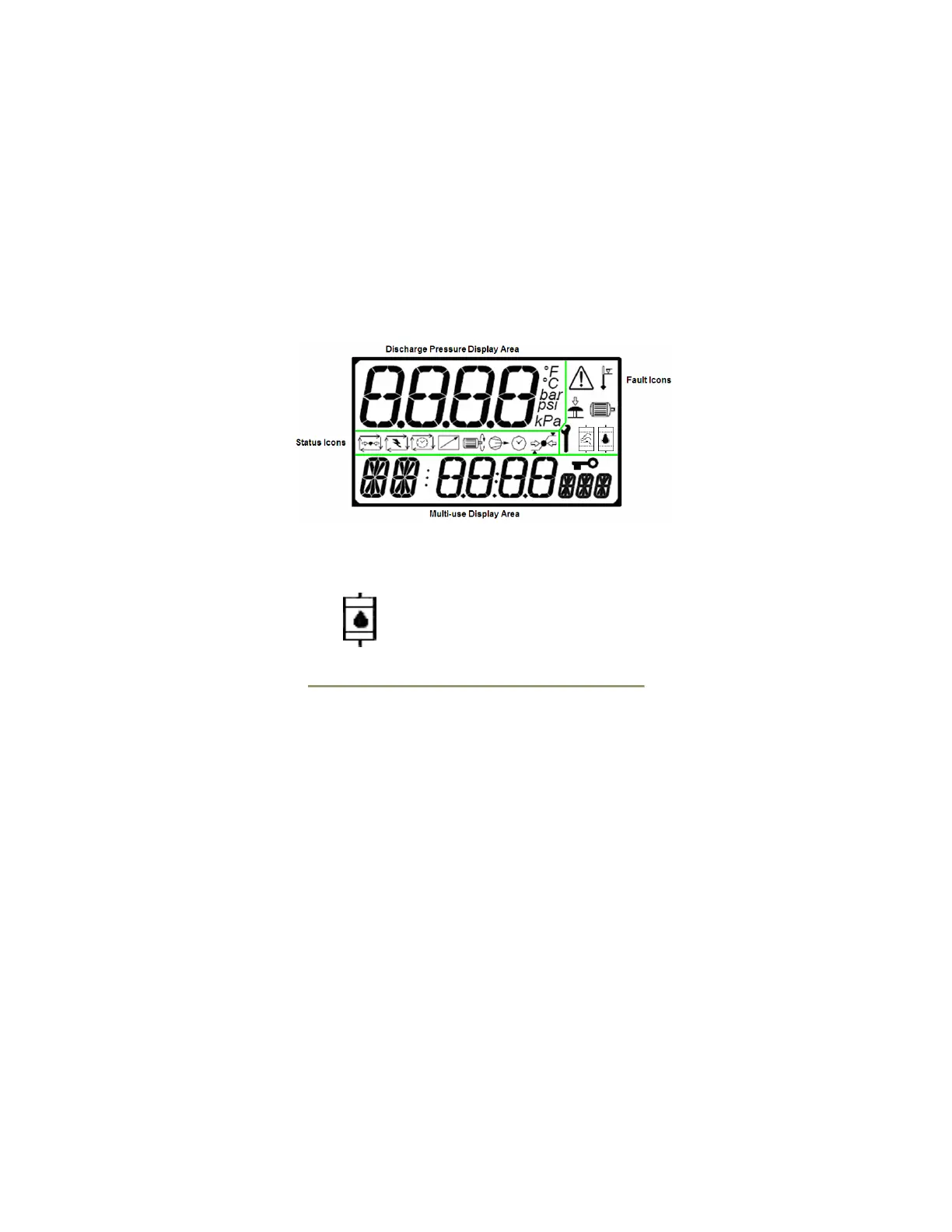

LCD Display
The displays backlight will always be on as long
as the unit is powered up and running.
Display Symbols
Change Oil Filter
