Menu Screens
In this portion of the
manual, we will discuss the
different menus that are
available from this controller
and show you examples of
the screens.
Status Screens (P00)
Status screens are viewable
by all and can be
navigated through by just
pressing the up/down
buttons on the controller, no
password is necessary.
When navigating to any
other screen, a
nonadjustable timer will
cause the controller to
switch back to the default
screen after 30 seconds of
inactivity.
6 screens can be scrolled
through to check status of
compressor. These screens
are read only and consist of
the following:

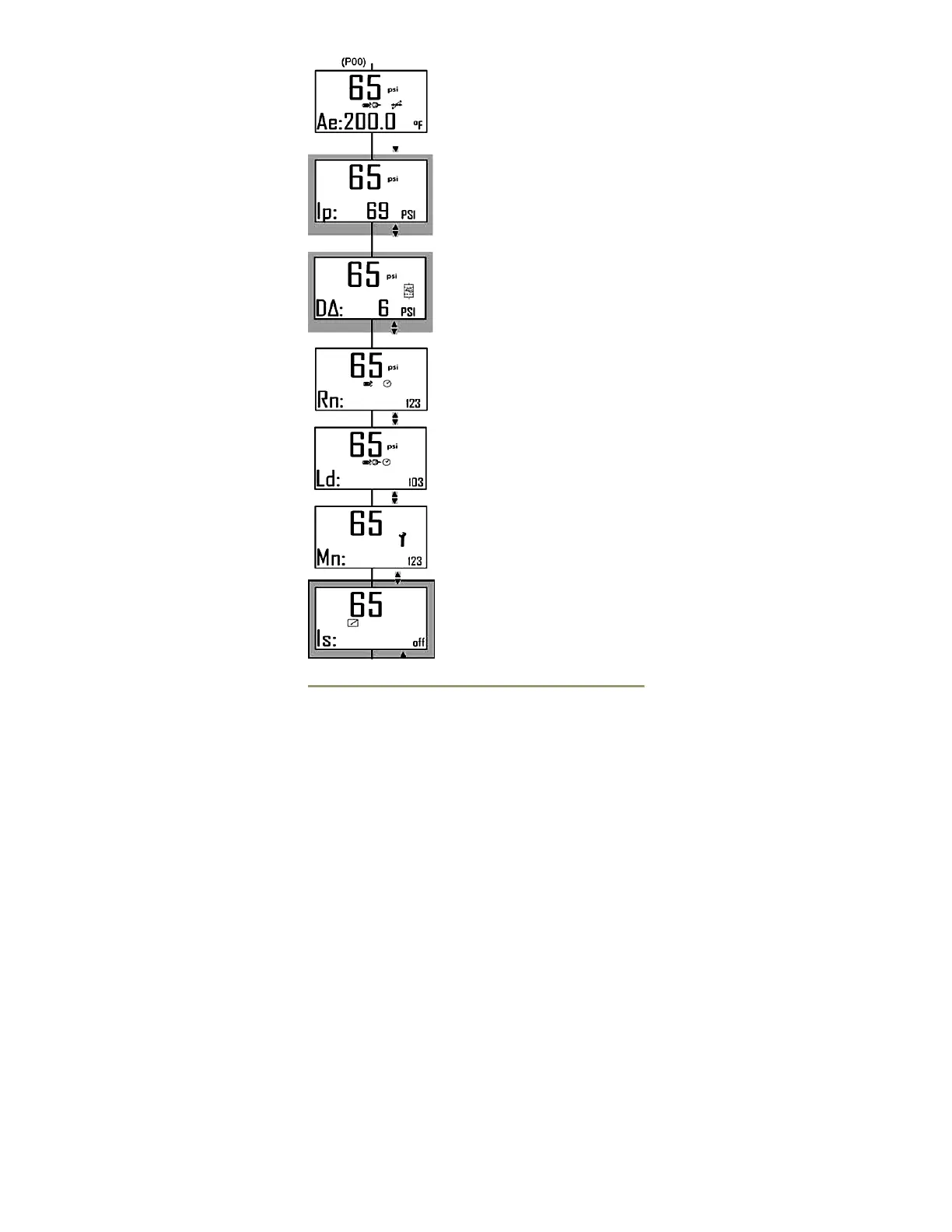

Default Screen
This is the main Status
screen, it will display the
package pressure, airend
discharge temperature, and
