58 Example wiring diagram intrusion
Programming manual
Caption
• All resistors @ 15K
• Normally-open keyswitch contact
• Siren activated by "positive removed"
• Device must be Earthed (see terminal 12)
Input programming:
IO1-IO2
Type: Delayed
Balance: DEOL
Events 1, 2, 4, 5, 6, and 8 switch output 4 ON
Events 3 and 7 switch output 4 OFF
IO3
Balance: EOL
Events 9, 11 and 12 switch output 4 ON
Event 10 switches output 4 OFF
Outputs programming:
IO4
Type: Bistable
Polarity: normally open
IO5
Already programmed by the selected parameter Enable intrusion control
The diagram illustrates an application with:
• Two DEOL zones for:
- two detectors (e.g. infrared, magnetic contacts, etc.)
- tamper and alarm return to the same input
• One balanced tamper zone for:
- horn tamper detection
- frontplate removal detection
• one alarm output, where the open-collector output controls a single
polarity changeover relay:
- self-powered external bell command
- internal bell command

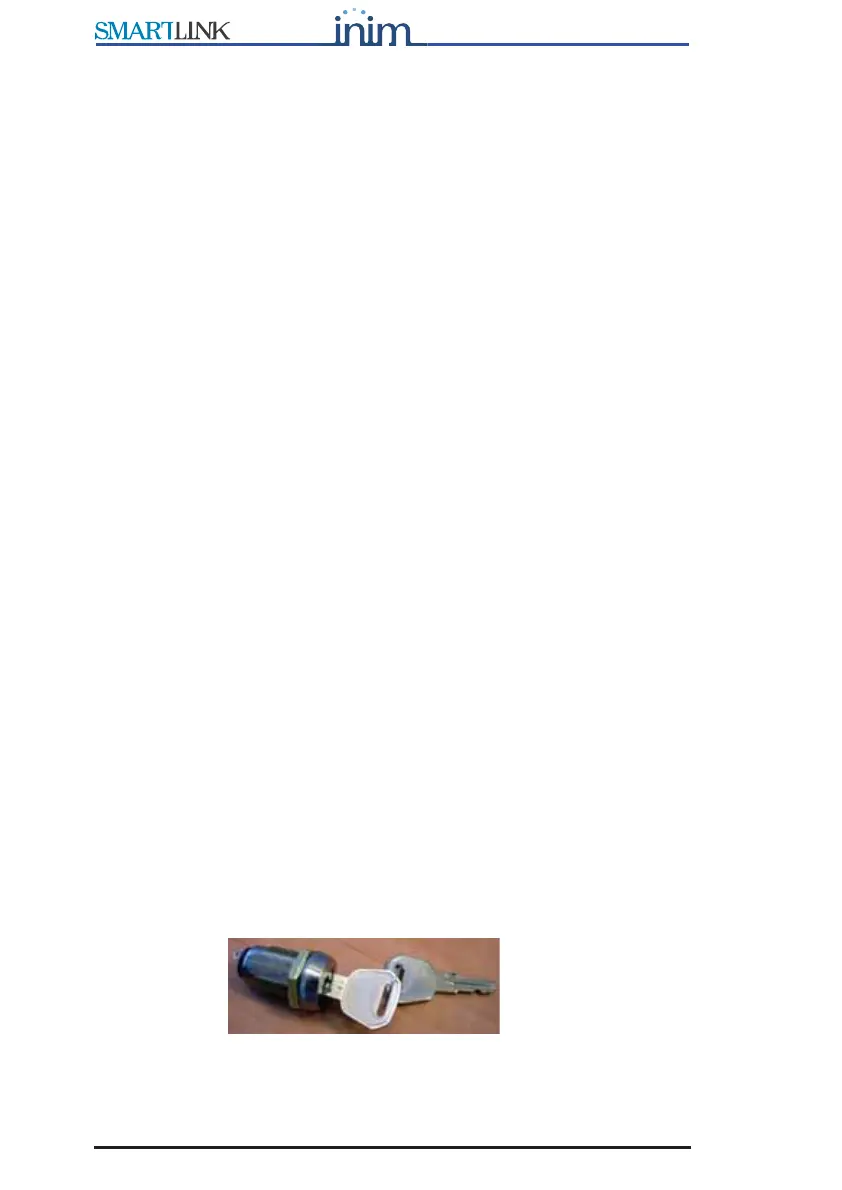

• keyswitch input to arm/disarm intrusion control panel
