INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC
18

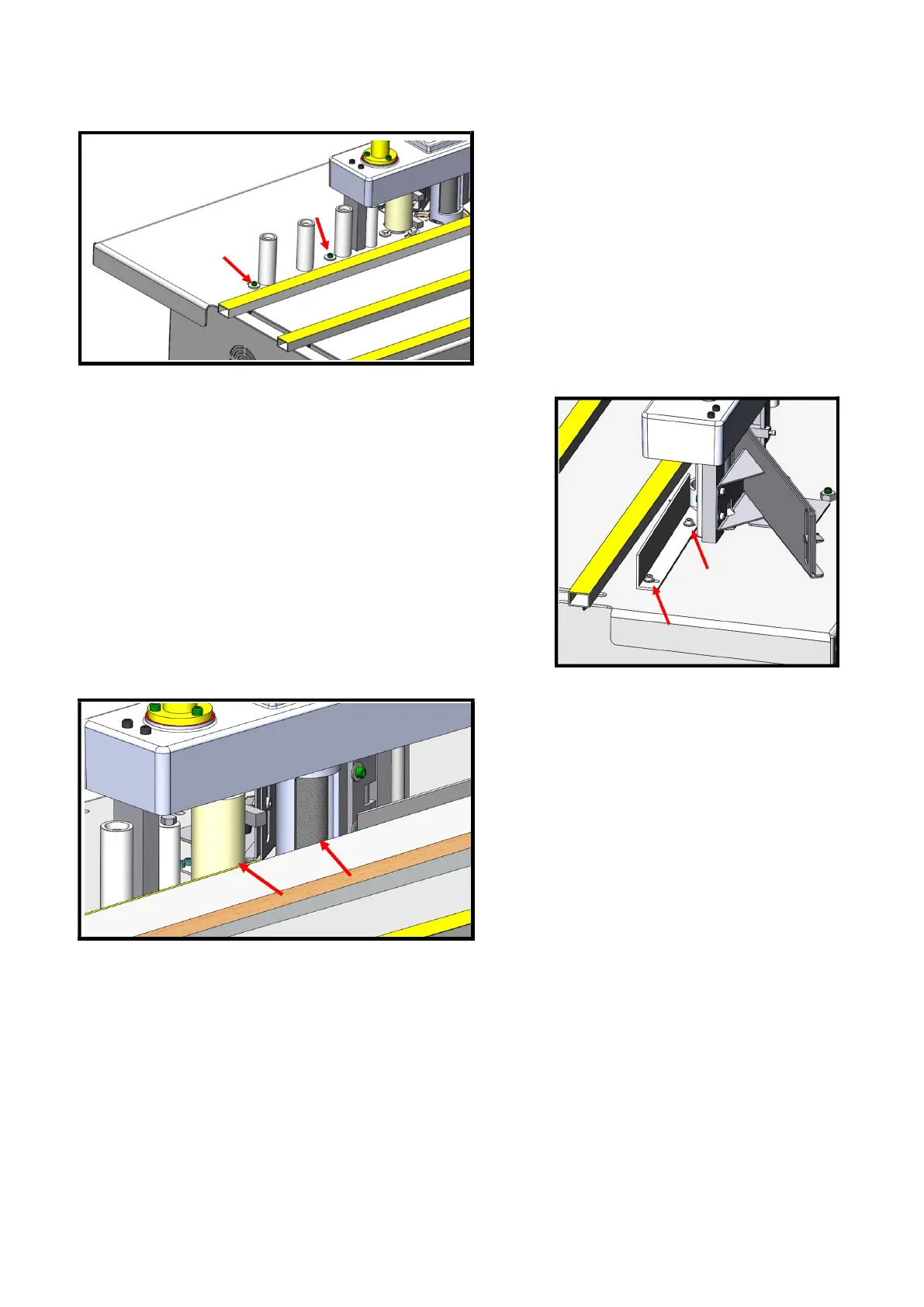

Fig. 40
 Loosen the rollers adjusting bolts, as
fig. 40.
 Loosen the fence bolts as shown in fig. 41.
Fig. 41
Fig. 42
 Place the MDF piece so that it is
supported on the two indicated
points, as shown in fig. 42.
