INMES Industrial ltda – COLADEIRA DE BORDA IC-1000 ELECTRONIC
19

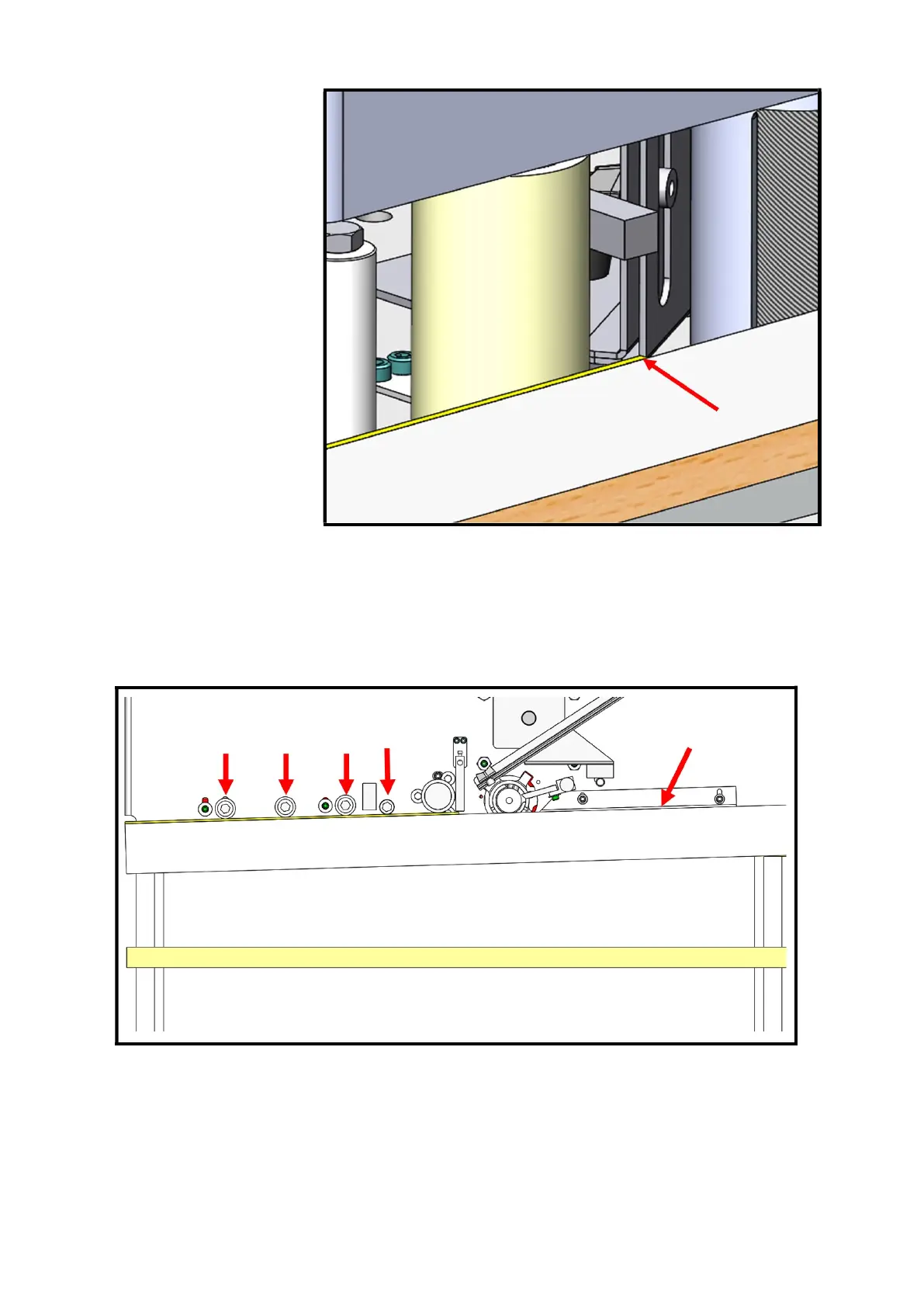

 Note that the part of the
MDF board where the
edgeband is bonded
cannot exceed the limit
indicated, per fig. 43.
Fig. 43
 Adjust the rollers and the fence so that they are perfectly supported by the MDF board as shown in
fig. 44, keeping the board constantly touching the support points. Once they are adjusted, tighten all
the bolts.
Fig. 44
