10
Item 󶍾
Voltage of the control
circuit

Rated load current 0.1 A/point, 0.5 A/COM
Max. voltage drop at ON 0.2 V (typical)
Leakage current at OFF Less than 0.1 mA
Output frequency
200 kHz (an external equivalent load above 12 mA is
required)
Common terminal 4 points share 1 common terminal
The total length of the high-speed I/O cables should be within 3.0 m;
When the high-speed input is A or B phase, the single-phase pulse duty cycle
must be greater than 40%.
3 Electrical Design Reference
3.1 Terminal Layout
II
I
0 1 2
3 7654
30
1 4 5 6 72
4 5 6
73210
RUN
ERR
SF
BF
RUN
STOP
CN4 EtherCATCN3 EtherNET
CN1 RS485
CN5
MFK
AM600-CPU
1608TN
CN2 CAN
3536
2 1
3536
2 1
CANERR
CANRUN

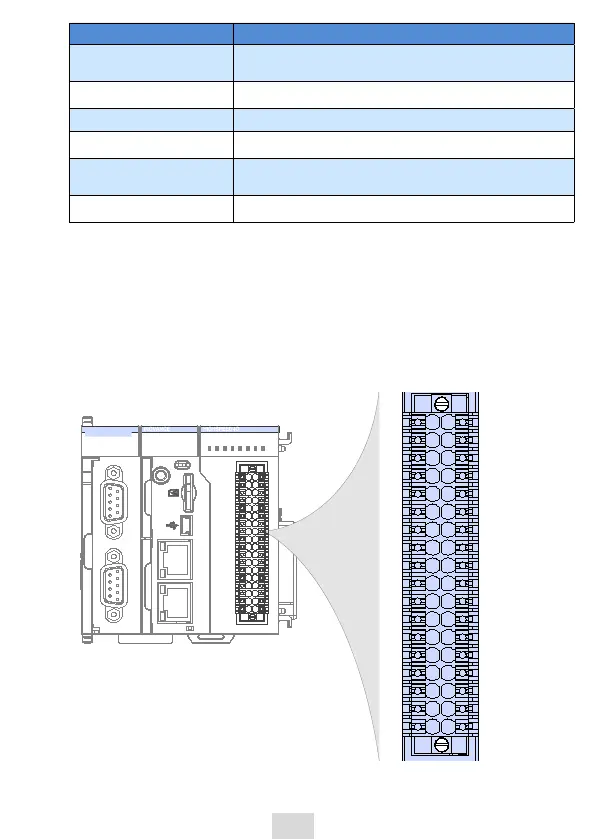

Figure 2 Terminal layout of CPU module
