Inovance AM400 Series

20
MF·K
RUN/STOP
CN1 RS485
CN3 EtherNET CN4 EtherCAT
BF
SF
ERR
RUN
0123 7654
27654103
45673210
I
II
在块坋坈坕坑坈块圃坆坄坅坏坈
圳圦
HMI
LAN
圦坒坐坓坘块坈坕
在块坋坈坕坑坈块圃坆坄坅坏坈
圶坚坌块坆坋
AM600-CPU1608TN
CN2 CAN
CN
5
3536
21
CANRUN
CANERR

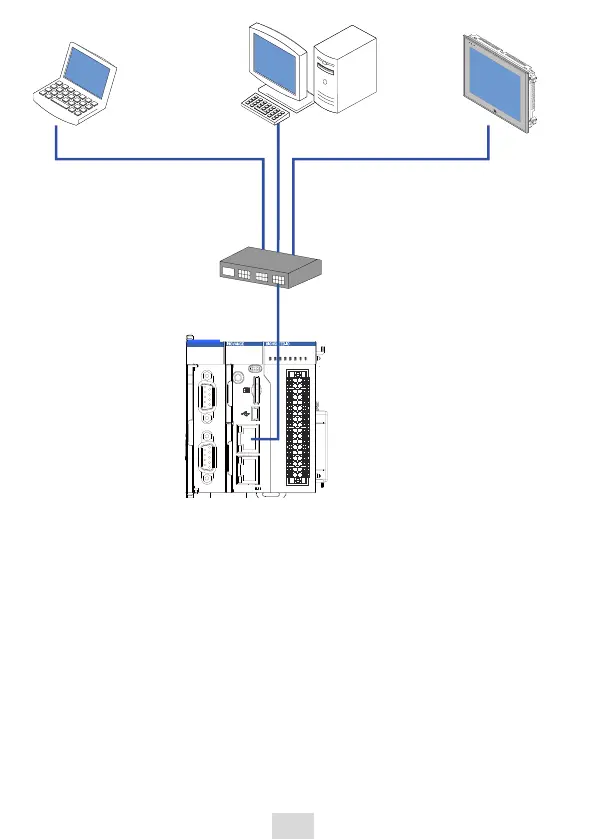

Figure 11 Connection between CPU module and other devices through a switch
󶏎Wiring
To improve communication reliability, the Ethernet cable must be injection-
molded Cat5 shielded twisted pair and with an injection molded and iron shelled
connector.
6 Programming Tool
6.1 Programming tool download
Inovance provides InoProShop as the user programming tool for AM403 medium-
sized PLCs. It is free and you can obtain a DVD copy from our distributors or
download it from our website www.inovance.com, where you can also download
documents about AM403 PLC products and their applications.
Due to the continuous improvement of products and information by the
