Chapter3Operation,DisplayandTrialRunning
13
Chapter 3 Operation, Display and Trial Running
3.1 Operation and Display
You can modify the parameters, monitor the working status and start or stop the servo
drive by operating the operation panel. The following figure shows the operation panel.

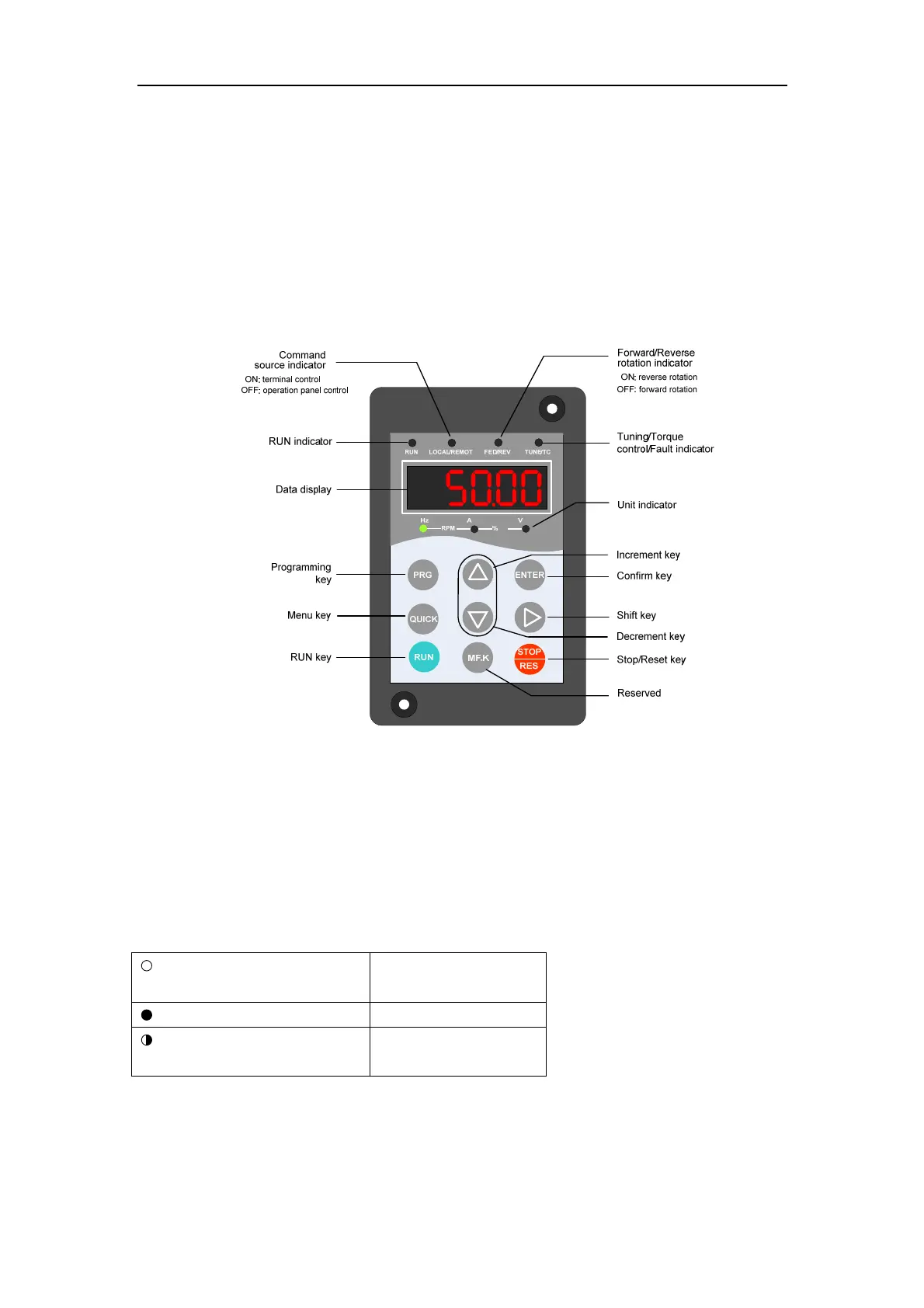

Figure 3-1 Diagram of the operation panel
3.1.1 Description of Function Indicators
RUN
ON indicates that the servo drive is in the running state, and OFF indicates that the
servo drive is in the stop state.
LOCAL/REMOT
It indicates whether the servo drive is operated by means of operation panel, terminal
or communication.
LOCAL/REMOT: OFF Operation panel
control
LOCAL/REMOT: ON Terminal control
LOCAL/REMOT: blinking Communication
control
FWD/REV
ON indicates reverse rotation, and OFF indicates forward rotation.
TUNE/TC
