Chapter 2 Installation and Wiring
-
13
-
Chapter 2 Installation and Wiring
2.1 Mechanical Installation
2.1.1 Installation environment requirements
The MCTC-PES-E1 system is installed in the main control cabinet of the machine room of
the escalator or moving walkway. Keep the installation room clean, well ventilated and dust
& moisture proong
.
when only the control board without the protective guard is installed,
take other dust & moisture proong measures.
The installation environment must satisfy the
requirements described in Table 2-1. Monarch will assume no risk or responsibility if a fault
occurs in the system because the installation environment requirements are not satisfied.
Table 2-1 Installation environment requirements
Item Requirements
Ambient temperature -20
°C
to +65
°C
Humidity Less than 95% RH, without condensing
Mounting location
Free from conducting materials, corrosive gas, combustible gas,
metal powder, oil dirt and dust
IP level
IP00 (no IP level requirement on board)
IP5X (with housing)
Note: The MCTC-PES-E1 system has the housing that satisfies
IP5X. If you purchase the board only, install the board in the control
cabinet or other housing satisfying IP5X.
2.1.2 Installation Dimensions

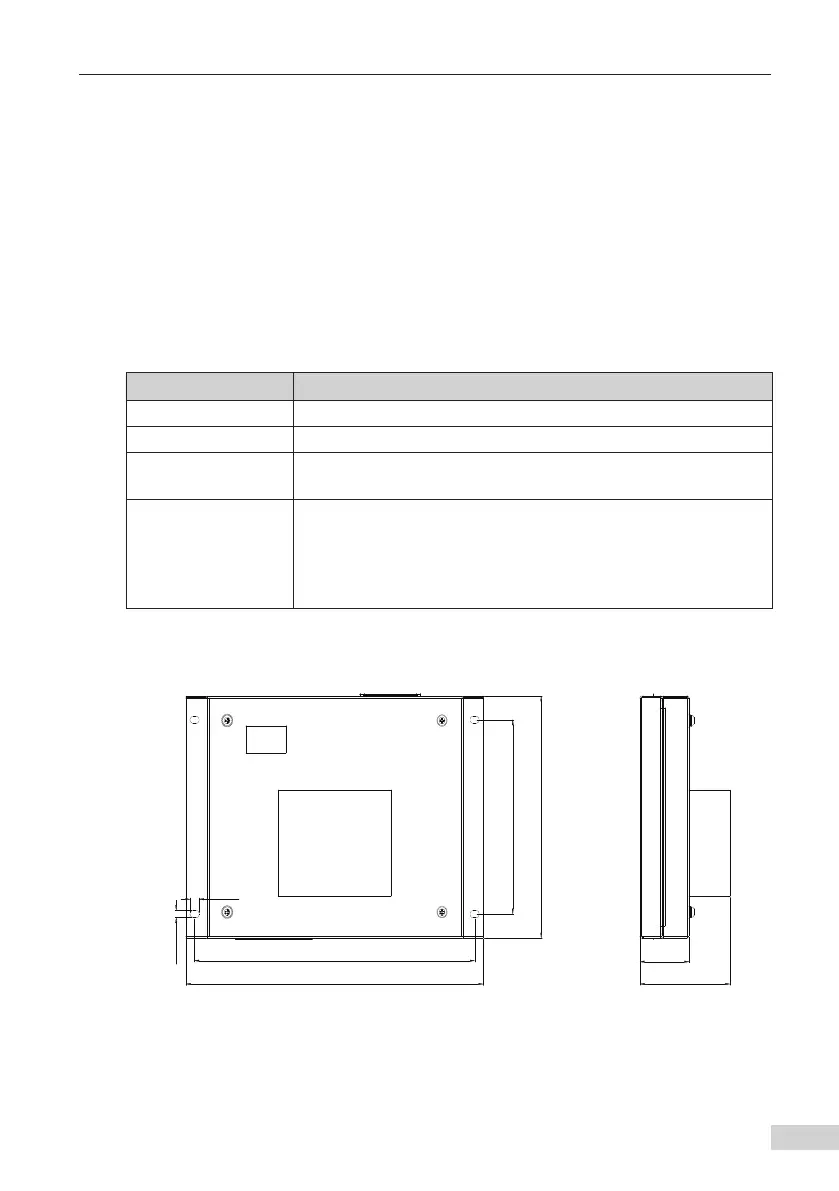

The following figure shows the dimensions of the MCTC-PES-E1 system.
260.0
245.0
4-5.5
4-8.0
150.0
187.0
42.8
78.8
Switching-mode
power supply
Figure 2-1 Dimensions of the MCTC-PES-E1 system
(Unit:mm)
Only the control board (without the protective guard) is required in some applications. The
following figures show the physical appearance and installation dimensions of the control
board.
