Inovance Monarch MCTC-PEC-E1 User Manual

Chapter 3 Operation Panel
-
28
-
Chapter 3 Operation Panel

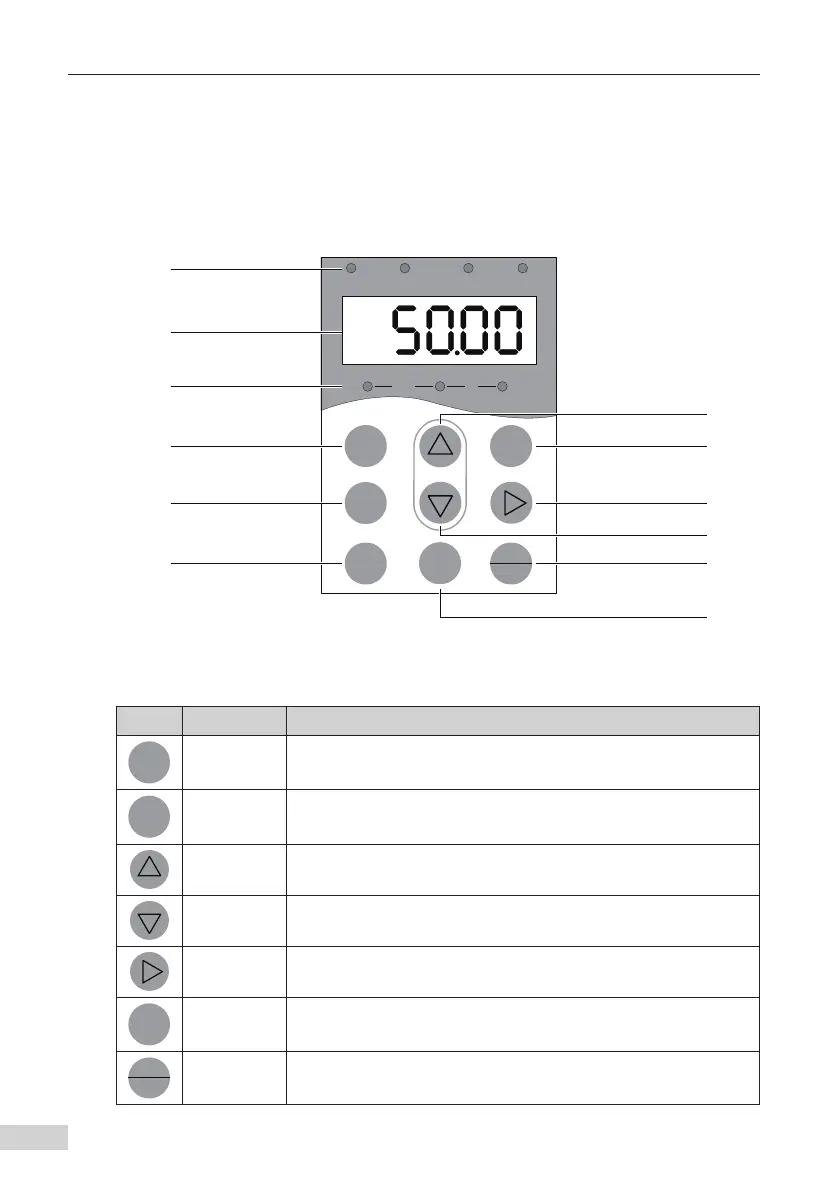

3.1 LED Operation Panel
The MCTC-PES-E1 system has a keypad with an LED display. You can use the keypad
to modify the parameters, monitor operation status and check fault information. See the
following figure for details.
MF.KRUN
STOP
RES
QUICK
PRG ENTER
RUN
LOCAL/ REMOT FWD/ REV TUNE/TC
Reserved
Data display
Programming key
Reserved
Reserved
Unit indicator
Up key
Shift key
Stop/Reset key
Confirm key
Down key
Reserved
RPM
%
A VHz
Figure 3-1
Panel description
3.1.1 Button Description
Button Name Function
PRG
Programming
button
Enter or quit level-1 menu.
ENTER
Conrm but-
ton
Enter the menus level by level, and conrm the parameter settings.
Incremental
button
Increase data or parameter values.
Decrease
button
Decrease data or parameter values.
Move button Select parameters cyclically in the stop and running status interface.
RUN
Running
button
Function Reserved
STOP
RES
Stop/Reset
reset the system in the fault alarming state.
