Chapter 2 Installation and Wiring
-
20
-
Pallet
Beam X
Beam Y
Sensor 5/6

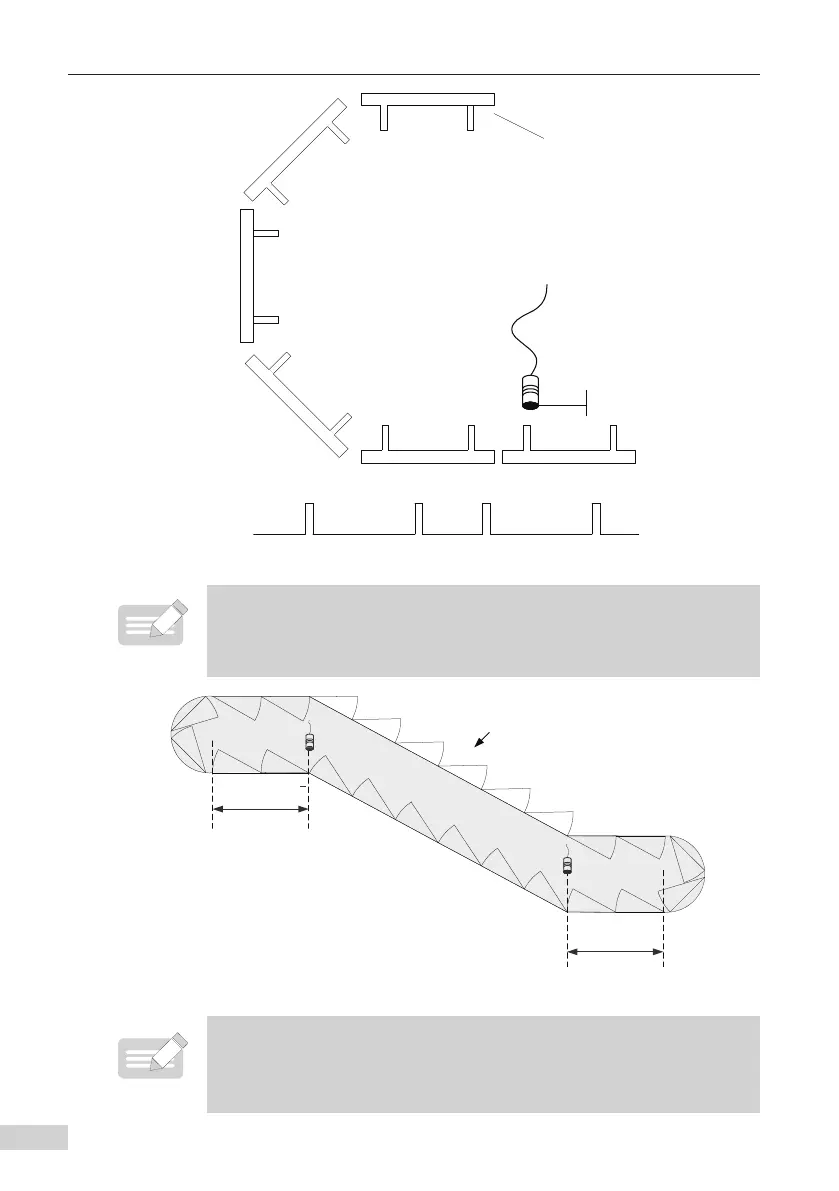

Figure 2-7 Installation position of the step/pallet loss sensor for moving walkway
◆
The sensor must be installed within the sections where the bottom steps/
pallets moves horizontally, as shown in the following figure. The upper
sensor must be installed between A and A' and the lower sensor must be
installed between B and B'.
Figure 2-8 Installation positions of the sensors
Besides the MCTC-PES-E1 and the six sensors, you need to prepare the
following two devices:
◆
Relay at front end of signal X1 on the MCTC-PES-E1 board
◆
Switch for manual fault reset
