Instron 34SC-5 - Install a 2519 Load Cell (Capacities 1 Kn through 5 Kn)

Chapter: Assemble the load string
78 M10-17313-EN
Install a 2519 load cell (capacities 1 kN through 5 kN)

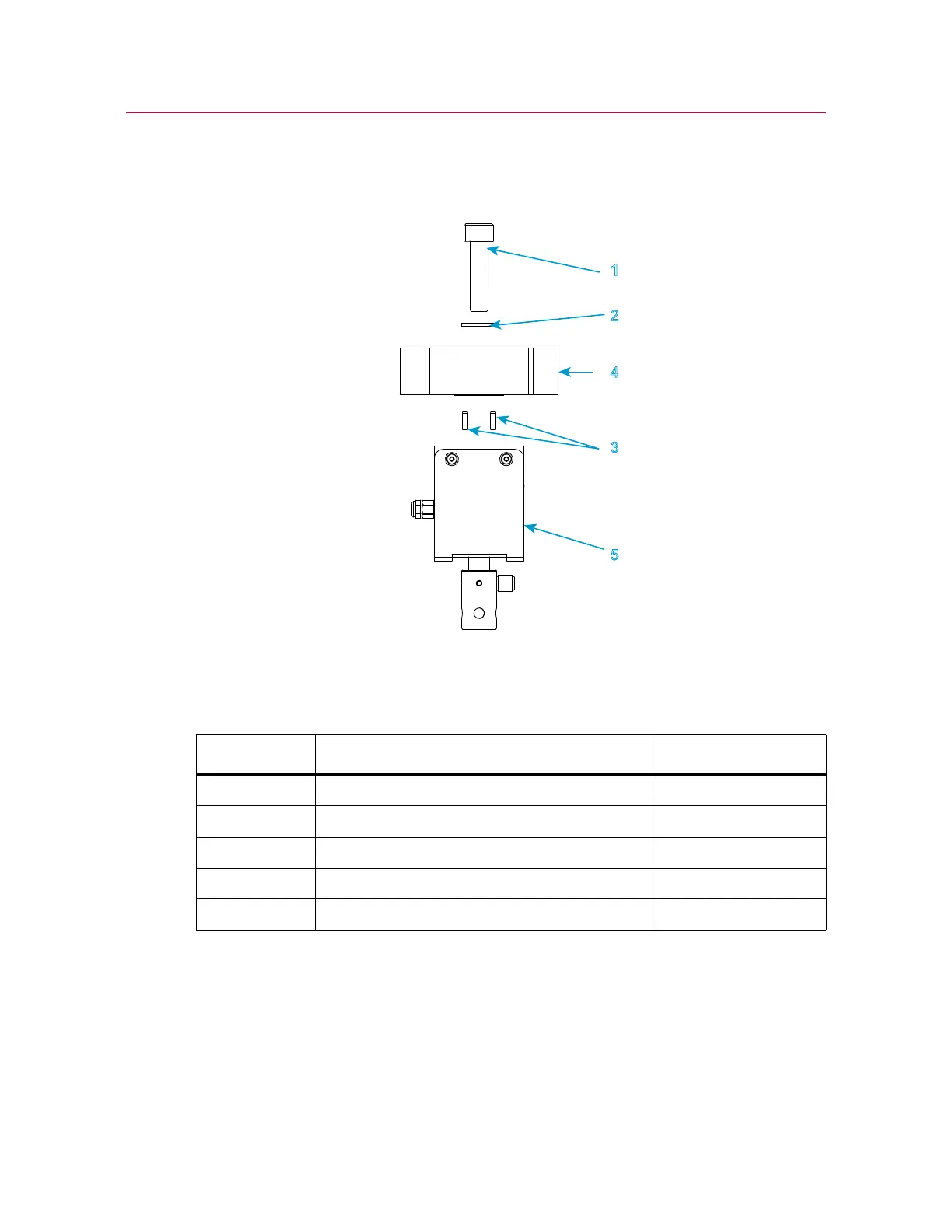

Figure 16. Install a 2519 series load cell - capacities 1 kN through 5 kN
Legend for Figure 16
1. Refer to Figure 16 on page 78 and its associated legend.
2. Collect together the correct mounting screw, washer and anti-rotation pins for your
combination of load frame and load cell.
3. Assemble the mounting screw and washer, as shown in the figure.
1
2
3
4
5
2kN - 5kN
Label Component Part number
1 Screw, M10 x 40 201V57
2M10 load washer 610J9
3 Load cell anti-rotation pin 705K84
4Crosshead
5 2519 load cell - 2 kN through 5 kN
