Instron 6800 Series User Manual

Chapter: Installation
40 M10-17410-EN
Rear panel connections detail

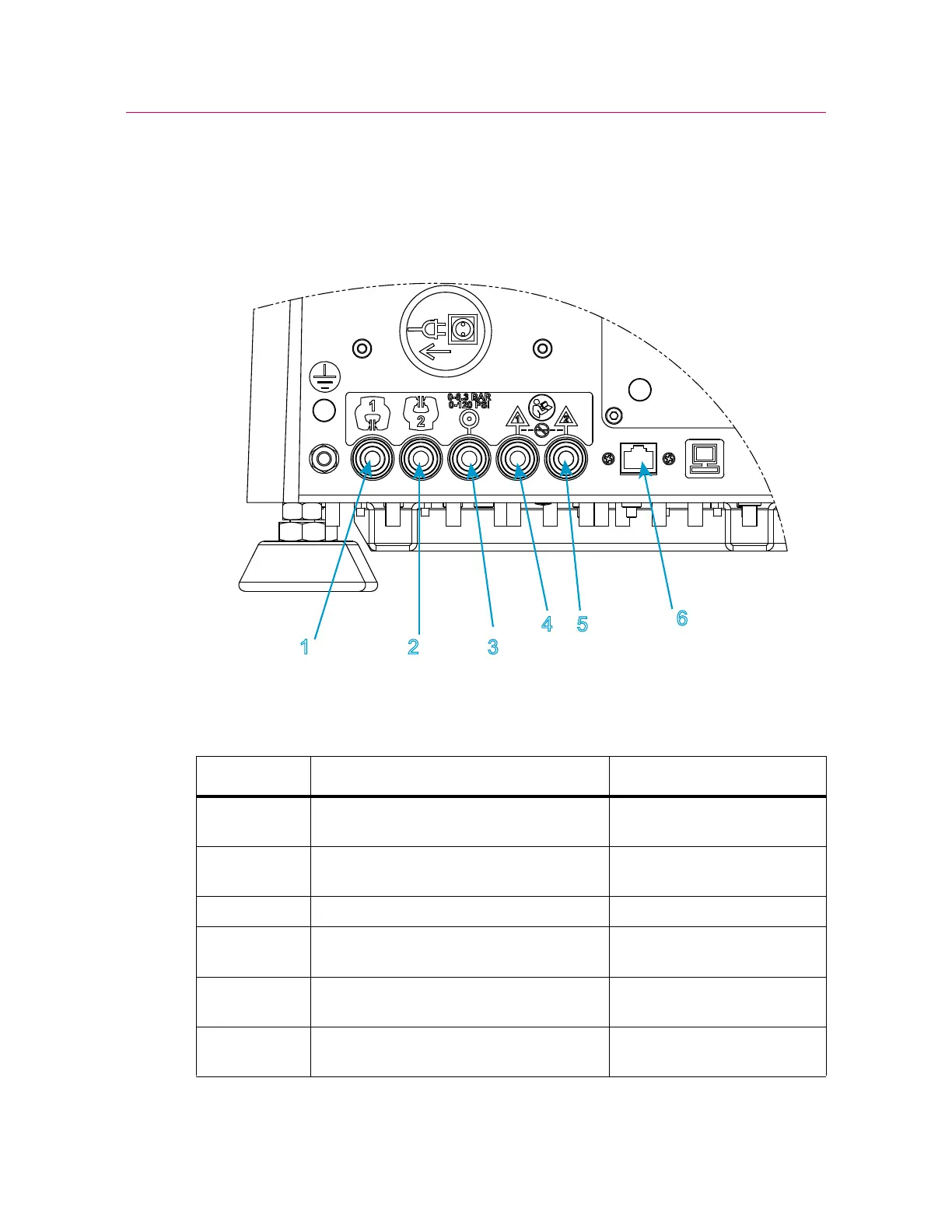

Figure 6. Rear panel connections detail
Legend for Figure 6
5
4
3
2
1
6
Label Component More detail
1 (optional) Pneumatic grips - grip 1 connector
(typically upper grip)
2 (optional) Pneumatic grips - grip 2 connector
(typically lower grip)
3 (optional) Pneumatic grips - air inlet connector 120 psi (8.3 bar) maximum
4 (optional) Pneumatic grips - air exhaust connector Install air muffler or connect
to exhaust system
5 (optional) Pneumatic grips - air exhaust connector Install air muffler or connect
to exhaust system
6Ethernet (to Bluehill
®
Operator Dashboard)
or separate computer
