Integra DTC-9.8 User Manual

26

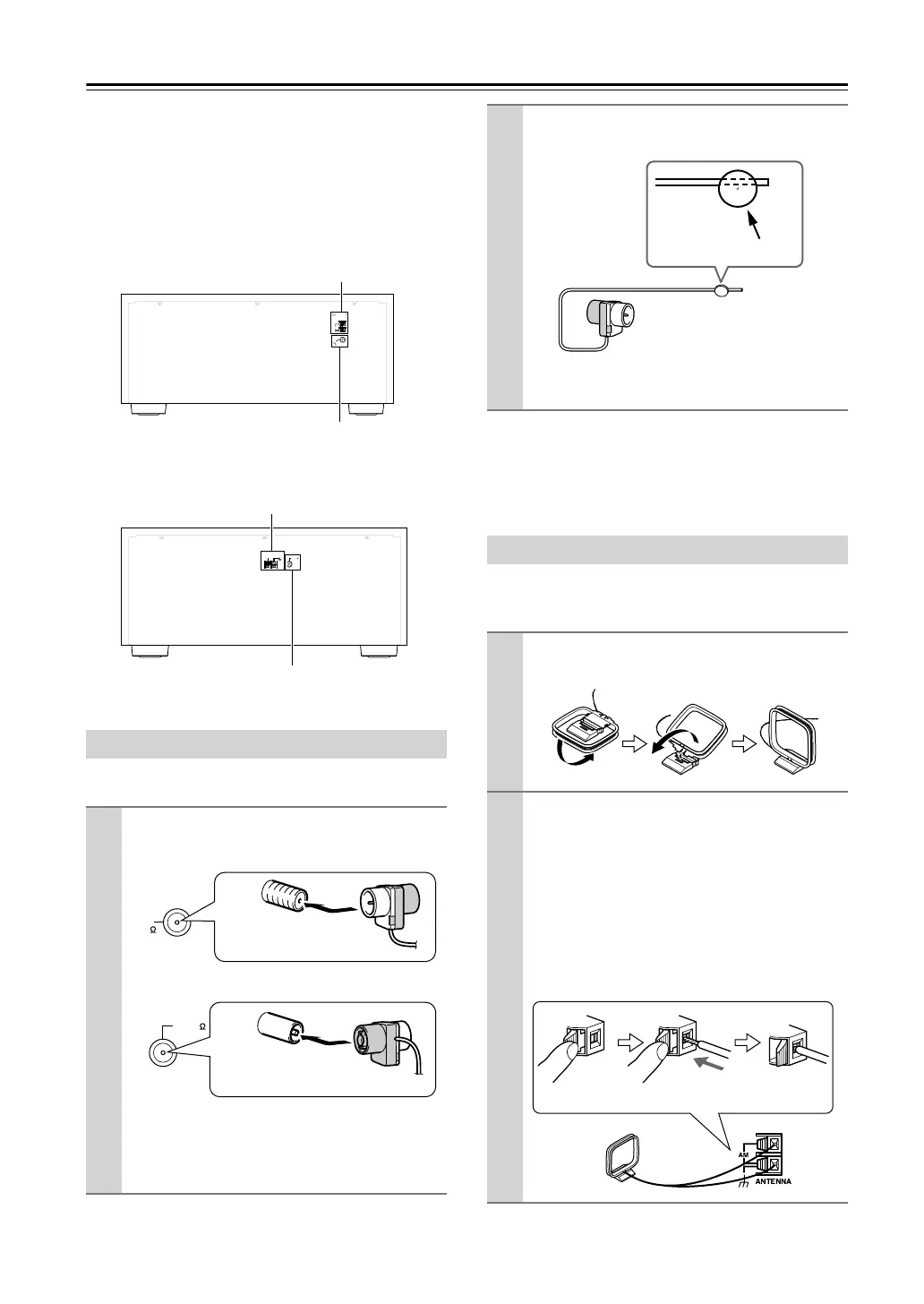

Connecting Antennas
This section explains how to connect the supplied indoor
FM antenna and AM loop antenna, and how to connect
commercially available outdoor FM and AM antennas.
The AV controller won’t pick up any radio signals
without any antenna connected, so you must connect the
antenna to use the tuner.
■ North American Model
■ Other Models
The supplied indoor FM antenna is for indoor use only.
If you cannot achieve good reception with the supplied
indoor FM antenna, try a commercially available out-
door FM antenna instead (see page 27).
The supplied indoor AM loop antenna is for indoor use
only.
Connecting the Indoor FM Antenna
1
Attach the FM antenna, as shown.
■ North American Model
■ Other Models
Once your AV controller is ready for use, you’ll
need to tune into an FM radio station and adjust
the position of the FM antenna to achieve the best
possible reception.
AM
ANTENNA
FM
75
HD RADIO
AM antenna push terminals
FM antenna jack
AM
ANTENNA
FM75
AM antenna push terminals
FM antenna jack
FM
75
Insert the plug fully
into the jack.
FM75
Insert the plug fully
into the jack.
2
Use thumbtacks or something similar to
fix the FM antenna into position.
Caution: Be careful that you don’t injure yourself
when using thumbtacks.
Connecting the AM Loop Antenna
1
Assemble the AM loop antenna, inserting
the tabs into the base, as shown.
2
Connect both wires of the AM loop
antenna to the AM push terminals, as
shown.
(The antenna’s wires are not polarity sensitive, so
they can be connected either way around).
Make sure that the wires are attached securely and
that the push terminals are gripping the bare
wires, not the insulation.
■ North American Model
Thumbtacks, etc.
Push Insert wire Release
DTC-9.8En.book Page 26 Friday, February 15, 2008 1:23 PM
